Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP304-S
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
5 Pieces
Price :
Discussion
Payment Terms :
T/T, L/C at sight
Supply Ability :
According To Clients' Request
Delivery Time :
5 - 60 work days
Packaging Details :
Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap
Standard :
ASTM A403, ASME SA403
Material Grade :
WP304-S
Technics :
Forged, Casting, Pushing, Butt Weld, Welding
Connection :
Welding, Female, Male
NDT :
ET,UT,PT,HT
Description

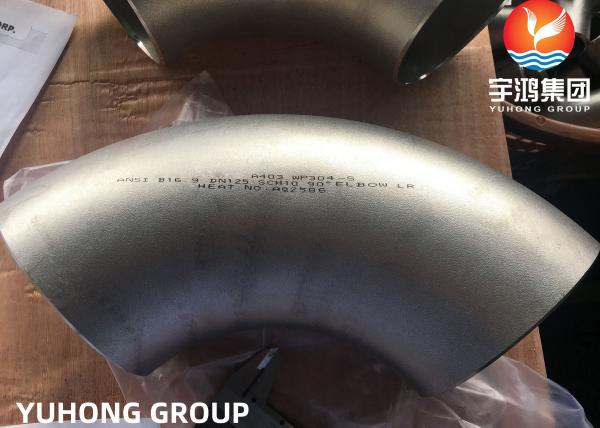

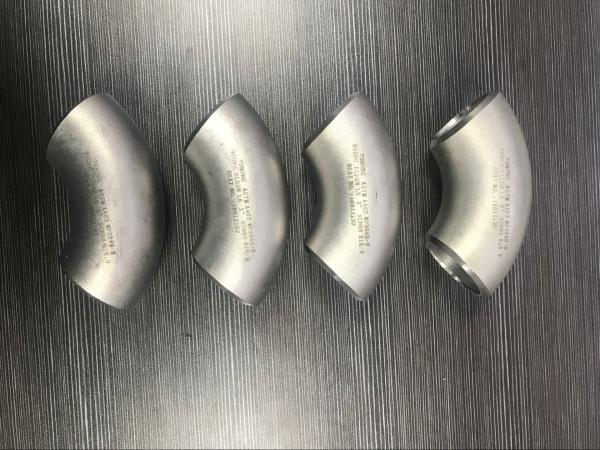

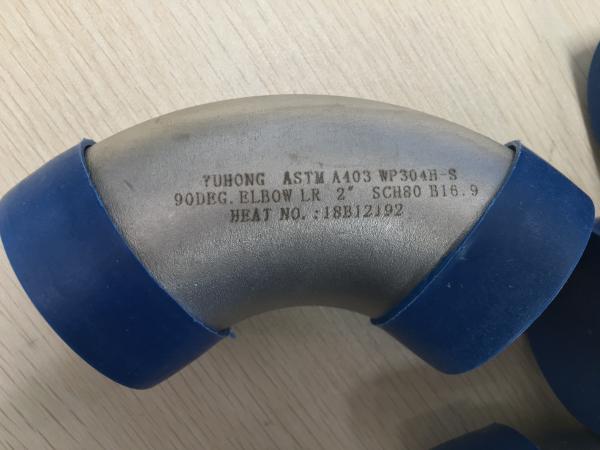

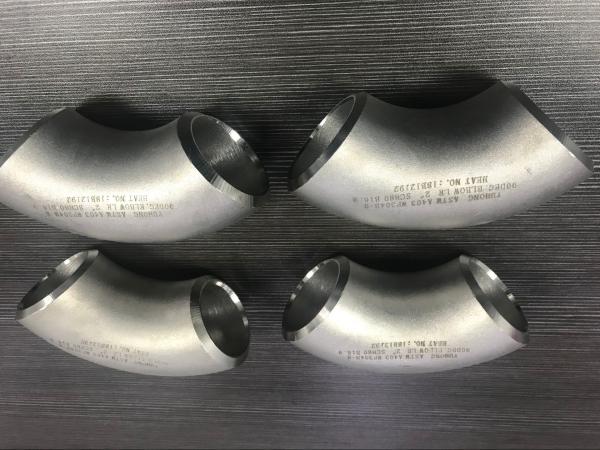

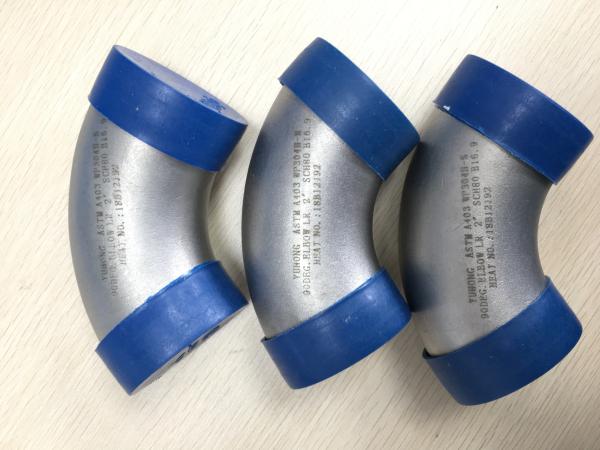

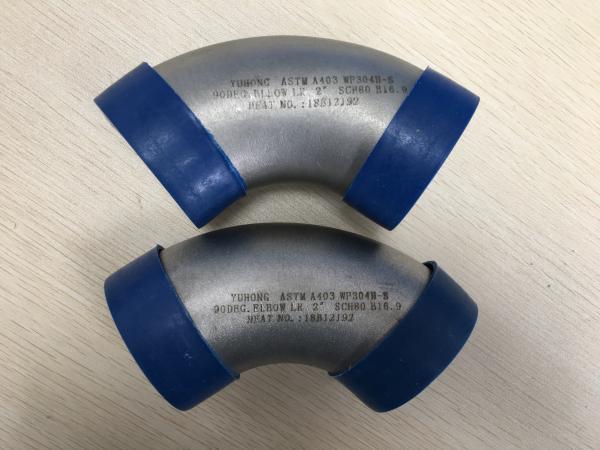

ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows

The ASTM A403 specification covers Austenitic Stainless Steel Pipe Fittings used in engineering industry, energy conversion plants, etc. These A403 fittings are manufactured in seamless and welded type.

SS304 is the most basic stainless steel with higher chromium and low carbon content. The low carbon content restricts carbide precipitation during welding as well as minimizes its susceptibility to intergranular corrosion. SS304L is an extra low-carbon variation of SS304 with a 0.03% maximum carbon content that eliminates carbide precipitation due to welding. Both SS304 and SS304L have excellent resistance to a wide range of atmospheric, chemical and petrochemical, and food industry corrosions. Generally, they are used in applications with the maximum temperature of 1650°F [900°C] showing good oxidation resistance.

Equivalent Grades:

Type UNS JIS EN/DIN EN/BS EN/NF ISO GB GOST
304 S30400 SUS304 X5CrNi18-10 304S31 Z7CN18.09 11 0Cr18Ni9 08KH18H10

Chemical Composition:

Steel Grade Chemical Composition
C (Max) Si (Max) Mn (Max) P (Max) S (Max) Ni Cr N
304 0.08 0.75 2 0.045 0.03 8–10.5 18–20 0.1

Mechanical Properties:

Grades Tensile Strength ksi(Mpa), min. Yield Strength, ksi(Mpa) Elongation, % Hardness, Rockwell
SS304 85 (586) 35 (241) 55 B80

Physical Properties:

Density Melting Range Specific Heat Magnetic Permeability Electric Resistivity
g/cm3 °F KJ/KG*K Oersteds Microhm-cm
8.03 2550- 2650 0.5 ≤1.02 72

ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows
