Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Specifications
Brand Name :
YUHONG
Model Number :
F304/304L , F316L , F310S, F316Ti, F321/321H , F347 , F317
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C, T/T
Delivery Time :
7DAYS
Packaging Details :
PLYWOOD CASE,PALLET
STANDARS :
ASTM ASME A182
SIZE :
1/2"NB To 4"NB
END :
Socket Weld (S/W) & Screwed (SCRD) - NPT, BSP, BSPT
CLASS :
3000 LBS, 6000 LBS, 9000 LBS
Description

Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11

Pipe plugs are used in the closing of the ends of various hydraulic or pneumatic pipes or tubes. Plugs are essential devices used in the plumbing apparatus of both industrial and domestic water supply lines, machinery and so on. They are also for removal of air blocks on water pump lines.

Forged Steel Bush : A-182/A105 S/W & SCRD,B16.11, Class 3000, Class 6000, Class 9000,Socket Weld (S/W) & screwed (SCRD)

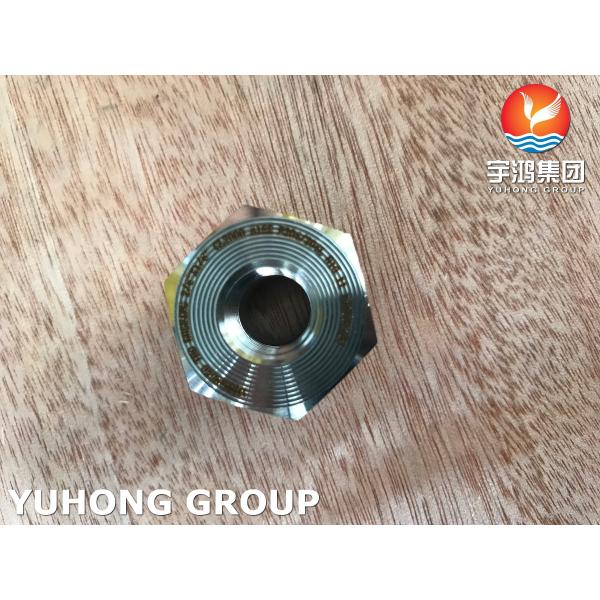

Hex Bush

We provide our clients’ precision designed range of hex bush fittings that are known for their tolerance for temperature and durability. These are assured of quality, and the standing testimony for the same is their mill test certificate as per EN 10204 / 3.1B. We are offering these hex bushes at market leading prices.

Specifications:

  • Size: 1/2"NB to 4"NB IN

  • Class: 3000 LBS, 6000 LBS, 9000 LBS

  • Type: Socket Weld (S/W) & screwed (SCRD) - NPT, BSP, BSPT

Standards:

  • ASTM / ASME SB 564 / 160 / 472

  • UNS 10276 (HASTELLOY C 276 bushing)

  • UNS 2200 (NICKEL 200 bushing)

  • UNS 2201 (NICKEL 201 bushing)

  • UNS 4400 (MONEL 400 bushing)

  • UNS 8020 (ALLOY 20 bushing)

  • UNS 8825 (INCONEL 825 bushing)

  • UNS 6600 (INCONEL 600 bushing)

  • UNS 6601 (INCONEL 601 bushing)

  • UNS 6625 (INCONEL 625 bushing)

Material:

Material Standards
Copper alloy bush ASTM / ASME SB 61 / 62 / 151 / 152 C 70600 (CU -NI- 90/10) - Cupro Nickel bushing C 71500 (CU -NI- 70/30) - Copper Nickel bushing UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
Duplex steel bush ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61
Stainless steel bush ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Alloy steel bush ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Carbon steel bush ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Low temperature carbon steel bush A350 LF3/A350 LF2

Product Pictures and Drawings
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Square Head Plug Hexagon Plug Round Head Plug Hexagon Bushing
Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11 Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
Flush Bushing 　
Dimensional Data
　
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 1 3/8 1 5/8 1 5/8 1 3/4 1 3/4 2 2 2 2 1/2 2 3/4 2 3/4 3
B 13/32 17/32 11/16 27/32 1 1/16 1 5/16 1 11/16 1 29/32 2 3/8 2 7/8 3 1/2 4 1/2
C* 7/16 5/8 11/16 7/8 1 1/16 1 7/16 1 13/16 2 2 1/2 3 3 3/4 4 5/8
D 1/4 1/4 5/16 5/16 3/8 3/8 9/16 5/8 11/16 3/4 13/16 1 1/4
E 7/16 1/2 9/16 11/16 3/4 27/32 7/8 15/16 1 1 1/4 1 9/16 1 21/32
F 9/32 3/8 7/16 9/16 5/8 13/16 15/16 1 1/8 1 5/16 1 1/2 1 11/16 2 1/2
G 1/4 1/4 5/16 3/8 7/16 1/2 9/16 5/8 11/16 3/4 13/16 1 1/4
H 3/8 7/16 1/2 9/16 5/8 3/4 13/16 13/16 7/8 1 1/16 1 1/8 1 3/8
J* 5/8 11/16 7/8 1 1/16 1 7/16 1 13/16 2 2 1/2 3 3 3/4 4 5/8
K 3/16 3/16 3/16 1/4 1/4 3/8 3/8 3/8 1/2 13/16 1 1/4
L 1/2 9/16 11/16 3/4 27/32 7/8 15/16 1 1 1/4 1 9/16 1 21/32
M 7/16 1/2 9/16 5/8 3/4 13/16 13/16 7/8 1 1/16 1 1/8 1 1/4
N 3/8 7/16 1/2 9/16 5/8 3/4 13/16 13/16 7/8 1 1/16 1 1/8 1 1/4
*Dimension J for Hex Head Bushing and dimension C for Hex Head Plug are the same.

Stainless Steel Fitting Hex Plug,Bushing,F304,F316L, CLS 3000 ,ASME B16.11
