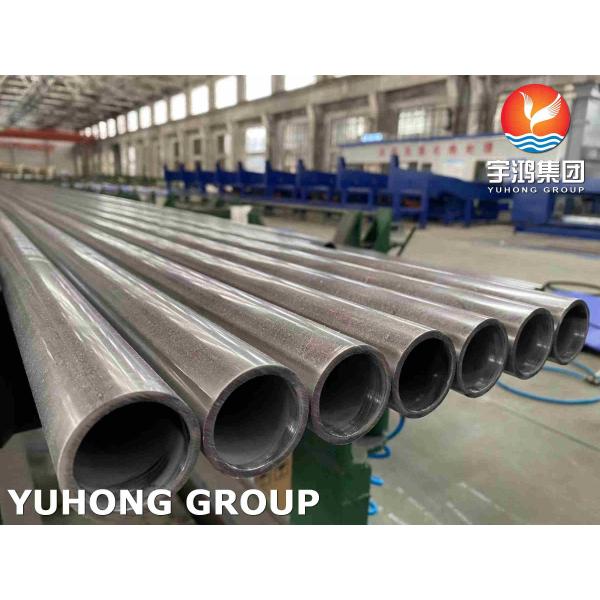

Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA179/ASTM A179
Certification :
ISO9001-2008, API 5L, API 5CT
Place of Origin :
China
MOQ :
1000 kgs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 tons per month
Delivery Time :
Depends on quantity

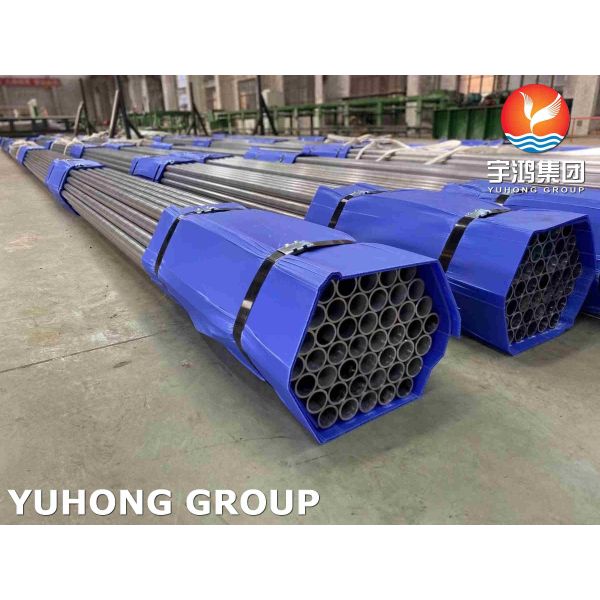

Packaging Details :
PLYWOOD CASE,BUNDLE,WOVEN BAG
Specification :
ASME SA179/ASTM A179
Grade :
A179
O.D :
3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2)
Type :
Seamless
Description

Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser


ASTM A179, identical with ASME SA-179, is the standard specification covering minimum-wall-thickness cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

This specification cover tubes 1/8″ to 3″ [3.2 mm to 76.2 mm], inclusive, in outside diameter. The ASTM A179 tubes shall be made by the seamless process and shall be cold drawn; and they shall be heat treated after the final cold draw pass at a temperature of 1200°F [650°C] or higher. These seamless tubes are usually called as low-carbon steel tubes, heat exchanger tubes, boiler tubes, etc.

The steel materials will likewise experience hardness test, straightening test, flaring test, rib test, and hydrostatic test.

Because of A179 grade’s temperature withstanding capabilities, it is applied to steel pipe of tubular heat exchanger, condensers and similar heat transfer equipment. Our ASTM A179 seamless tubes are used in sugar mills & distilleries, pumps and petrochemicals, cement and construction industries and steel plants.

ASTM A179 Chemical Composition

ElementA/SA 179
C0.06-0.18
Mn0.27-0.63
P≤0.035 max
S≤0.035 max


ASTM A179 / ASME SA179 Tubes Equivalent Grades

GradeASTM A179 / ASME SA179
UNS NoK01200
Old BritishBSCFS 320
GermanNo1629 / 17175
Number1.0309 / 1.0305
Belgian629
Japanese JISD3563 / G3461
FrenchA49-215
Italian5462


Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser

Carbon Steel Seamless Tube ASME SA179 Heat Exchanger Condenser

ASTM A179 Material Properties

Carbon Steel SA179 Tubes are used widely due to its excellent tensile strength and yield strength. The properties of the SA179 grade is highly unmatched, some of them are good corrosion resistance, oxidation resistance, pitting resistance, resistance to acid, crevice corrosion resistance and excellent strength.

ElementA/SA 179
Tensile Strength KSI (MPa)47 (325)
Yield Strength KSI (MPa)47 (325)
Elongation min. %35



The dimensional tolerances of ASTM A179,ASME SA179 Seamless Tubes
Tolerances of Wall Thickness

Outside
Diameter,
in. [mm]		Wall Thickness, %
0.095[2.4] and UnderOver 0.095 to 0.150
[2.4 to 3.8], incl		Over 0.150 to 0.180
[3.8 to 4.6], incl		Over 0.180,[4.6]
OverUnderOverUnderOverUnderOverUnder
Seamless, Cold-Finished Tubes
OverUnder
1 1 ⁄ 2 [38.1] and under200
Over 1 1 ⁄ 2 [38.1]220


Tolerances of Outside Diameter

Outside Diameter,in. [mm]Permissible Variations, in. [mm]
OverUnder
Under 1 [25.4]0.004 [0.1]0.004 [0.1]
1 to 1 1 ⁄ 2 [25.4 to 38.1], incl0.006 [0.15]0.006 [0.15]
Over 1 1 ⁄ 2 to 2 [38.1 to 50.8], excl0.008 [0.2]0.008 [0.2]
2 to 2 1 ⁄ 2 [50.8 to 63.5], excl0.010 [0.25]0.010 [0.25]
2 1 ⁄ 2 to 3 [63.5 to 76.2], excl0.012 [0.3]0.012 [0.3]
3 to 4 [76.2 to 101.6], incl0.015 [0.38]0.015 [0.38]
Over 4 to 7 1 ⁄ 2 [101.6 to 190.5], incl0.015 [0.38]0.025 [0.64]
Over 7 1 ⁄ 2 to 9 [190.5 to 228.6], incl0.015 [0.38]0.045 [1.14]


Tolerances of Length

Method of
Manufacture		Outside
Diameter,
in. [mm]		Cut Length,in. [mm]
OverUnder
Seamless, cold-finishedUnder 2 [50.8]1 ⁄ 8 [3]0 [0]
2 [50.8] and over3 ⁄ 16 [5]0 [0]
2 [50.8] and over3 ⁄ 16 [5]0 [0]



Applications

-Pharmaceutical Equipment
-Chemical Equipment
-Sea Water Equipment
-Heat Exchangers
-Condensers
-Pulp and Paper Industry
-Off-Shore Oil Drilling Companies
-Power Generation
-Petrochemicals
-Gas Processing
-Specialty Chemicals
-Pharmaceuticals
