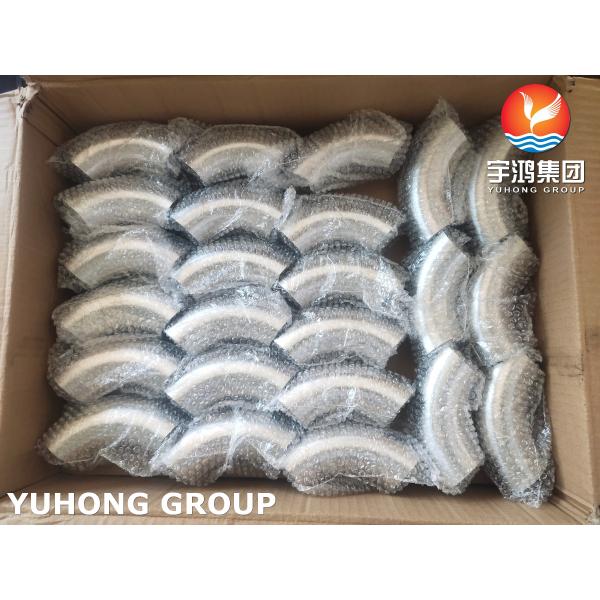

ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
ASTM A403 WP304 90 Degree LR Stainless Steel Elbow Polished 3A PMI Test
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP304
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100 KGS
Price :
NEGOTIABLE
Payment Terms :
T/T, L/C
Supply Ability :
1500 Tons Per Month
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
Stainless Steel
Shape :
Equal, Reducing, Round
Connection :
Welding, Female, Male
Technics :
Forged, Casting, Pushing, Butt weld, Welding
Size :
Customized Size, 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200
Standard :
ANSI, DIN, ASME, JIS, GB, etc.
Product name :
Black Painting Fittings, Press Fitting, Vaccum Pipe, Butt Welding Pipe Fitting, Stainless Steel Pipe Fittings
Application :
Gas and Oil Pipes, Petroleum Gas, Joining Pipe Lines
Thickness :
STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm)
Description

ASTM A403 WP304 90 DEG. LR Stainless Steel Elbow Polished 3A PMI Test

YUHONG is an ISO certified manufacturer and supplier of ASTM A403 WP304 pipe fittings. We offer SS 304L butt weld elbows with a high nickel content, typically between 8% and 10.5% (by weight) and a high amount of chromium. Tees such as our SS UNS S30409 are required and are very popular in industrial applications due to their versatility and excellent solderability.

We are also a producer of Stainless Steel 304L Butt Welded Pipe Fittings including ASTM A403 SS 304 Pipe Elbow, 1.4301 Tee, ASME B16.9 Stainless Steel 304 Cross, they are produced in a variety of gauges, designs, sizes and grades, each fitting has Serve the needs of an industry. Our MSS SP 43 SS 304 short pipe ends are resistant to atmospheric corrosion and can be used for general purposes such as sealing pipe ends and preventing any contamination of the internal fluid. Also, we offer various SS 304 pipe fittings in China at affordable prices, such as SS WP304L Tee, WP304H SS End Cap, SS 304 Reducer.

ASTM A403 WP304 Stainless Steel Pipe Fittings Specification

Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Stainless Steel 304 Pipe Fittings Manufacturing Standards

ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ASME SA403 304/304L Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4301 S30409 – – – – –

ASTM A403 STAINLESS STEEL 304/304L BUTTWELD ELBOWS

Nominal
Pipe
Size		 Outside
Diameter		 90° Elbows 45° Elbows 180° Returns
(inches)
Long Radius
Short Radius
Long Radius
Long Radius
(mm)
(inches)
Center to Face
(inches)
Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Center
(inches)
Back to face
(inches)
1/2
21.3
0.840
1 1/2
–
5/8
2
1 7/8
3/4
26.7
1.050
1 1/8
–
7/16
2 1/4
1 11/16
1
33.4
1.315
1 1/2
1
7/8
3
2 3/16
1 1/4
42.2
1.660
1 7/8
1 1/4
1
3 3/4
2 3/4
1 1/2
48.3
1.900
2 1/4
1 1/2
1 1/8
3
4 1/2
3 1/4
2
60.3
2.375
3
2
1 3/8
4
6
4 3/16
2 1/2
73.0
2.875
3 3/4
2 1/2
1 3/4
5
7 1/2
5 3/16
3
88.9
3.500
4 1/2
3
2
6
9
6 1/4
3 1/2
101.6
4.000
5 1/4
3 1/2
2 1/4
7
10 1/2
7 1/4
4
114.3
4.500
6
4
2 1/2
8
12
8 1/4
5
141.3
5.563
7 1/2
5
3 1/8
10
15
10 5/16
6
168.3
6.625
9
6
3 3/4
12
18
12 5/16
8
219.1
8.625
12
8
5
12
24
16 5/16
10
273.1
10.750
15
10
6 1/4
15
30
20 3/8
12
323.9
12.750
18
12
7 1/2
18
36
24 3/8
