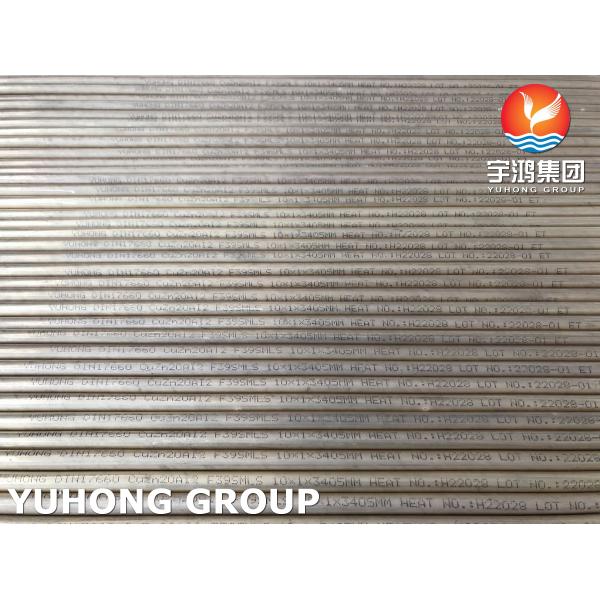

DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger
Specifications
Brand Name :
YUHONG
Model Number :
DIN17660 CuZn20Al2 F39
Certification :
ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS
Place of Origin :
China
MOQ :
1000KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Specification :
DIN17660
Grade :
CuZn20Al2
Surface :
Polished
Test :
ET, HT
Finish :
Cold Drawn
Application :
Air Condition Or Refrigerator,Water Tube,water Pipe,Oil Cooler Pipe,Water Heater
Description

DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger

YUHONG is one of the biggest copper alloy tubes manufacturer, supplier and exporter in China. We are supplying copper alloy tubes to various industries around the world.

Our copper alloy tube is widely used in the surface of condenser, heat exchanger, and evaporators. They offer high strength, excellent corrosion resistance, and good creep resistance at elevated temperatures.

We are glad to supply your needs whatever the sizes, shapes, dimensions you want for copper alloy tubes. YUHONG will help you with all your tubes necessities. Contact one of our experts today to find out how we can meet your tubing needs.

DIN17660 CuZn20Al2 F39 Chemical Composition

Chemical Composition
Elements Composition, %
Cu, incl. Ag 76.0-79.0
Sn –
Al 1.8-2.5
Ni, incl. Co –
Pb 0.07 max
Fe 0.06 max
Zn Balance
Mn 0.02-0.06

Equivalent Material

Material Designation Corresponding Material Symbol
GB/T8890 ASTM B111 BS2871 JIS H3300 DIN1785
Aluminums Brass HAL77-2 C68700 CZ110 C6870 CuZn20Al2

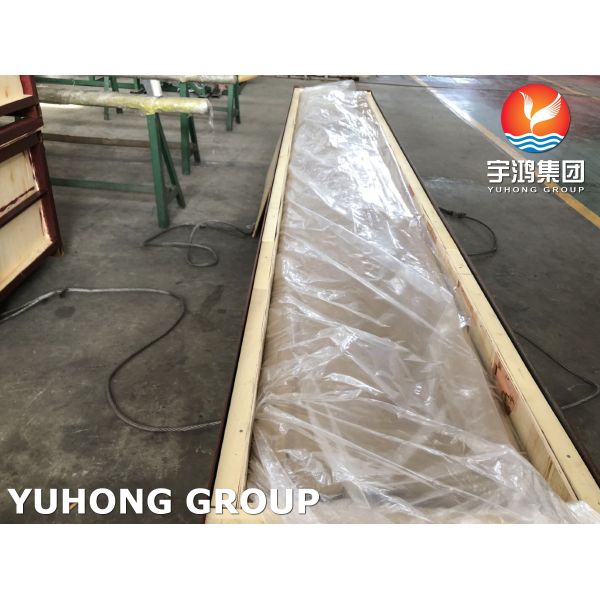

Packing

DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger

DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger

Tensile Requirements

Grade Temper Designation Tensile Strength Yield Strength
Standard Former Min. ksi Min. ksi
CuZn20Al2 O61 Annealed 50 18

DIN17660 CuZn20Al2 F39 Seamless Copper Alloy Tube For Heat Exchanger

DIN17660 CuZn20Al2 F39 Mechanical Properties

Grade Temper Designation Annealing temperature, °C Tensile Strength, min Yield Strength, min HV
Code Name ksi Mpa ksi Mpa
CuZn20Al2 O61 Annealed above 650 50 345 18 125 150

Nondestructive Testing

Each tube shall be subjected to the eddy-current test in Eddy-Current Test.
Tubes may be tested in the final drawn, annealed, or heat-treated temper or in the drawn temper before the final anneal or heat treatment unless otherwise agreed upon by the supplier and the purchaser. The purchaser may specify either of the tests in Hydrostatic Test or Pneumatic Test as an alternative to the eddy-current test.

Eddy-Current Test—Each tube shall be passed through an eddy-current testing unit adjusted to provide information on the suitability of the tube for the intended application. Testing shall follow the procedures of Practice E243.

Hydrostatic Test—Each tube shall stand, without showing evidence of leakage, an internal hydrostatic pressure sufficient to subject the material to a fiber stress of 7000 psi [48 MPa] as determined by the following equation for thin hollow cylinders under tension. The tube need not be tested at a hydrostatic pressure of over 1000 psi [7.0 MPa] unless so specified.

P = hydrostatic pressure, psig [MPa];
t = thickness of tube wall, in. [mm];
D = outside diameter of the tube, in. [mm]; and
S = allowable stress of the material, psi [MPa].

Applications

-Heat exchanger and evaporators
-Distiller tubing
-Condenser

-Gland Steam Condensers

-Steam Ejector

-Turbine Oil Coolers
