Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182 F316L Stainless Steel Socket Weld Union
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100pcs
Payment Terms :
L/C, T/T
Delivery Time :
5days
Packaging Details :
PLYWOOD CASE, PALLET
Product Name :
Socket Weld Pipe Union
Standard :
ASTM A182, ASME SA182
Dimension :
ASME/ANSI B16.11, BS3799, MSS-SP-83
Material :
A182 F304, F304L, F316L, F321, F347H, F310S, F904L, F51, F53, F55, F44, F60
Size :
1/8" to 4"
Classs :
3000#,6000#,9000#
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
High Light :
ASTM A182 F316L Stainless Steel Forged Pipe Union, Stainless Steel Socket Weld Pipe Fittings
Description

MSS SP-83 ASTM A182 F316L Socket Weld Pipe Union Stainless Steel Forged Fittings​

A stainless steel socket weld pipe union is a type of pipe fitting used for connecting and disconnecting two sections of pipes or tubes together. It consists of three components: a male end, a female end, and a nut. The male and female ends have socket weld connections, which means they are inserted into the pipes and welded to create a strong and leak-proof joint. The nut is used to secure and tighten the union.

This type of pipe union is commonly made of stainless steel to provide excellent corrosion resistance and durability. It is often used in applications where disassembly and reassembly of the piping system may be necessary, such as maintenance and repair work.

No.

Material

Size

Sch. & Class

Specification

Item

1.

Forged Stainless Steel

15 NB
To
100 NB

3000, 6000
&
9000 LBS

A-182
S/W & SCRD
ANSI B16.11

  • Elbow - 90o & 45o

  • Tee - Equal & Reducing

  • Union

  • Cross

  • Coupling - Full & Half

  • Socket Reducing

  • CAP

  • Plug-Hex & Square

  • Nipples (Hex/Reducing)

  • Sokolet & Weldolet

  • Bush

  • Fasteners

2.

Forged Alloy Steel

15 NB
To
100 NB

3000, 6000
&
9000 LBS

A-182
S/W & SCRD
ANSI B16.11

3.

Forged Carbon Steel

15 NB
To
100 NB

3000, 6000
&
9000 LBS

A-105
S/W & SCRD
ANSI B16.11

Stainless Steel in Grade

ASTM A 182 F

304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 410, 420, 440C Etc

Alloy Steel in Grade

ASTM A 182

F5, F9, F11, F12, F21, F22 & F91.

Othe rGrade Available

A-350 LF2

Other Forms

Compression Fitting / Instrumentation / Hydraulic Fitting & Also As Per Drawing

Other Material like Non Ferrous Metals & Nickel Base Alloys

Fittings are also available in Copper (Dow), Brass, Aluminium, Cupro Nickel (90/10, 70/30), Hastelloy (C-276), Nickel (200, 201, 205), Monel (K400, K500), Inconel (600, 800), Alloy 20, Duplex, Phosphorus Bronze (90/10, PB2) Etc. as per ASTM, ASME, BS, IS & DIN Standard

Test Certificate

  • Manufacturer Test Certificate / Under Third Party Inspection .

  • with Excise Gate Pass to avail Modvat benefit.

Product Pictures and Drawings

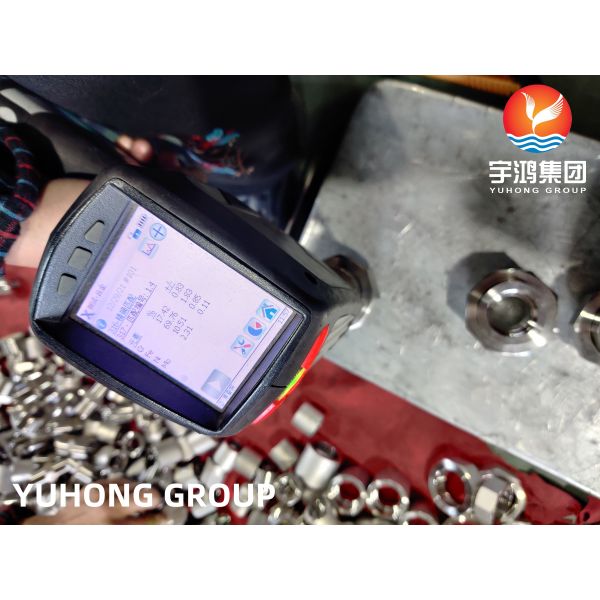

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

90 Degree Elbow (SW)

45 Degree Elbow (SW)

Tee (SW)

Lateral (SW)

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union

Cross (SW)

Socket Weld Fittings

Socket Weld Dimensional Data

1/8" to 4" class 3000 socket weld, 1/8" to 4" class 6000 socket weld, 1/2" to 2 " class 9000 socket weld

Class 3000

1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

2

2 1/2

3

4

A

7/8

7/8

31/32

1 1/8

1 5/16

1 1/2

1 3/4

2

2 3/8

3

3 3/8

4 3/16

B

29/32

29/32

1 1/16

1 5/16

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/16

4 5/16

5 3/4

C

0.420

0.555

0.690

0.855

1.065

1.330

1.675

1.915

2.406

2.906

3.535

4.545

D

3/8

3/8

3/8

3/8

1/2

1/2

1/2

1/2

5/8

5/8

5/8

3/4

E

7/16

7/16

17/32

5/8

3/4

7/8

1 1/16

1 1/4

1 1/2

1 5/8

2 1/4

2 5/8

Class 6000

1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

2

2 1/2

3

4

A

-

-

-

1 5/16

1 1/2

1 3/4

2

2 3/8

2 1/2

3 1/4

3 3/4

4 1/2

B

-

-

-

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/32

4

4 3/4

6

C

-

-

-

0.855

1.065

1.330

1.675

1.915

2.406

2.906

3.535

4.545

D

-

-

-

3/8

1/2

1/2

1/2

1/2

5/8

5/8

5/8

3/4

E

-

-

-

3/4

7/8

1 1/16

1 1/4

1 1/2

1 5/8

2 1/4

2 1/2

2 3/4

Class 9000

　

1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

2

2 1/2

3

4

A

-

-

-

1 1/2

1 3/4

2

2 3/8

2 1/2

3

-

-

-

B

-

-

-

1 27/32

2 7/32

2 1/2

3 1/32

3 11/32

3 11/16

-

-

-

C

-

-

-

0.855

1.065

1.330

1.675

1.915

2.406

-

-

-

D

-

-

-

3/8

1/2

1/2

1/2

1/2

5/8

-

-

-

E

-

-

-

1

1 1/8

1 1/4

1 3/8

1 1/2

2 1/8

-

-

-

ASME/ANSI B16.11 - 2001 - Forged Steel Fittings, Socket-Welding and Threaded

This Standard covers ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded.

ASME/ANSI B16.25 - 1997 - Buttwelding Ends

The Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding. It includes requirements for welding bevels, for external and internal shaping of heavy-wall components, and for preparation of internal ends (including dimensions and tolerances). Coverage includes preparation for joints with the following.

(a) no backing rings;

(b) split or non continuous backing rings;

(c) solid or continuous backing rings;

(d) consumable insert rings;

(e) gas tungsten are welding (GTAW) of the root pass. Details of preparation for any backing ring must be specified in ordering the component.

ASME/ANSI B16.5 - 1996 - Pipe Flanges and Flanged Fittings

The ASME B16.5 - 1996 Pipe Flanges and Flange Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and methods of designating openings for pipe flanges and flanged fittings.

The standard includes flanges with rating class designations 150, 300, 400, 600, 900, 1500, and 2500 in sizes NPS 1/2 through NPS 24, with requirements given in both metric and U.S units. The Standard is limited to flanges and flanged fittings made from cast or forged materials, and blind flanges and certain reducing flanges made from cast, forged, or plate materials. Also included in this Standard are requirements and recommendations regarding flange bolting, flange gaskets, and flange joints.

ASME/ANSI B16.9 - 2001 - Factory-Made Wrought Steel Buttwelding Fittings

This Standard covers overall dimensions, tolerances, ratings, testing, and markings for wrought factory-made buttwelding fittings in sizes NPS 1/2 through 48 (DN 15 through 1200).

Applications

  1. high pressures

  2. Oil and Gas Industry

  3. Pharmaceutical and Food Processing

  4. Power Generation

  5. Water and Wastewater Treatment

  6. HVAC (Heating, Ventilation, and Air Conditioning)

MSS SP-83 Forged Pipe Fitting ASTM A182 F316L Stainless Steel Socket Weld Union
