Specifications
Brand Name :
YUHONG
Model Number :
Stainless Steel 304, 304L, 316L, etc.
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100KGS
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Packed by Plywood Case
Product Name :
Stainless Steel Capillary Tube
Standard :
JIS, JIS，AiSi，ASTM，GB，DIN EN
Material :
Stainless Steel (304, 304L, 316L, etc.)
O.D. :
0.05" AND UP
W.T. :
0.02" TO 0.4"
Length :
customized, cut
Type :
Seamless
Technique :
Cold Drawn
Surface Treatment :
Polished, BA
Description

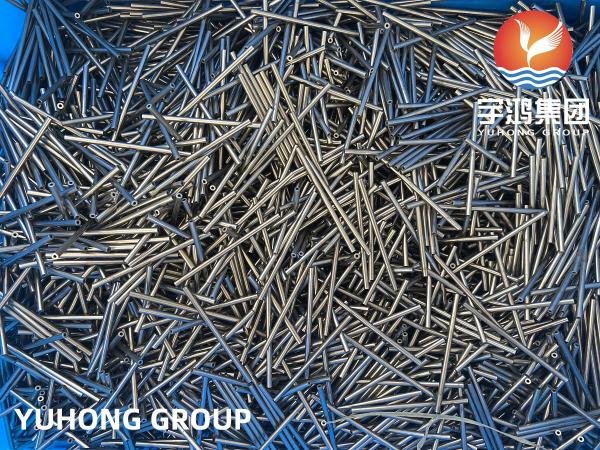

BA Stainless Steel Capillary Tube TP304 / 304L / 316L Small Diameter Needle Tube

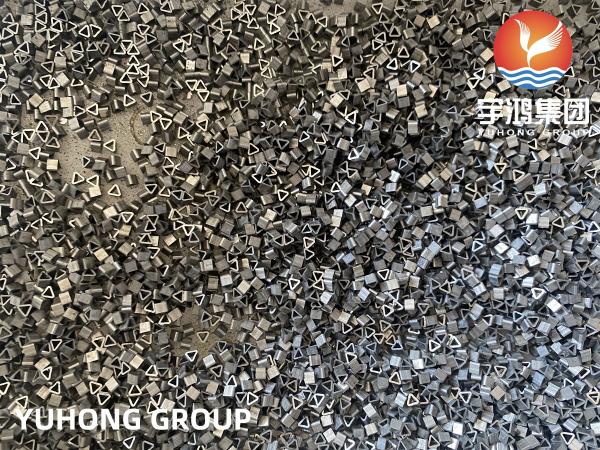

YUHONG GROUP manufacture small diameter, thin wall tubing in Stainless Steel, Nickel, Titanium and Zirconium alloys, in a whole range of sizes and cross section shapes to suit your requirements. Both our seamless and welded products come both as straight lengths of tubing or in coils.

Specifications

Porduct Name Stainless steel capillary tube
Size O.D 0.05" AND UP, Wall thickness 0.02" TO 0.4"
Standard ASTM A554, A249, A269 and A270, A312
Material 201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%), 301(Ni 5%), 304 (Ni 8%, Cr 18%),
316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430
Application heat exchanger;aviation and aerospace industey;phamceutical industry;insteru mentation tubes;Autoparts etc.
Product seamless pipes, ERW pipe, DSAW pipes.
Standard ASME B36.10M, API, ANSI,etc

Material

 stainless steel: A312 TP304, A312 TP 304L, A312 TP316, A312 TP 316L,
A312 TP 321,UNS32750,etc
Carbon steel: A106 GR B, A53 GR B
Alloy steel: A335 P11, A335 P 22, A335 P 12, A335 P 5, A335 P 9,
A335 P 91,etc
Pipeline steel: API 5L GR B, API 5L X42, API 5L X46, API 5L X65,
API 5L X70,etc
O.D. 3/8" -100" , DN15-DN1200, 4-2500mm
W.T. SCH5-SCHXXS (0.5-150mm)
Length 5.8m, 6m, 11.8m, 12m, or as required

Surface

 Annealing, pickling, polishing, bright, sand blast,hair line, brush, satin,
snow sand, titanium, etc
Price term Ex-Work, FOB, CFR, CIF, etc
Payment term TT, L/C

Export to

 Singapore, Morocco, Thailand,Australia,Viet Nam, Italy, India, Dubai,
South Africa, South Korea, France, Spain, Turkey, etc

Application

 Stainless steel pipe widely used in petroleum,chemical industry,electric power,
boiler,high temperature resistant,low temperature resistant,corrosion resistant.
The size of the pipes can be made according to clients requirements.

Contacts

 If you have any questions, please feel free to contact me.
we are sure your inquiry or requirements will get prompt attention.

Chemical Composition
GRADE C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤
304 0.07 0.75 2.00 0.045 0.03 8.00-10.50 17.50-19.50
304L 0.03 0.75 2.00 0.045 0.03 8.00-12.00 17.50-19.50
310S 0.08 1.50 2.00 0.045 0.03 19.00-22.00 24.00-26.00
316 0.08 0.75 2.00 0.045 0.03 10.00-14.00 16.00-18.00
316L 0.03 0.75 2.00 0.045 0.03 10.00-14.00 16.00-18.00
321 0.08 0.75 2.00 0.045 0.03 9.00-12.00 17.00-19.00

Testing

We can provide the following types of testing for thin wall precision tubes:

1. Corrosion test

2. Flaring test

3. Flattening test

4. Hardness test

5. Mechanical and chemical tests

6. Microstructure test

7. Eddy Current and ultrasonic tests (on request)

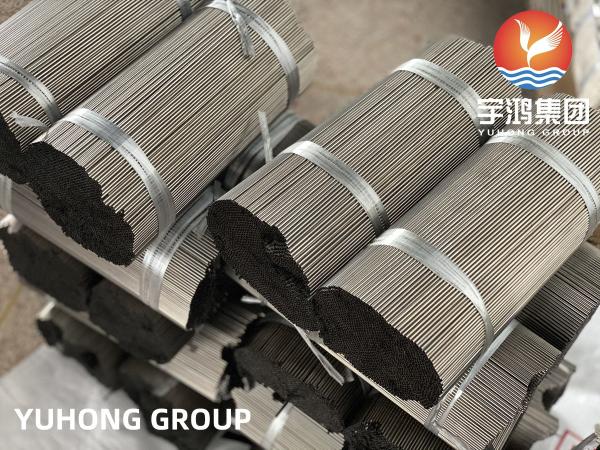

General Packing

Bright Annealed Tube , TP304 / TP304L / TP316L Stainless Steel Needle Capillary Tube

Documents
To the patrons' documents provided are raw material test report, heat treatment chart, quality assurance plan, material traceability report, MTC as per EN 10204/3.1B, radiography test report etc.

Applications

High precision capillary tube is used in many Instrumentation systems which include the use of:

1. HPLC tubing

2. UPLC tubing

3. Coriolis tubing

4. Remote seal pressure transmitter tubing

5. Sheath tubing

6. Hydraulic tubing

Some applications require long lengths of stainless steel coil tubing where joints (welds or fittings) are not acceptable over long runs. However, there are many critical capillary applications which require short lengths of tubing.

Other high precision devices which use this type of capillary tubing include:

1. Manometers

2. Flow Meters

3. Pressure meters & sensors

4. Differential pressure transducers

5. Pressure, level, flow and temperature transmitters

6. Bourdon-tube gauges

7. Coriolis flow meters

Bright Annealed Tube , TP304 / TP304L / TP316L Stainless Steel Needle Capillary Tube
