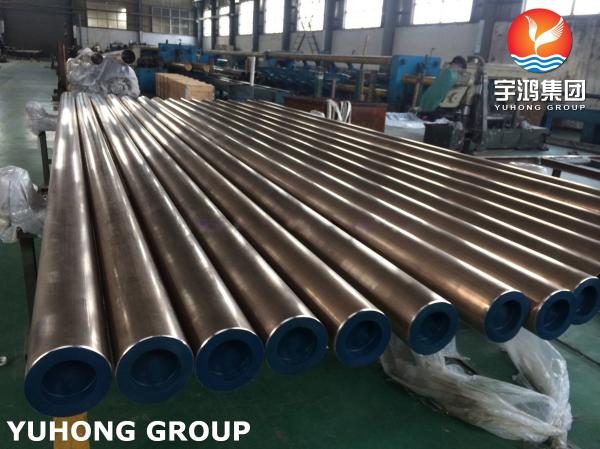

DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Offshore
DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Offshore
Specifications
Brand Name :
YUHONG
Model Number :
DIN 86019 CuNi10Fe1.6Mn 2.1972
Certification :
ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS.
Place of Origin :
CHINA
MOQ :
500KGS
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
BS 2871 CN102 / EN 12449 / EN 1652
Mterial :
DIN 86019 CuNi10Fe1.6Mn 2.1972
O.D. :
DN15 - DN600
W.T. :
Schedule 10 - Schedule XXS
Length :
can custom
End :
Plain End, Beveled End
Testing :
ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing.
Technology :
Hot Rolled, Cold Rolled
Application :
Heat exchanger, Condenser, Seawater Pipeline, Shipbuilding, etc.
High Light :
Copper Nickel Seamless Pipe, DIN 86019 CuNi10Fe1.6Mn Seamless Pipe
Description

DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe

We are one of the biggest projects pipeline products supplier in China , Our products contain steel pipe/tube,fittings, flanges. With development more than 25 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

Compositions

DIN 86019
CuNi10Fe1.6Mn
2.1972		 EEMUA 234
UNS 7060X		 BS 2871
CN 102		 ASTM B466
C70600		 JIS H 3300
C7060		 MIL-T-16420K
C70600
Ni% 9.0-11.0 10.0-11.0 10.0-11.0 9.0-11.0 9.0-11.0 9.0-11.0
Fe% 1.5-1.8 1.5-2.0 1.0-2.0 1.0-1.8 1.0-1.8 1.0-1.8
Mn% 0.5-1.0 0.5-1.0 0.5-1.0 Max.1.0 0.2-1.0 Max1.0
C% Max.0.05 Max.0.05 Max.0.05 Max.0.05 Max.0.05
Pb% Max.0.03 Max.0.01 Max.0.01 Max.0.02 Max.0.05 Max.0.02
S% Max.0.015 Max.0.02 Max.0.05 Max.0.02 Max.0.02
P% Max.0.02 Max.0.02 Max.0.02 Max.0.02
Zn% Max.0.15 Max.0.20 Max.0.50 Max.0.50 Max.0.05
Zr% Max.0.03
Others Max.0.30 Max.0.30 Max.0.30
Cu% Balance Balance Balance Balance Cu+Ni
+Fe+Mn
Min.99.5		 Min.86.5

Material Designation Corresponding Material Symbol
GB/T8890 ASTM B111 BS2871 JIS H3300 DIN 1785
Copper-Nickel BFe10-1-1 C70600 Pipe CN102 C7060 CuNi10Fe1Mn
BFe30-1-1 C71500 Pipe CN107 C7150 CuNi30Mn1Fe
(BFe30-2-2) C71640 CN108 C7164 CuNi30Fe2Mn2
(BFe5-1.5-0.5) C70400 – – –
B7 – – – –
Aluminium Brass HAL77-2 C68700 Tube CZ110 C6870 CuZn20Al2
Admiralty Brass HSn70-1 C44300 Tube CZ111 C4430 CuZn28Sn1
Boric Brass Hsn70-18 – – – –
HSn70-1 AB – – – –
Arsenical Brass H68A – CZ126 – –
Brass Tubes H65/H63 C28000/C27200 CZ108 C2800/C2700 CuZn36/CuZn37

Applications

Copper-nickel alloys are widely used for marine applications due to their excellent resistance to seawater corrosion, good fabricability, and their effectiveness in the lowering macrofouling levels. They are also used in non-marine applications due to their durability, appearance and antimicrobial properties.

Shipbuilding and Repair Copper-nickel can be used for seawater cooling, sanitary, fire fighting, inert gas, hydraulic/pneumatic/chiller systems, cargo tank heating coils and feed lines. It is illustrated by an interactive schematic of ship systems.
Offshore Oil and Gas Platforms and Processing Copper-nickel alloy pipeline systems are used on offshore, oil & gas platforms, floating production, storage and offloading vessels (FPSOs).
Seawater System Design Managing corrosion with minimal maintenance and a high degree of reliability are major concerns in seawater system design, using copper nickel alloy tubes.
Seawater System Components Copper-nickel alloy materials of condenser and heat exchanger tubes, tubesheets and fittings are essential components of high-quality seawater system design.

DIN 86019 CuNi10Fe1.6Mn Copper Nickel Alloy Seamless Pipe for Offshore
