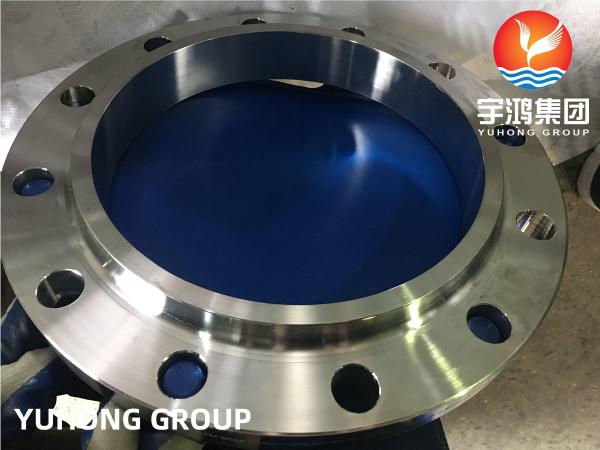

ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B564 Hastelloy C276 Slip On RF Flange
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
PLYWOODEN CASE
Product Name :
Nickel Alloy Flange
Standard :
ASTM B564 / ASME SB564
Material Grade :
Hastelloy C276 Flange, UNS (N10276), DIN (2.4819)
Dimensions :
ANSI/ASTM B16.5, B16.7 SERIES A&B, B16.48
Size :
1/2" NB to 48" NB
Flange Type :
Weld Neck, Slip On, Long Weldneck, Blind
Flange Face :
Plate Face (FF), Rasied Face (RF), Ring Type Joint (RTJ)
Class/Pressure :
150#,300#,600#,900#,1500#,2500#,PN6,PN10,PN16,PN25,PN40,PN64,etc.
High Light :
ASME B16.5 Forged C276 Nickel Alloy Flange, ASTM B564 UNS N10276 Slip on Flange
Application :
Chemical Processing, Petrochemical Industry, Oil and Gas Industry
Description

ASTM B564 UNS N10276 Hastelloy C276 Nickel Alloy Flange SORF Flange

Alloy C276, also known as Hastelloy C276 /UNS N10276, is a nickel-molybdenum-chromium alloy that is widely used for its excellent corrosion resistance and high strength at elevated temperatures. This material is a reliable choice for industries dealing with corrosive substances and extreme conditions. such as chemical processing, oil and gas, and pollution control applications, ensuring durability in harsh environments.

Equivalent Grades for ASTM B564 Hastelloy C276 Nickel Alloy Forged Flange

STANDARD UNS WNR. AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 - NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ

ASTM B564 Hastelloy C276 Nickel Alloy Forged Flange Chemical Composition

Hastelloy C276 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.010 max 15.00 – 17.00 1.00 max 0.08 max 4.00 – 7.00 0.04 max 0.03 max 2.5 max 14.50 – 16.50

ASTM B564 Hastelloy C276 Nickel Alloy Forged Flange Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 52,000 , MPa – 355 Psi – 1,15,000 , MPa – 790 40 %

Manufacturing Process

  • Flanges are hot or cold forged to ensure structural integrity.

  • Post-forging heat treatment (solution annealing) to optimize corrosion resistance and mechanical properties.

What are the characteristics of Hastelloy C276?

1. Excellent corrosion resistance in reducing environments

2. Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

3. High nickel and molybdenum contents providing good corrosion resistance in reducing environments

4. Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints

5. Resistance to localized corrosion such as pitting and stress-corrosion cracking

6. One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

Applications

  • Industries:

    • Chemical & Petrochemical: Reactors, pipelines, acid storage.

    • Oil & Gas: Offshore platforms, sour gas environments (H₂S).

    • Marine: Seawater handling systems.

    • Pharmaceuticals: Aggressive chemical processing.

    • Pollution Control: Flue gas desulfurization (FGD) systems.

  • Common Uses:

    • Connecting pipes in corrosive or high-temperature systems.

    • Critical junctions in chlorine, bleach, and sulfuric acid plants.

ASTM B564 UNS N10276 / Hastelloy C276 Pipe Flange Nickel Alloy Slip On Flange
