Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
Specifications
Brand Name :
YUHONG
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
ACCORDING TO CUSTOMER'S REQUEST
Delivery Time :
According to the quantity
Packaging Details :
Plywood case
Size :
0.008-0.203 Inch
Nominal Wall :
0.002-0.015 Inch
Application :
Industry,Chemical,Medical...
Condition :
hard-drawn temper condition
Material :
TP304, TP316L...
Standard :
ASTM A908; ISO 9626; GB18457
Description

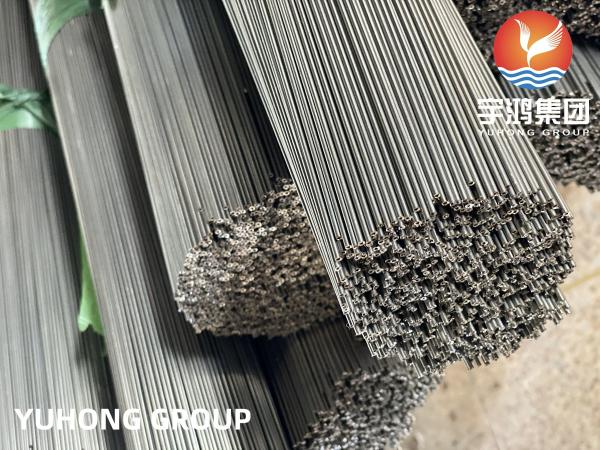

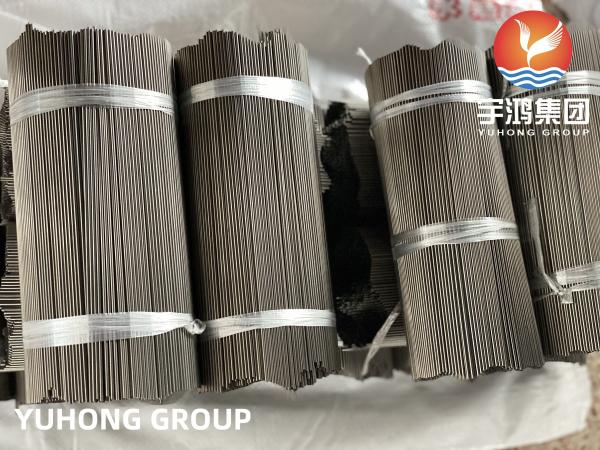

Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application

Stainless steel capillary and semi-finished needle tubes are essential components in various industries due to their unique properties and applications. These tubes are characterized by their small diameter and precise manufacturing, making them suitable for a range of uses including medical devices, fluid delivery systems, and laboratory equipment.

Stainless steel, known for its resistance to corrosion and durability, ensures that these tubes maintain their integrity in demanding environments. The capillary tubes are typically used for applications requiring fine fluid control, while semi-finished needle tubes serve as versatile components in further manufacturing processes.

Both types of tubes can be customized in terms of length, diameter, and wall thickness to meet specific requirements. Their precision manufacturing allows for high performance in tasks that demand accuracy, such as in injections or fluid analysis. Overall, both stainless steel capillary and semi-finished needle tubes are vital in delivering reliability and efficiency across multiple sectors.

Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application

Medical Tubes

Tubes for a wide range of medical applications

Yuhong's program of medical tubes covers stainless steel tubing for cardiovascular and diagnostic applications, dental and surgical instruments as well as medical tubes for reconstruction, trauma and spinal use. Our in-house production of medical tubes allows for tailor-made sizes in small batches.

Medical tube materials (other grades can be offered on request)

Tolerance of SS Needle Tube

Gauge No. OD, in. OD Tolerance, in.(±) Nominal Wall, in. Wall Tolerance, in. (±)

6

 0.203 0.001 0.015 0.001
7 0.180 0.001 0.015 0.001
8 0.165 0.001 0.015 0.001
9 0.148 0.001 0.015 0.001
10 0.134 0.001 0.014 0.001
11 0.120 0.001 0.013 0.001
12 0.109 0.001 0.012 0.001
13 0.095 0.001 0.012 0.001
14 0.083 0.001 0.010 0.001
15 0.072 0.0005 0.009 0.0005
16 0.065 0.0005 0.009 0.0005
17 0.059 0.0005 0.009 0.0005
18 0.050 0.0005 0.0085 0.0005
19 0.0425 0.0005 0.00775 0.0005
20 0.0355 +0.0005/-0.000 0.00625 +0.000/-0.0005
21 0.032 +0.0005/-0.000 0.00625 +0.000/-0.0005
22 0.028 +0.0005/-0.000 0.00625 +0.000/-0.0005
23 0.025 +0.0005/-0.000 0.00625 +0.000/-0.0005
24 0.022 +0.0005/-0.000 0.00525 +0.000/-0.0005
25 0.020 +0.0005/-0.000 0.00525 +0.000/-0.0005
26 0.018 +0.0005/-0.000 0.00425 +0.000/-0.0005
27 0.016 +0.0005/-0.000 0.00425 +0.000/-0.0005
28 0.014 +0.0005/-0.000 0.0035 0.00025
29 0.013 +0.0005/-0.000 0.003 0.00025
30 0.012 +0.0005/-0.000 0.003 0.00025
31 0.010 +0.0005/-0.000 0.0025 0.00025
32 0.009 +0.0005/-0.000 0.0025 0.00025
33 0.008 +0.0005/-0.000 0.002 0.00025

Chemical Composition of SS Needle Tube

Grade UNS C Mn P S Si Cr Ni
TP304 S30400 0.08 max. 2.00 max. 0.040 max. 0.030 max. 0.75 max. 18.0-20.0 8.0-11.0

Tensile Requirements of SS Needle Tube

Grade Tensile strength, ksi (MPa)
TP304 150-200(1030-1370)

Stainless Steel Capillary Tube Semi-finished Needle Tube for Medical Application
