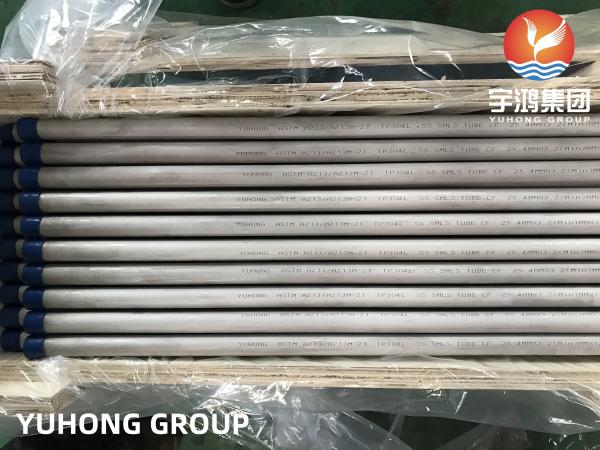

ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 TP304L Stainless Steel Boiler Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Delivery Time :
20-80 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Application :
Boiler
Standard :
ASTM, JIS, AiSi, ASTM, GB, DIN, EN
Material :
304L
Technique :
Cold Rolled, Hot Rolled
Description

ASTM A213 TP304L Stainless Steel Boiler Tube Available

We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

ATM A213 TP 304L Stainless Steel Tubes Mechanical Properties

Material Tensile Stress (MPa) min Yield Stress 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
AISI 304L 485 170 40 92 201

ATM A213 TP 304L Stainless Steel Tubes Chemical Composition

Type C Mn Si P S Cr Mo Ni N
SS 304L minimum - - - - - 18 - 8 -
maximum 0.03 2 0.75 0.045 0.03 20 12 0.1

Equivalent Grade

SS Grade UNS No Old British EN / Euronorm Swedish SS Japanese JIS GOST
BS En No Name
304L S30403 304S31 58E 1.4306 / 1.4307 X5CrNi18-10 2332 SUS 304L 03Х18Н11

ASTM A213 TP304L STAINLESS STEEL TUBE TOLERANCES

Diameter Tolerance ASTM A213 TP304L Tube

NPS ASTM A213 TP304L Tube OD Tolerance
+ –
inch mm inch mm
1/8~1 1 /2 1/64(0.015) 0.4 1/32(0.031) 0.8
> 1 1 /2~4 1/32(0.031) 0.8 1/32(0.031) 0.8
> 4~8 1/16(0.062) 1.6 1/32(0.031) 0.8
> 8~18 3/32(0.093) 2.4 1/32(0.031) 0.8
> 18~26 1/8(0.125) 3.2 1/32(0.031) 0.8
> 26~34 5/32(0.156) 4 1/32(0.031) 0.8
> 34~48 3/16(0.187) 4.8 1/32(0.031) 0.8

Wall Thickness Tolerance ASTM A213 TP304L Tubes

NPS ASTM A213 TP304L Tube Tolerance, %
+ –
1/8-2 1 /2 20 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15 12.5
≥ 20, seamless 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15 12.5

Specification

ATM A213 TP 304L Stainless Steel Tubes Specifications
Specifications

ASTM A/ASME SA213/A249/A269
Dimensions ASTM, ASME and API
SS 304L Tubes Size 1/8″NB TO 30″NB IN
Thickness 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Tubes
Form Round, Square, Rectangular, Hydraulic Etc
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

ASTM A213 TP 304L Stainless Tubes Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers

Certificate

  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc
  • ASTM A213 TP304L Stainless Steel Seamless Boiler Tube, NDE ECT Available
