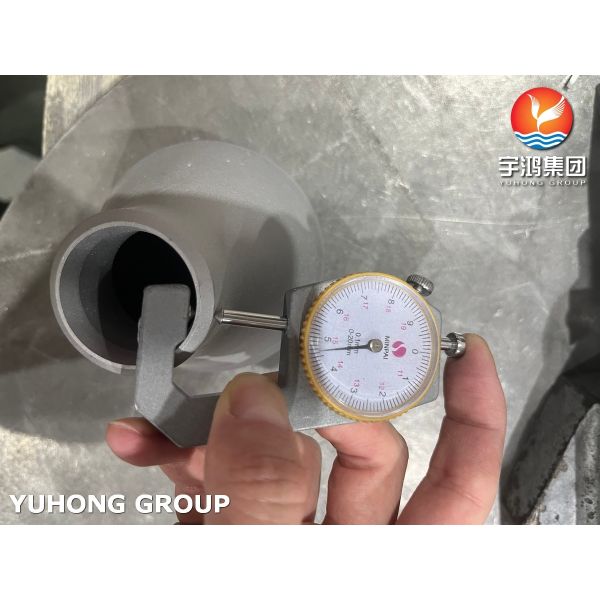

Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A815 S32205
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case Or Iron Case
Standard :
ASTM A815
Material :
UNS S32205
O.D :
1/2" NB - 48" NB
Packing :
Ply Wooden Case
Dimension Standard :
ANSI B16.9
W.T :
SCH10S - SCH XXS
Description

Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer

Duplex stainless steel A815 UNS S32205 is an extremely corrosion resistant, work hardenable alloy. Its microstructure consists of a mixture of austenite and ferrite phases. Therefore, duplex stainless steels combine the properties of both austenitic and ferritic stainless steels.

Duplex Steel S32205 welded pipe fittings will last longer even when exposed to harsh environmental conditions such as salt water or high pressure/temperature as their strength levels are higher than other materials such as carbon steel or aluminum alloys. The addition of molybdenum provides excellent protection against corrosive elements such as salt water or acidic media that can damage other materials over time.

UNS S32205 and UNS S31803 are both duplex stainless steel grades, but there are some differences between them. UNS S32205 has a higher nitrogen content and slightly higher chromium and molybdenum contents, which improves corrosion resistance and strength compared to UNS S31803. UNS S32205 has a higher minimum yield strength and is generally considered to be more resistant to stress corrosion cracking.

Duplex Steel S32205 Chemical Properties

Grade

C

Mn

Si

P

S

Cr

Mo

Ni

N

Fe

S32205

0.030 max

2.00 max

1.00 max

0.030 max

0.020 max

21.0 – 23.0

2.50 - 3.50

4.50 – 6.50

0.8 – 0.20

63.54 min

Equivalent Grades of S32205

STANDARD UNS WERKSTOFF NR.
Duplex 2205 S32205 1.4462

Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer

Duplex Steel Buttweld Fitting ASTM A815 S32205 Concentric Reducer

Duplex Steel S31803/S32205 Pipe Fittings Specification

Standard

ASTM A815, ASME SA815

Dimensions

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size

1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type

Seamless / Welded / Fabricated

Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Thickness

Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Form

Elbow, Reducers, Tee, Caps, Cross, Bend, Stub Ends, Nipples etc.

Duplex S32205 Pipe Fittings Mechanical Properties

Density

Melting Point

Tensile Strength

Yield Strength (0.2%Offset)

Elongation

7.8 g/cm3

1350 °C (2460 °F)

Psi – 80000 , MPa – 550

Psi – 116000 , MPa – 800

15 %

Applications:

Due to its excellent corrosion resistance, Duplex UNS S32205 butt weld fittings can be used in a variety of industries and applications where other materials may not be suitable. These include petrochemical plants, seawater systems, oil and gas production platforms, desalination plants, chemical processing units, pharmaceutical plants, etc. It is also widely used in pipelines that transport sour gas or crude oil because of its excellent resistance to sour gas corrosion. In addition, these fittings can be used in pressure vessel components that require high strength and durability, such as pumps and valves.
