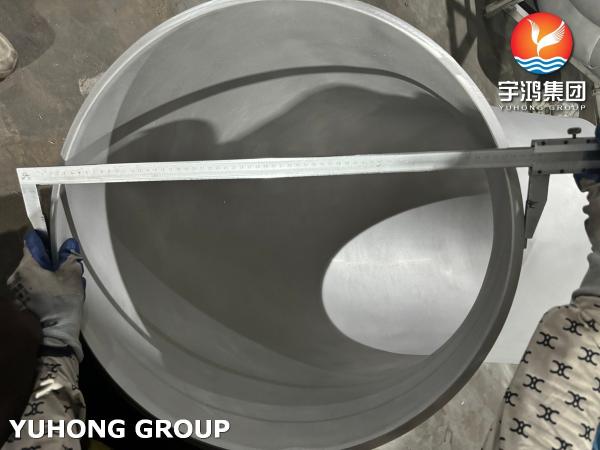

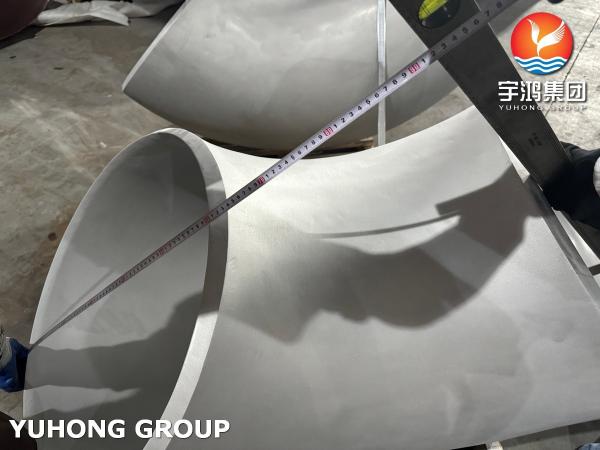

ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
ASTM A403 WP304/304L Stainless Steel Buttweld Fittings 24 90 Degree SR Elbow
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP304L Stainless Steel 90deg. Elbow
Certification :
ABS , BV, LR , DNV, GL , KR, TUV , ISO
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS

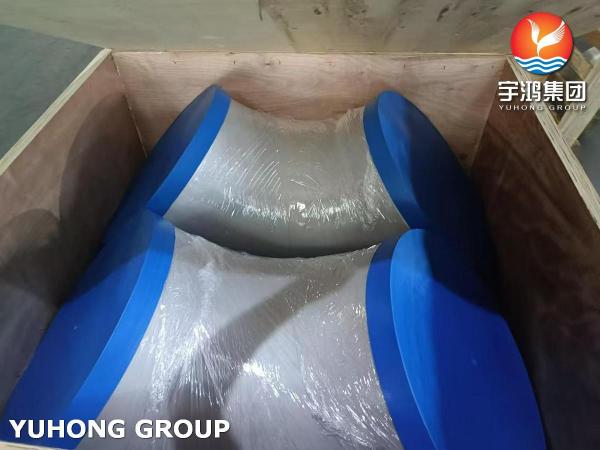

Packaging Details :
PLY-WOODEN CASE OR PALLET
Product Name :
Stainless Steel Pipe Fittings
Standard :
ASTM A403 / ASME SA403
Material :
Stainless Steel 316L, 304, 304L, 304H, 321H, 310S, etc.
O.D. :
1/2" To 48"
W.T. :
Schedule 10S - Schedule XXS
Form :
45deg. 90deg. 180deg. LR/SR Elbow
Type :
Seamless, Welded
High Light :
ASTM A403 WP304L Stainless Steel Pipe Fittings, Stainless Steel 304L Reducing Tee
Description

B16.9 Butt Weld Pipe Fittings , ASTM A403 WP304/304L-S Stainless Steel 90 Degree SR Elbow


90-degree short radius elbow is a type of pipe fitting that allows for a 90-degree change in direction within a piping system, with a shorter radius compared to long radius elbows. The short radius design means the centerline radius (the distance from the center of the pipe to the center of the bend) is equal to the pipe diameter. This fitting is designed to provide a sharp turn in pipe configurations. Stainless steel 304L is an alloy known for its excellent corrosion resistance and good weldability. Commonly used in various industries, including chemical processing, food and beverage, pharmaceuticals and more.

Advantages

  • Space Saving: The short radius allows for tighter turns in constrained spaces.
  • Flow Characteristics: While it can create slightly more turbulence compared to long radius elbows, it's often sufficient for most applications.
  • Corrosion Resistance: Stainless steel provides excellent resistance to rust and corrosion, making it suitable for high-humidity or chemical environments.

ASTM A403 WP304/304L Pipe Fittings Equivalent Grade
Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304
304L S30403 304S11 - 1.4306 X2CrNi19-11 2352 SUS 304L

ASTM A403 WP304/304L Pipe Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
304 min.max. -0.08 -2.0 -0.75 -0.045 -0.030 18.0-20.0 - 8.0-10.5 -0.10
304L min. max. - 0.030 - 2.0 - 0.75 - 0.045 - 0.030 18.0 20.0 - 8.0 12.0 - 0.10

ASTM A403 WP304/304L Pipe Fittings Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201

Stainless Steel ASTM A403 WP304L Fittings Specifications

ASTM A403/ ASME SA403

ASTM A403 WP304L Pipe fittings Types

  • ASTM A403 Grade WP304L Buttweld Fitting

  • ASTM A403 WP304L Stainless Steel Seamless Fittings

  • Stainless Steel ASTM A403 WP304L ERW Fittings

  • ASTM A403 WP304L SS Welded Fittings

  • SS WP304L Fabricated Pipe Fittings

  • ASTM A403 Grade WP304L Bevel Ends Pipe Fittings

ASTM A403 WP304L WP304L Pipe Fittings Dimensions

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10

ASTM A403 WP304L Pipe Fittings size

ASTM A403 WP304L Seamless Butt Weld Fittings: 1/2" - 10"
ASTM A403 WP304L Welded Butt Weld Fittings: 1/2" - 48"

Stainless Steel WP304L Fittings Thickness

SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
ASTM A403 WP304L Pipe Fittings Tee, Reduceing Tee, Elbow, Cap, Con. Reducer, Ecc. Reducer

Buttweld Fitting Types

Seamless / Welded

Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

WP304L Stainless Steel Buttweld Pipe Fittings Test Certificates

  • EN 10204/3.1B

  • Raw Materials Certificate

  • 100% Radiography Test Report

  • Third Party Inspection Report, etc

Application & uses of Industrial A403 WP304L Fittings

  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc

  • Schedule 10 fittings are an economical alternative for lower-pressure applications.

  • Schedule 40 fittings have a thicker wall for higher-pressure applications.

We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Applications

  1. Plumbing and Water Supply

  2. HVAC Systems

  3. Oil and Gas Industry

  4. Chemical Processing

  5. Power Plants

  6. Construction and Structural Applications

  7. Shipbuilding

  8. Food and Beverage Industry

  9. Pharmaceutical and Biotech

  10. Water Treatment
