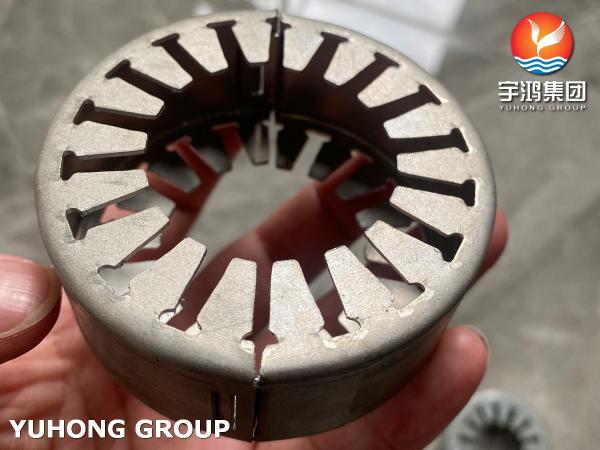

Pipe hoops or clamps for fin tubes are essential components used in the installation and maintenance of finned tube heat exchangers, boilers, condensers, and other heat transfer systems. These fittings are designed to secure the fin tubes in place, prevent movement, and ensure efficient heat exchange.

Use of Pipe Hoops/Clamps for Fin Tubes

1. Securing the Tube

Pipe hoops or clamps are used to firmly hold the fin tube in position within the heat exchanger or other system. This ensures the tubes remain fixed during operation, preventing vibrations, shifting, or movement that could affect heat transfer or damage the system.

2.Maintaining Tube Alignment

They help keep the fin tubes properly aligned, especially in high-pressure systems where tube distortion could occur without proper support.

3.Preventing Damage

By securing the tubes, they prevent excessive bending or flexing of the fin tubes, reducing the risk of mechanical damage due to thermal expansion, pressure changes, or external forces.

4.Reducing Vibration

In applications involving fluids with high flow rates or high velocity, the clamps can help minimize the vibrations of the fin tubes, which may otherwise lead to fatigue and potential failure over time.

5.Enhancing Heat Transfer

Properly secured fin tubes maintain a consistent contact with surrounding surfaces (e.g., fins, headers), which improves the heat transfer efficiency. Any movement or misalignment can lead to reduced thermal efficiency.

6.Ease of Maintenance

Clamps and hoops make it easier to access and replace or maintain individual tubes within a larger system, such as a heat exchanger. They simplify disassembly and reassembly during maintenance procedures.

Advantages of Using Pipe Hoops/Clamps for Fin Tubes

1.Durability

Made from corrosion-resistant materials (e.g., stainless steel, galvanized steel), these clamps ensure long-term performance in demanding environments like high temperatures, high pressures, and corrosive atmospheres.

Improved Structural Integrity

The clamps provide structural support to fin tubes, preventing sagging or bowing that could compromise the performance of the heat exchanger.

2.Cost-Effective

Ensuring that tubes remain in good condition through proper support can reduce maintenance costs and downtime, improving overall system efficiency.

3.Versatility

Pipe hoops and clamps come in various designs and sizes to accommodate different tube configurations, making them adaptable to a range of applications and systems.

4.Easy Installation and Replacement

These components are designed to be easy to install, which helps streamline the assembly process of heat exchangers and other systems that use fin tubes. Similarly, they can be quickly replaced if necessary.

5.Enhanced Safety

Properly secured fin tubes prevent failures that could lead to hazardous situations, particularly in high-pressure or high-temperature environments.
