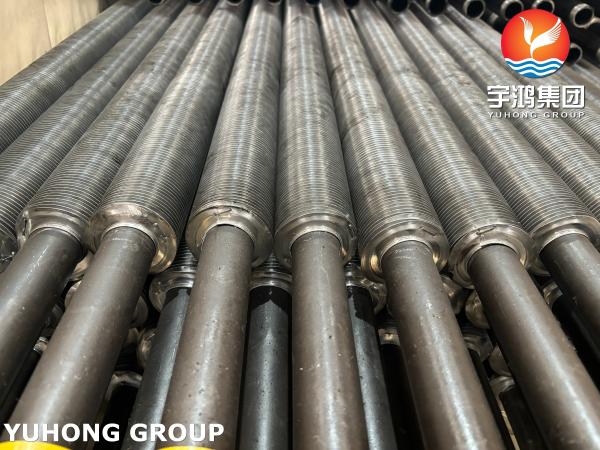

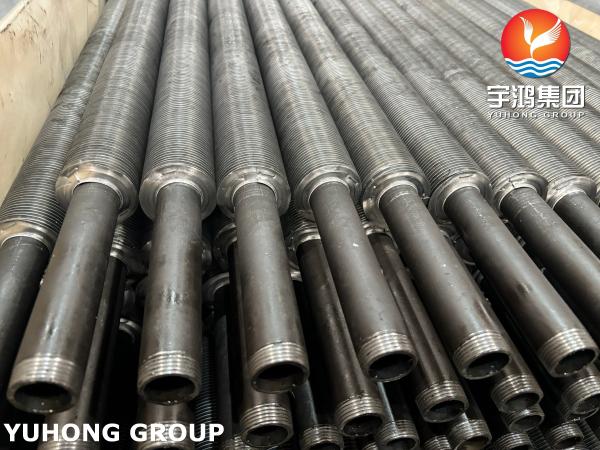

SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
SA179 CS Fin Tube L Fin Wounded Type for Reactor Effluent Air Cooler REAC
Specifications
Brand Name :
YUHONG
Model Number :
SA179 CS Fin Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 ton per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case
Specification :
ASME SA179
Grade :
SA179
Type :
L-Fin
Fin Material :
Aluminum
O.D. (mm) :
25.4
Wall Thickness (mm) :
2.5
Fin Height (mm) :
12.7
Application :
Reactor Effluent Air Cooler (REAC)
Description

SA179 CS Fin Tube L-Fin Wounded Type for Reactor Effluent Air Cooler REAC

Yuhong Holding Group Co., Ltd is a leading manufacturer in the heat exchange industry with over 20 years of export experience. We proudly export to over 80 countries and rank among the top five exporters of finned tubes in China. Our state-of-the-art facility covers an area of 20,000 square meters, equipped with 55 production lines and a dedicated workforce of over 110 employees. We are committed to delivering the highest quality products and services, leveraging advanced manufacturing technologies.

Product Overview

The SA179 CS Fin Tube L-Fin Wounded Type is specifically designed for use in reactor effluent air coolers (REAC). Constructed from high-quality carbon steel, this fin tube offers excellent thermal conductivity, making it ideal for efficient heat exchange in various industrial applications.

Fin Tube Parameters for Reactor Effluent Air Cooler (REAC)

Parameter Specification/Details
Tube Material Carbon Steel, Alloy Steel (e.g., T11, T22), Stainless Steel (e.g., TP304, TP316)
Fin Material Aluminum, Carbon Steel, Stainless Steel
Tube Outer Diameter (O.D.) 19.05mm, 25.4mm, 31.75mm, 38.1mm (Standard Options)
Tube Wall Thickness 2.0mm - 5.0mm (Depending on Design Requirements)
Fin Type L-Fin, G-Fin, Embedded Fin, Extruded Fin, Serrated Fin
Fin Height 6.35mm - 15.88mm
Fin Pitch 7 FPI - 11 FPI (Fins Per Inch)
Fin Thickness 0.3mm - 0.5mm
Tube Length Up to 12,000mm (Customizable Based on Application)
Operating Temperature -50°C to 450°C (Depending on Material Selection)
Operating Pressure Up to 40 MPa (Depending on Design)
Manufacturing Method High-Frequency Welding (HFW), Extrusion, or Embedding

Explanation of Common Fin Types

Fin Type Description Advantages
L-Fin L-shaped fin tightly wound around the tube. Cost-effective, moderate efficiency, suitable for low to medium operating temperatures.
G-Fin G-shaped groove is cut into the tube, and the fin is inserted into the groove. Better mechanical bond, improved thermal performance compared to L-Fins.
Embedded Fin Fin is embedded into the tube wall for a strong mechanical bond. High strength, excellent thermal conductivity, suitable for high temperatures.
Extruded Fin Fin is formed by extruding the base tube and fin as a single piece. Superior strength and corrosion resistance, suitable for high-pressure and high-temperature environments.
Serrated Fin Fins are segmented to increase heat transfer efficiency by promoting turbulence. Maximum heat transfer efficiency, widely used in high-efficiency applications like REAC.

Key Considerations for REAC Fin Tube Selection

  1. Material Compatibility: Choose tube and fin materials based on the operating environment (e.g., corrosive media, high temperature).
  2. Thermal Efficiency: Use serrated or embedded fins for maximum heat transfer efficiency in high-performance REAC systems.
  3. Mechanical Strength: Ensure the fin-tube bond can withstand high operating pressures and temperatures.
  4. Customization: Tube length, fin pitch, and fin height should be customized based on specific REAC design requirements.
  5. Corrosion Resistance: Stainless steel or extruded fins are preferred for environments prone to corrosion.

Example of Common REAC Fin Tube Configurations

Tube Material Fin Material O.D. (mm) Wall Thickness (mm) Fin Type Fin Height (mm) Fin Pitch (FPI)
Carbon Steel (SA179) Aluminum 25.4 2.5 L-Fin 12.7 9
Alloy Steel (T11) Stainless Steel 19.05 3.0 Serrated Fin 9.5 8
Stainless Steel (TP316) Aluminum 31.75 2.8 Extruded Fin 15.88 7
Alloy Steel (T22) Carbon Steel 25.4 3.4 Embedded Fin 10.0 11

At Yuhong Holding Group Co., Ltd, we pride ourselves on our commitment to quality and customer satisfaction. Our SA179 CS Fin Tube L-Fin Wounded Type offers exceptional performance for reactor effluent air cooling applications. With our extensive experience and advanced manufacturing capabilities, we are dedicated to providing our clients with the best products and services in the industry. For inquiries or more information about our products, please contact us today!
