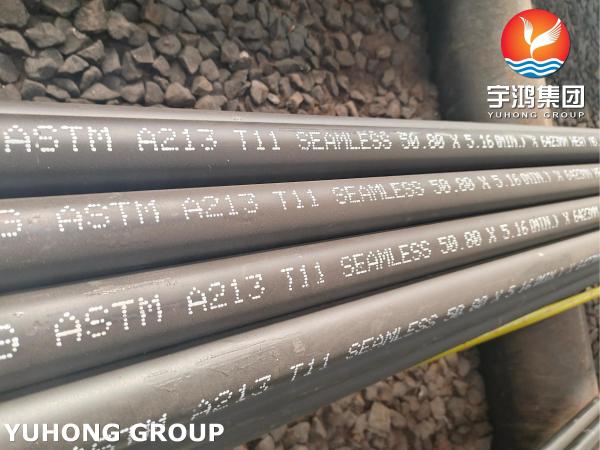

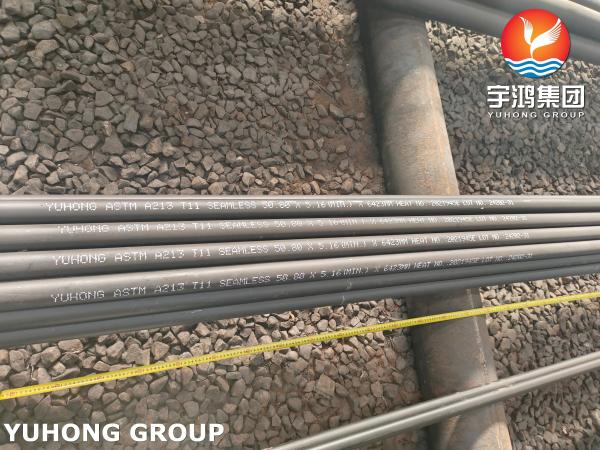

ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube
ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube
ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube
ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube
ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube
ASTM A213 Grade T11 Chrome Moly Alloy Steel Seamless Boiler Tube
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 T11 Alloy Steel Seamless Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500kgs
Payment Terms :
L/C, T/T
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product Name :
Seamless Alloy Steel Tube
Standard :
ASTM A213, ASME SA213
Material Grade :
T1, T2, T11, T12, T91, T92
Form :
Round Tubes
Length :
Single Random, Double Random & Cut Length
End :
Plain End, Beveled End
Process :
Cold-finished
NDT :
Eddy Current Test, Hydrostatic Test , Ultrasonic Test
Application :
Boiler, Heat Exchanger
High Light :
ASTM A213 T11 Alloy Steel Seamless Tube Boiler Tube
Description

ASTM A213 / ASME SA213 T11 Seamless Alloy Steel Tube Boiler Tube

ASTM A213 T11 tubes are primarily made from an alloy that includes chromium and molybdenum, which enhance the mechanical properties of the steel, including its strength and resistance to heat and corrosion. Specifically, T11 contains around 1% chromium and about 0.5% molybdenum, providing excellent high-temperature strength and oxidation resistance, making T11 a popular choice in industries such as power generation, petrochemical, and manufacturing.

Quality Control

  • Visual inspection
  • Dimensional checks
  • Nondestructive testing (NDT) methods (Eddy Current Test, Hydrostatic Test , Ultrasonic Test)
  • Mechanical property tests (tensile, yield strength, hardness)

Advantages: The primary advantages of using ASTM A213 T11 seamless tubes include:

  • High-Temperature Performance: The composition allows for operation in environments exceeding 1000°F (538°C).
  • Corrosion Resistance: While susceptible in acidic environments, T11 shows good resistance to oxidation, extending service life.
  • Versatility: Suitable for a variety of applications across multiple industries.
  • Durability: The lack of seams in the tube construction eliminates the risk of seam failures, enhancing reliability.

SA213/A213 T11 Chrome Moly Alloy Steel Seamless Tube

Tube Sizes for Heat Exchangers & Condensers & Boiler

Outside Diameter

 　 BWG
25 22 20 18 16 14 12 10
　 Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch 　 Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212 　 　 　
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429 　 　
12.7 1/2 　 0.214 0.263 0.356 0.457 0.612 0.754 　
15.88 5/8 　 0.271 0.334 0.455 0.588 0.796 0.995 　
19.05 3/4 　 0.327 0.405 0.553 0.729 0.895 1.236 　
25.4 1 　 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 　 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 　 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 　 　 　 1.342 1.774 2.244 2.894 3.5
50.8 2 　 　 　 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 　 　 　 1.949 2.554 3.244 4.214 5.13
76.2 3 　 　 　 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 　 　 　 2.729 3.609 4.584 5.974 7.27
101.6 4 　 　 　 　 4.134 5.254 6.854 8.35
114.3 4 1/2 　 　 　 　 4.654 5.924 7.734 9.43

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties

Grade Chemical Composition%
C Si Mn P, S Max Cr Mo Ni Max V Al Max
T2 0.10~0.20 0.10~0.30 0.30~0.61 0.025 0.50~0.81 0.44~0.65 – – –
T11 0.05~0.15 0.50~1.00 0.30~0.60 0.025 1.00~1.50 0.44~0.65 – – –
T12 0.05~0.15 Max 0.5 0.30~0.61 0.025 0.80~1.25 0.44~0.65 – – –
T22 0.05~0.15 Max 0.5 0.30~0.60 0.025 1.90~2.60 0.87~1.13 – – –
T91 0.07~0.14 0.20~0.50 0.30~0.60 0.02 8.0~9.5 0.85~1.05 0.4 0.18~0.25 0.015
T92 0.07~0.13 Max 0.5 0.30~0.60 0.02 8.5~9.5 0.30~0.60 0.4 0.15~0.25 0.015
Grade Chemical Composition% Mechanical Properties
W B Nb N T. S Y. P Elongation Hardness
T2 – – – – ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T11 – – – – ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T12 – – – – ≥ 415MPa ≥ 220MPa ≥ 30% 163HBW(85HRB)
T22 – – – – ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T91 – – 0.06~0.10 0.03~0.07 ≥ 585MPa ≥ 415MPa ≥ 20% 250HBW(25HRB)
T92 1.50~2.00 0.001~0.006 0.04~0.09 0.03~0.07 ≥ 620MPa ≥ 440MPa ≥ 20% 250HBW(25HRB)

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance

Permissible variations from the specified minimum wall thickness shall be in accordance with Specification A1016/A1016M.

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm

Applications

  • Petrochemical Industry
  • Chemical Industry
  • Nuclear Power Plant Industry
  • Oil and Gas Industry
  • Research & Development
  • Mega Projects & Defense & Development Industries
  • Pulp & Paper Indusry
