Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas
Specifications
Brand Name :
YUHONG
Model Number :
EN 10216-5 D2/T1 1.4404 TP316L
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
1000KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material Grade :
1.4404 (316L)
Standard :
EN10216-5
Surface :
Pickled , Bright Annealed, Polished
NDT :
UT, ET, HT
Size :
SCH10S, SCH20, SCH30, SCH40, SCH STD, SCH60, SCH80 , SCH 100, SCH120, SCH140, SCH160 , XXS
Certificate :
ABS, BV, DNV, LR...
Description

Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas

EN 10216-5 refers to a European standard that specifies the technical delivery conditions for seamless steel tubes used for pressure purposes. Specifically, the designation "1.4404" corresponds to a type of stainless steel, which is an austenitic stainless steel grade commonly known as AISI 316L.

EN 10216-5 Pipe Dimension Tolerance

Hot rolled

Outside Diameterin mm

Tolerance

30≤ Outer Diameter≤219.1

D2, ±1% or ±0.5mm

219.1＜ Outer Diameter≤610

D1, ±1.5% or ±0.75mm

Cold Drawn

Outside Diameter in mm

Tolerance

Outer Diameter≤219.1

D3, ±0.75% or ±0.3mm

Outer Diameter≤219.1

D4, ±0.5% or ±0.1mm

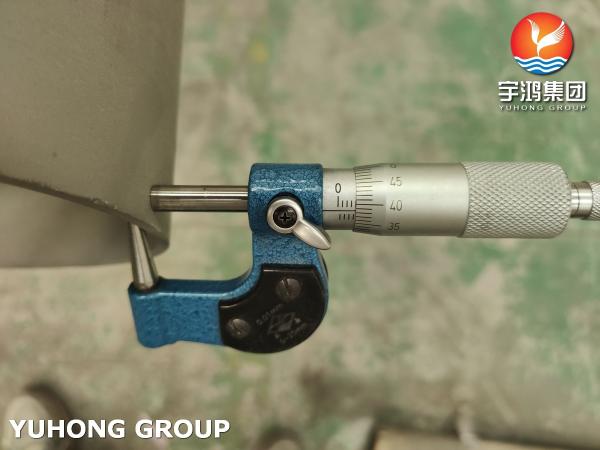

EN 10216-5 Pipe Thickness Tolerance

Hot rolled

Outside Diameter, mm

Tolerance

30≤Outer Diameter ≤219.1, WT≤0.01*Outer Diameter and WT≤4

T1, ±15% or ±0.6mm

30≤Outer Diameter ≤219.1

T2, ±12.5% or ±0.4mm

219.1＜Outer Diameter ≤610, WT≤0.05*Outer Diameter

+22.5%/-15%

219.1＜Outer Diameter ≤610, 0.05*Outer Diameter ＜WT≤0.09*Outer Diameter

T1, ±15% or ±0.6 MM

219.1＜Outer Diameter ≤610, WT>0.09*Outer Diameter

T2, ±12.5% or ±0.4 MM

Cold Drawn

Outside Diameter

Tolerance

Outer Diameter ≤219.1

T3, ±10% or ±0.2 MM

Outer Diameter ≤219.1

T4, ±7.5% or ±0.15 MM

Stainless Steel Seamless Pipe EN 10216-5 D2/T1 1.4404 TP316L For Oil And Gas

Chemical Composition of 1.4404

C

Si

Mn

P

S

Cr

Mo

Ni

N

1.4404

Min %

16,50

2,00

10,00

Max %

0,030

1,00

2,00

0,045

0,015

18,50

2,50

13,00

0,110

The physical properties of steel 1.4404/316L:

  • Density: 8,000 Kg/m³
  • Melting Point: 1400-1450 °C
  • Thermal Expansion: 15.9 x 10^-6 /K
  • Modulus of Elasticity: 193 GPa
  • Thermal Conductivity: 16.3 W/m.K
  • Electrical Resistivity: 0.074 x 10^-6 Ω.m

Application:

- Chemical processing
- Food and beverage industry
- Marine applications
- Pharmaceutical manufacturing
- Oil and gas industry
