DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
Specifications
Brand Name :
YUHONG
Model Number :
1.4404,1.4301,1.4303,1.4571,1.4939,1.4462,1.4842
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100KGS
Payment Terms :
L/C, T/T
Delivery Time :
7DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
NDT :
ET, UT, HT, PMI
STANDARD :
ASTM A312, ASME SA312, EN10216-5, GOST9941-81, JIS G-3464
MATERIAL :
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L
OD :
1/4" TO 100"
Description

STAINLESS STEEL SEAMLESS PIPE DIN EN10216-5 1.4404 D2 T1 TUBE

YUHONG Group deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 34 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 85 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France ....

Standard Specification:

EN10216-5 CT 1/2 : Stainless Steel Seamless Pipe & Tube

DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube

Material Grade:

Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Size Range:

Production Outside Diameter Wall Thickness
Seamless Pipe 6.00mm to 830mm 0.5mm to 48mm

Tolerances accordance to EN ISO 1127

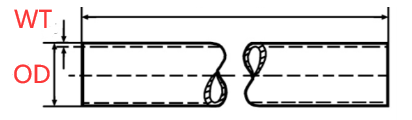

Outer diameter (OD) Wall thickness (WT)
D1 = +/- 1,50%, minimum +/- 0,75 mm T1 = +/- 15,0%, minimum +/- 0,60 mm
D2 = +/- 1,00%, minimum +/- 0,50 mm T1 = +/- 12,5%, minimum +/- 0,40 mm
D3 = +/- 0,75%, minimum +/- 0,30 mm T1 = +/- 10,0%, minimum +/- 0,20 mm
D4 = +/- 0,50%, minimum +/- 0,10 mm T1 = +/- 7,0%, minimum +/- 0,15 mm

Final Finishing:

Solution Annealed & Pickled

ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS

Application:

  • Food processing equipment, particularly in beer brewing, milk processing & wine making.
  • Kitchen benches, sinks, troughs, equipment and appliances
  • Architectural panelling, railings & trim
  • Chemical containers, including for transport
  • Heat Exchangers
  • Woven or welded screens for mining, quarrying & water filtration
  • Threaded fasteners
  • Springs
  • Ship building, onshore , offshore, Maire.
  • Others
  • DIN EN10216-5 1.4404 D2 T1 D4 T3 Stainless Steel Seamless Pipe Tube
