ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
ASTM A182 F55 UNS S32760 Bleed Rings Super Duplex Stainless Steel
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182 F55
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
According to Client Requirements
Delivery Time :
Depends on quantity
Packaging Details :
According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Standrad :
ASTM A182
Material Grade :
F55
Product Name :
Bleed Rings
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Size :
1/8"NB TO 48"NB IN
Packaging :
PLY-WOODEN CASE OR PALLET
Description

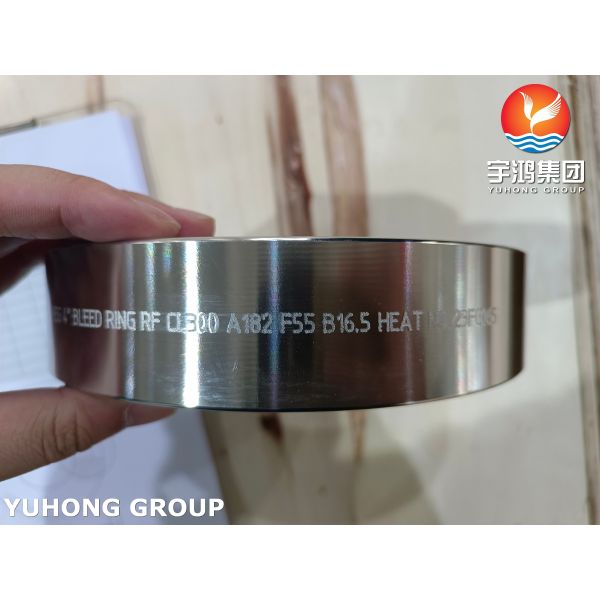

ASTM A182 F55 Bleed Rings

ASTM A182 F55 Vent Ring. ASTM A182 covers wrought stainless steel and alloy materials for high temperature service, including flanges, fittings, and valves.

Grade F55 (UNS S32760): A super duplex stainless steel with high chromium (25%), molybdenum (3.5-4.5%), and nitrogen (0.2-0.3%) content for excellent strength and corrosion resistance. Meets NACE MR0175/ISO 15156 standards for sour services.

Vent Ring Function:

Purpose: Installs between flanges to provide a port for venting, draining, or pressure testing in piping systems. Venting is essential during hydrostatic testing or draining of fluids.

Design: Typically includes a threaded hole for a valve or plug connection, matching flange dimensions (ASME B16.5/B16.47) for seamless integration.

Vent rings are often used in place of orifice flanges.

They are easier to install and more affordable than orifice flanges in environments involving hazardous materials or contamination

Convenient for accessing drain lines, sampling, or connecting instruments

They can also reduce or eliminate pressure prior to flange removal by using a valve or blind flange.

This procedure is common when replacing a leaking valve in a piping system.

Applications include offshore oil/gas, chemical processing, desalination, and seawater systems where chloride-induced corrosion (pitting, crevice) is present.

Due to its duplex structure (austenite + ferrite phases), F55 is suitable for high pressure, high temperature, and corrosive services.

Chemical composition % of ASTM A182 f55 flanges

Chemical Composition Limits
Weight% C Mn P S Si Cr Ni Mo N W
Super Duplex F55 0.03 max 1.00 max 0.03 max 0.01 max 1 max 24-26 4.5-6.5 3-4 0.25 0.08-0.20

Mechanical properties of ASTM A182 f55 flanges

Alloy Tensile Strength N/mm² Yield Strength 0.2% N/mm² Elongation Hardness HB
Super Duplex F55 860 720 min 16 min 270 max

Application

  • Chemical Processing Industry
  • Petrochemical Industry
  • Oil and Gas Industry
  • Power Generation
  • Desalination Plants
  • Pharmaceutical Industry
  • Waste Treatment and Pollution Control
  • Marine Applications
