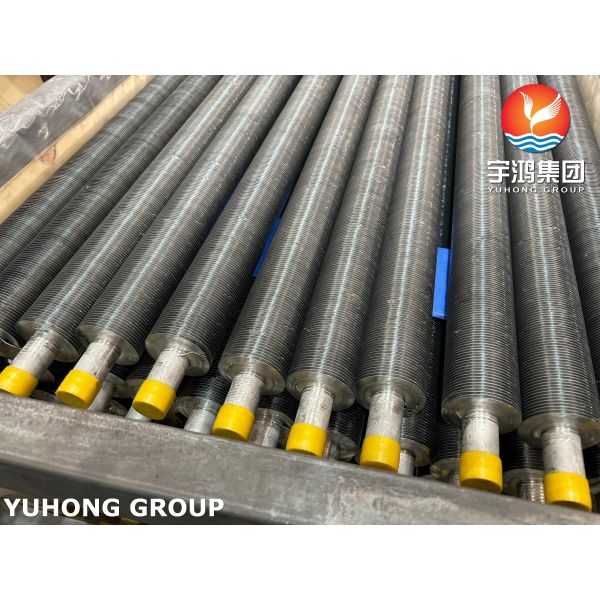

ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A179
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
7-45DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Matrial :
ASTM A179 TUBE
Fin Material :
A1060
Fin Height :
15.875mm
Application :
Dry Cooling Tower
Package :
Wooden case with steel frame
Fin Type :
Extruded, L-foot, G-foot,
Description

ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower

Key Features of ASTM A179 Carbon Steel Fin Tube with Aluminum G-Fin:

Base Tube Material: ASTM A179 specifies low-carbon steel, which provides good thermal conductivity and is suitable for heat transfer applications.

Fin Material: Aluminum fins are commonly used due to their excellent thermal conductivity, lightweight, and corrosion resistance.

G-Fin Type: The "G-fin" refers to a specific type of fin design where the fins are embedded or wound onto the base tube. This design ensures good mechanical bonding between the fin and the tube, enhancing heat transfer efficiency.

Application: These fin tubes are typically used in dry cooling towers, air-cooled heat exchangers, and other systems where efficient heat dissipation is required.

Technical Specifications:

Property Base Tube (ASTM A179) Fins (Aluminum)
Outer Diameter (OD) 15.88 mm - 76.2 mm Customizable based on design
Wall Thickness 1.2 mm - 3.0 mm -
Fin Height - 10 mm - 16 mm
Fin Thickness - 0.3 mm - 0.5 mm
Fin Pitch - 9fins per inch (typical)

Advantages of Using ASTM A179 Carbon Steel Fin Tube with Aluminum G-Fin:


High Thermal Efficiency: The combination of carbon steel tubes and aluminum fins provides excellent heat transfer properties.

Corrosion Resistance: Aluminum fins offer good resistance to corrosion, which is important in cooling tower environments.

Durability: The mechanical bonding of the G-fin design ensures long-term durability and reliability.

Cost-Effective: Aluminum fins are lightweight and cost-effective compared to other fin materials, while still providing excellent performance.

Applications:

  • Dry cooling towers in power plants, HVAC systems, and industrial facilities.
  • Air-cooled heat exchangers where compact, efficient designs are required.

ASTM A179 Carbon Steel Fin Tube Aluminiun G Fin Type For Dry Cooling Tower
