Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Specifications
Model Number :
floor decking Machine
Certification :
CE
MOQ :
1 set
Price :
on discuss
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 days after receiving deposit
Packaging Details :
the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Model NO.: :
EN-130JK
Material Thickness: :
0.4-0.7mm
Rolling Speed: :
6-15m/Min
Roller Stations: :
14 Stations
Hydraulic Cutting Power: :
5.5kw
Material of Shaft: :
45 Steel
Transport Package: :
Plastic Film, Container
HS Code: :
845522100
Description

Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated For Building

Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Decoiler

Type Manual type(standard) Hydraulic type(option)
Photo Automatic Double Layer Corrugated Sheet Rolling Machine For Building Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

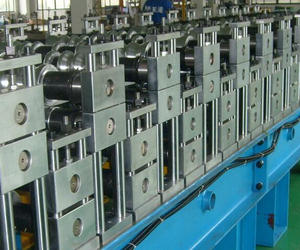

Machine siding panel
plate type Pillar type(option)
Automatic Double Layer Corrugated Sheet Rolling Machine For Building Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming

Forming stations 13-22 stations(according to the profiles)
Machine rollers high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type bearing sliding type
Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Blade material Cr12mov quenching and grinding
Frame processing the whole bottom frame is grinding for high-precision
Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type Manual
Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Auto(option)
Automatic Double Layer Corrugated Sheet Rolling Machine For Building
Length 1.5m-2m 6m or 12m

PLC

Main item Parameter detail
PLC Delta(standard) or according to your request
Automatic Double Layer Corrugated Sheet Rolling Machine For BuildingAutomatic Double Layer Corrugated Sheet Rolling Machine For Building
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase
