Specifications
Model Number :
light steel keel
Certification :
CE
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
60 days after receipt of buyer's deposit
Packaging Details :
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed
Brand Name :
ZTRFM
Place of Origin :
China
Price :
Negotiable
Material :
GI coil
Function :
For ceiling or drywall
Thickness: :
0.3--1.2mm
Size range :
customized
Roller material: :
Gcr12 mov
Power(W): :
7.5x2 kw
Frame :
Molding frame of thickness 35mm
Shearing :
Servo tracking
Warranty: :
2 years
Description

Galvanized Steel Wall Framing Stud Rolling Forming Machine

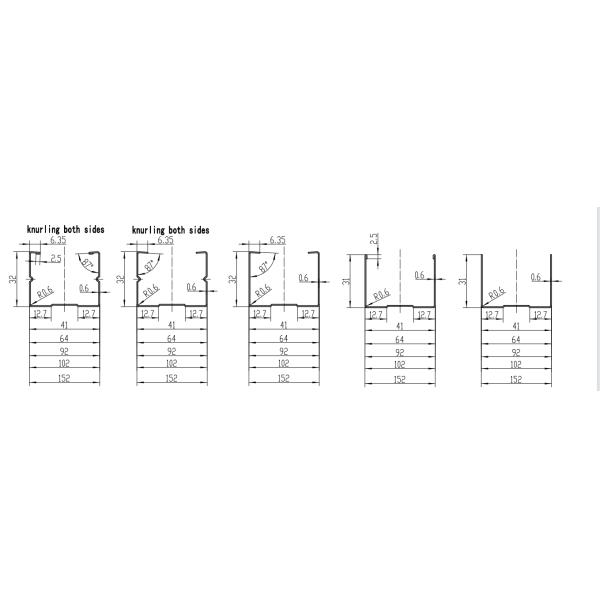

Galvanized Steel Wall Framing Stud Rolling Forming Machine manufactures a full line of drywall studs in 18, 27, 30 and 33 mil thicknesses (25-20ga.). These studs are available in standard 1-5/8'", 2-1/2'", 3-1/2'", 3-5/8'", 4'", 5-1/2'" and 6'" member widths and have 1-1/4'" flanges. Corresponding track comes with 1-1/4'", 2'" or 3'" leg. We also manufacture custom studs and track on request. Those are quite popular sizes in USA with some kind of punching, here we will take a random drawing profile for example:

Galvanized Steel Wall Framing Stud Rolling Forming Machine

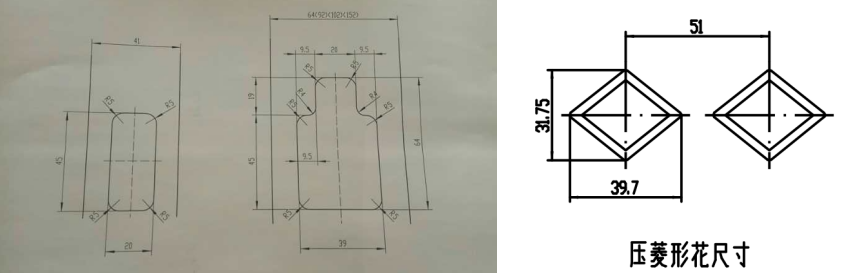

With some kind of punching hole and bottom embossing like this:

Galvanized Steel Wall Framing Stud Rolling Forming Machine

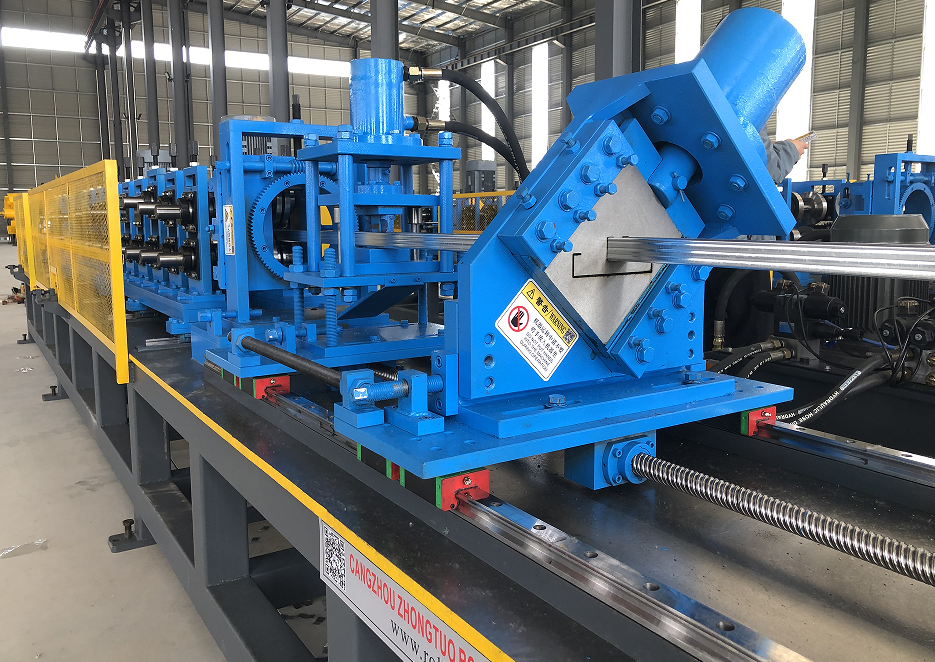

Galvanized Steel Wall Framing Stud Rolling Forming Machine design:

Galvanized Steel Wall Framing Stud Rolling Forming Machine

Galvanized Steel Wall Framing Stud Rolling Forming Machine Parameters:

Main roll forming machine
Note: We use split rollers to realize one machine to produce C drywall products with different bottom widths.
Voltage 380V ,50Hz, 3Phase (as customer request)
Frame type Memorial arch frame of thickness 30mm
Drive mode Heavy duty gearbox as transmission
Material of rollers GCr12mov
Material of shafts 45# steel with tempering
Diameter of shafts Φ70mm
Number of rollers 15 rollers, with more rib roller one more station and 4 sets rib adjustable rollers
Main power 7.5 kw and with one more motors 11kw
Raw Materials of the steel coil Galvanized steel plate
Material thickness 0.5-1.5 mm
Forming speed 50 m per minute without punching hole
Punching System
Before punching After punching
Material of the punching die GCr 12 quenched
Power supply Hydraulic power
Note: for the punching die, we wait your drawing and confirmation, and then update the quotation.

Galvanized Steel Wall Framing Stud Rolling Forming Machine

Galvanized Steel Wall Framing Stud Rolling Forming Machine Features:

1. It has side rollers to trim the edge.

2. It designed with the turkey head to make sure the stud and track straight.

3. It use the separated rollers to make sure one machine can make a range of sizes stud and track profile.

4. PLC control machine working fully automatic.

5. Servo tracking shearing with the online punching.

6. Speed could be ranged from 25 to 120 meter minute.

7. Decoiler automatic type and the manual type optional.

8. Package system, with manual option and fully automatic system.

Working With Steel Studs: Metal Stud Framing:

Galvanized Steel Wall Framing Stud Rolling Forming Machine

Galvanized Steel Wall Framing Stud Rolling Forming Machine

Galvanized Steel Wall Framing Stud Rolling Forming Machine working videos for your reference:
