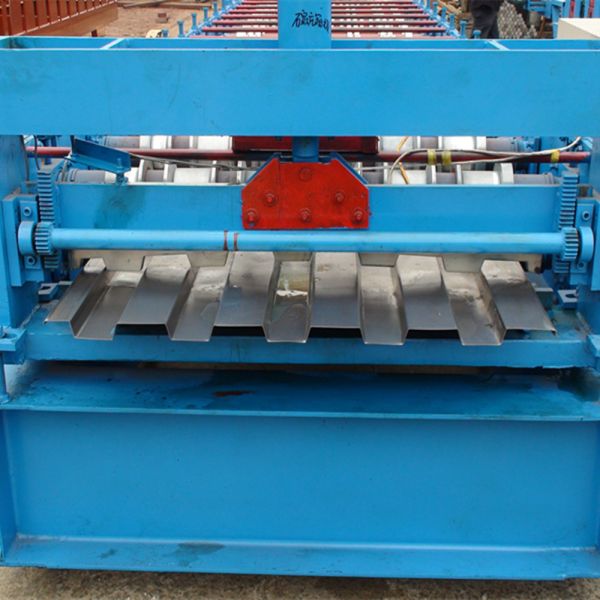

Container Board Roof Roll Forming Machine With Hydraulic System Controlled
Container Board Roof Roll Forming Machine With Hydraulic System Controlled
Container Board Roof Roll Forming Machine With Hydraulic System Controlled
Container Board Roof Roll Forming Machine With Hydraulic System Controlled
Specifications
Model Number :
900
Certification :
CE
MOQ :
1 SET
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
30 working days after receiving the 30 percent deposit
Packaging Details :
plastic film packaged to protect the machines , and the macines loaded into the container.
Type: :
Cold Rolling Mill
Dimension(L*W*H): :
6500*1300*1100
Weight: :
3-10tons, According to customer
oltage: :
220v-380v-440v
Final product: :
Steel Plate
Shaft material: :
45# Steel Outer Diameter: 40mm Roll material:
Roll Material: :
.Forged 45# steel0mm
Warranty: :
12 MONTHS
Description

Container Board Car Panel Roll Forming Machine With Hydralic System Controled

Working Process Flow
Uncoiling→Feeding material into machine→Punching → Roll forming→Measuring length→ Auto cutting→
Products receiving

Uncoil manual uncoil or hydraulic uncoiler
Raw material thickness 0.2mm-1.5mm
Material as customers demand
Machine dimension 9600mm*2200mm*1900mm(L*W*H)
Feeding width according to your profile
Forming station 15 -18 steps or more
Shaft diameter 90 mm
Shaft material high grade 45# steel, heated and quenched
Roller material high grade 45# steel,coated with 0.05mm chrome
Forming speed 18-28m/ min(adjustable)
Transmission type chain transmission
Machine frame stand welded structural steel,thickness is 20mm
Motor Detal brand / Siemens brand or as your need
Main motor power 3-11 kw
Cutting type stop hydraulic cutting
Cutting power 7.5 kw
Cutter material Cr12 with quenched treatment HRC 58-62
Cutting length error ±1mm
Voltage 380V & 50HZ & 3 or according to your requirement
Control system PLC control system
Size of PLC 2700mm*1000mm*300mm
PLC Siemens or Detal as customers demand
Company Information

1. Cangzhou Kingter Roll Forming Machine Co.,ltd is located in " The Town of Casting Molds", enjoys convenient transportations, Di Kou Zhang Village, Nancang Road, Botou City, Hebei Province, China.

2. We are a manufacture of roll forming machine, all of the parts we made ourselves, so, we can insure the quality of our products.

3. Cangzhou Kingter Roll Forming Machine is a company integrating production, processing, sale, trade, so we will give our customers the best price.


FAQ

1 How can we install the spiral welded pipe roll forming machine?

a When finished the spiral welded pipe roll forming machine, you can with your techinian or one of your worker to our factory inspect the machine. While we run the spiral welded pipe bending machine , we can teach your techinian how install the machine and run the machine.

b If you do not plan to come the inspect the machine running, we can send you the machine running vedios and machine manual which telling how to install the machines.

c We also have a strong machine installing team which ever go to custoer's country install many machines.

If you demand our technian to work with you, our techinian can go to your place teach our worker's .

But, our techinian's accomodations should be arranged by your sides and pay 50 USD/day .
