Specifications
Brand Name :
ZTRFM
Model Number :
ZTAC
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
Under discuss
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
60 working days
Packaging Details :
Nude
Description

Cable Ladder horizontally mounted C profile rolling forming machine

This cable ladder range is a complete cable support system that is easily assembled on site. The cable ladder system is designed to carry electrical cables in horizontally mounted heavy duty industrial, mining and petrochemical applications.Here is the profile of C with lots of punching. This cable ladder is good for making any length or width according to the installation requirements:

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

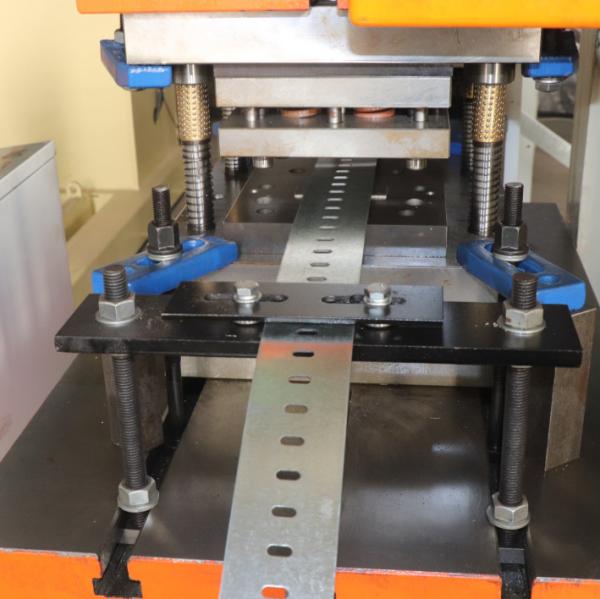

Cable Ladder horizontally mounted C profile rolling forming machine with punching:

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

As the customer has two sizes to be made, we design the shearing system with two cutting blades. And for the different sizes by adjusting spacers. As to the punching system, you can choose to use the YangLI or world famous brand punching machine or by hydraulic punching machine.

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

For the main rolling C profile rolling forming machine:

Rolling shaft material 40Cr
Shaft diameter 70 mm
Roller material Cr12 HRC 56-58
Rolling station 16 stations
Work speed 20m/min
Machine frame Iron casting vertical structure
Machine body steel plate welded with grinding
Motor brand Siemens
Work power 15kw
Transmission chain
Leveling station 5 shafts
Straightening 4 vertical rollers

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

Cable Ladder horizontally mounted C profile other usage for your reference:

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine
