Specifications
Brand Name :
ZTRFM
Model Number :
ZTAC
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1 set
Price :
under discuss
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
45 working days
Packaging Details :
Nude with anti-rusting coil
Cable Tray Size :
80 to 600mm
Production Speed :
6-15m/min
Voltage :
380V
Frequency :
50Hz
Main Motor Power :
7.5KW
Working Speed :
7 to 12
Seam :
welding
Usage :
Roll Forming
Production Capacity :
8-15m/min
Cooling System :
by water
Product Length Error :
± 1mm/3m
Control Power :
PLC
Warranty :
1 Year
Motor :
Servo Motor
Product Forming Speed :
2~8 m/min
Description

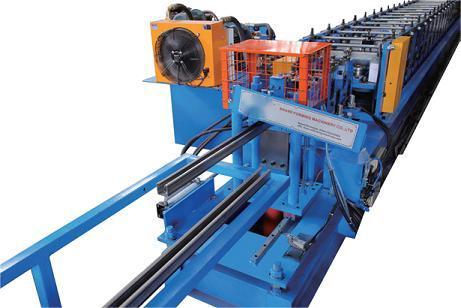

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Slotted strut Channel Roll Forming Machine is a specialized equipment for producing solar photovoltaic stents. It processes metal materials into the desired bracket profiles through cold bending and molding techniques.

These molding machines usually have a highly automated production process, which can improve production efficiency and product quality.

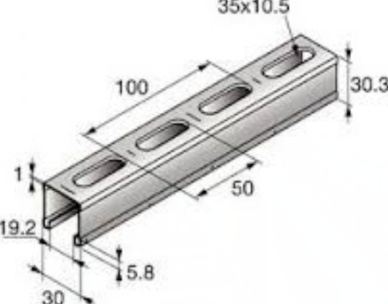

Here is a profile pictures:

1 Suitable Material GI
2 Width of the raw material Base on profile
3 Thickness 1.5-2.5mm

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

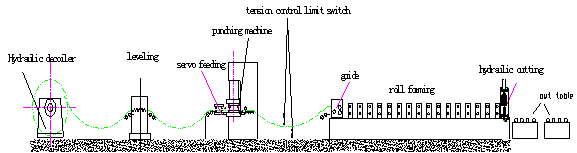

2.The Chart of Process Flow

Uncoiler— Flatten—Servo Feeding& punching—Roll Forming—Rectify—Fly Saw Cutting—Out table

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Specification of Components

No Technical Specification & Remark
1

3T manual un-coiler
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Quantity:1
2

Leveling part
  • Flattener roller: upper is 4 rollers, down is 5 stations(total is 9 rollers)
  • Diameter of flattened shaft:￠70mm, material is 40CR, hardening and tempering
  • Max leveling raw material width: 300mm
  • Leveling raw material thickness: 1-2.5mm
  • Power: 4KW AC motor
3

Servo feeding& punching machine
  • Servo feeding system
  • This system adopt servo feeding to make high speed and precision
  • Servo power: 2.9KW
  • Servo brand: YASKAWA
  • Quantity: 1
  • 80T JH21-80 punching machine
  • Punching station: 1 station with 6 holes
  • Punching model: punching press
  • Punching tooling base material: JIS S45C steel
  • Punching tooling set material: SKD11
  • Number of punching mould: 1set
  • Punching dies material: SKD11
  • Hardness of punching tooling set: HRC58-62
  • Max punching sheet width: 300mm
  • Punching machine carrying capacity 80T
  • Brand of punching machine: Yang Li
  • Main motor power: 7.5KW, Siemens
  • Punching control cabinet: available
4

Roll forming

  • Roll station:26stations +1 station of torque head
  • Roller material: Cr12 with heat treatment, HRC 58-82, surface with chrome
  • Shaft diameter: ￠85mm material: 40CR, HRC 250-280
  • Main motor: 45KW
  • Forming speed: 15-20m/min
  • Machine drive part will be covered with protective cover
5

Fly saw cuttings system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade: Cr12MOV, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Servo power: 3KW Yaskawa
  • Working pressure:16Mpa
  • Cutting and servo in the middle under cutting
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.0mm for each piece end product
6

Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
  • PLC: Siemens
  • HMI: MCGS
