High Speed Corrugated Metal Roofing Sheet Machine

A high-speed corrugated metal roofing sheet machine is an industrial equipment designed for efficiently and rapidly manufacturing corrugated metal roofing sheets.These sheets are commonly used in construction for roofing purposes due to their durability,strength,and resistance to weather elements.The machine automates the process of forming,cutting,and shaping metal sheets into the desired corrugated profile.

Here is one drawing profile and finished product:

Processing Flow:
Decoiler→feeding material→roll forming→cutting→receiving the product

High Speed Corrugated Metal Roofing Sheet Machine

Feeding Device
The metal coil is fed into the machine through a set of rollers and guides to ensure a smooth and continuous process.
1. Utilizes rubber rollers to safeguard the surface of raw materials.
2. Easy adjustment for varying thicknesses of raw materials using handwheels.
3. The platform width is conveniently adjustable via handwheel, featuring built-in bearings to safeguard the steel sheet’s edges.

Roll Forming Device
This is the heart of the machine, where the metal sheet is formed into the corrugated profile. A series of specially designed rollers and dies shape the metal as it passes through this section.
1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely

Transmission device
Gearbox transmission,stable and no loose.

Hydraulic Cutting Device

After the metal sheet has been corrugated, a cutting mechanism is employed to cut the sheet to the desired length. This can be achieved through various methods, such as shearing or rotary cutting.
1.Work type:hydraulic servo track cutting servo motor 5.5KW
2.Driving method:By pillar type Cylinder
3.Hydraulic motor power:4 kw
4.Cutter material :GB-Cr12 with heat treatment
5.Cutting length tolerance ±10m/2mm

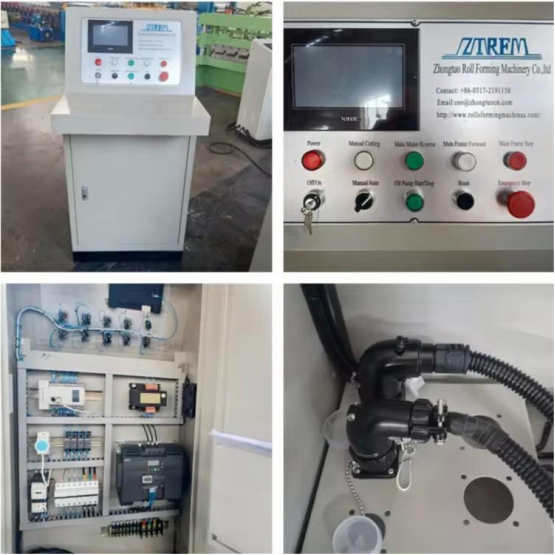

PLC control system
Modern machines are equipped with a control system that allows operators to set parameters, monitor the production process, and make adjustments as needed. This may include features like touchscreen interfaces and programmable logic controllers (PLCs).
Brand
PLC brand : Delta
Inverter brand: Delta Low electric part: Schneider
Encoder: Omron
Function:
1.Adopted aviation plugs,easy installation.
2.Full automatic easy operation.
3.Operation language:English(provide customized)
4.National coinsurance,spar parts Brand Siemens and Schneider

Hydraulic station
7.5kw motor with cooling system for long time using.

Automatic Stacker
3m Conveyor

Automatic Stacker
6m Automatic Stacker
