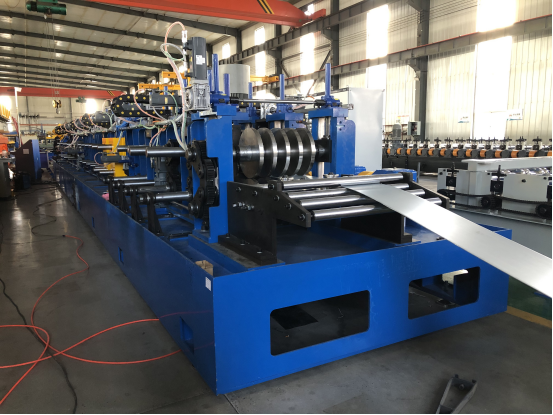

76.2-127mm CZ Purlin Roll Forming Machine

In the field of construction and manufacturing, CZ steel is increasingly widely used, and Cangzhou Zhongtuo CZ steel machine with its outstanding performance and technology, has become the trusted choice of many enterprises.

The CZ steel machine produced by Cangzhou Zhongtuo uses cold bending technology. Through multiple precise roller compressions, it gradually processes the steel strip into the desired CZ steel shape. During this process, every roller compression process is strictly designed and calibrated to ensure high control precision of the CZ steel's size and shape. Advanced forming technology ensures that the cross-section shape of the steel is neat and the surface flatness is high, with no obvious waves or folds. This effectively improves the quality and appearance of the product, and can meet the strict requirements of high-standard building and industrial projects for the quality of steel sections.

76.2-127mm Customizable Cz Purlin Machine For Steel Section

Basic parameters of raw materials and products

Semifinished material

Hot rolled strip, cold rolled strip, galvanized strip

Tensile strength 520MPa; yield strength 320MPa
Material Q195,Q235, Q355,
Steel width Maximum of 280mm according to the profile
File size See the attached table1,2
Thick steel wall 1.5-3.5mm
Steel coil inner diameter Φ508mm/Φ610mm
Steel coil outer diameter Φ1200mm～Φ2100mm
Maximum volume weight 10t
Pipe range 4~6m
Speed Max.40m/min
Length size tolerance ±1.5mm
R horn R2-2.5mm

Schedule 1.C, section steel size table

C profile size(Inches) C profile size
(mm)		 Thickness
(Inches)		 Thickness(mm) C profile length(m)

Speed

(m/min)
3×1.5×0.75 76.2×38.1×19.05 0.0598 1.51 6m 40
3×1.5×0.75 76.2×38.1×19.05 0.0747 1.9 6m 40
4×1.5×0.75 101.6×38.1×19.05 0.0598 1.51 6m 35
4×1.5×0.75 101.6×38.1×19.05 0.0747 1.9 6m 35
4×1.5×0.75 101.6×38.1×19.05 0.1046 2.66 6m 30
4×1.5×0.75 101.6×38.1×19.05 0.1345 3.5 6m 25
4×2.0×0.75 101.6×50.8×19.05 0.0598 1.51 6m 35
4×2.0×0.75 101.6×50.8×19.05 0.0747 1.9 4m 35
4×2.0×0.75 101.6×50.8×19.05 0.0747 1.9 5m 35
4×2.0×0.75 101.6×50.8×19.05 0.0747 1.9 6m 35
4×2.0×0.75 101.6×50.8×19.05 0.1046 2.66 6m 30
4×2.0×0.75 101.6×50.8×19.05 0.1345 3.5 6m 25
5×2.0×0.75 127×50.8×19.05 0.0598 1.51 6m 30
5×2.0×0.75 127×50.8×19.05 0.0747 1.9 5m 30
5×2.0×0.75 127×50.8×19.05 0.0747 1.9 6m 30
5×2.0×0.75 127×50.8×19.05 0.1046 2.66 6m 25
5×2.0×0.75 127×50.8×19.05 0.1345 3.5 6m 20

Schedule 2.Z, section steel size table

Z profile size(Inches) Z profile size
(mm)		 Thickness
(Inches)		 Thickness(mm) Z profile length(m)

Speed

(m/min)
4×1.5×0.75 101.6×38.1×19.05 0.0598 1.51 6m 35
4×1.5×0.75 101.6×38.1×19.05 0.0747 1.9 6m 35
4×1.5×0.75 101.6×38.1×19.05 0.1046 2.66 6m 30
4×1.5×0.75 101.6×38.1×19.05 0.1345 3.5 6m 25
4×2.0×0.75 101.6×50.8×19.05 0.0598 1.51 6m 35
4×2.0×0.75 101.6×50.8×19.05 0.0747 1.9 6m 35
4×2.0×0.75 101.6×50.8×19.05 0.1046 2.66 6m 30
4×2.0×0.75 101.6×50.8×19.05 0.1345 3.5 6m 25
5×2.0×0.75 127×50.8×19.05 0.0598 1.51 6m 30
5×2.0×0.75 127×50.8×19.05 0.0747 1.9 6m 30
5×2.0×0.75 127×50.8×19.05 0.1046 2.66 6m 25
5×2.0×0.75 127×50.8×19.05 0.1345 3.5 6m 20
76.2-127mm Customizable Cz Purlin Machine For Steel Section
一, 10 ton hydraulic comachine with trolley
1. Bearing 10t
2. Install the inner diameter of the coil 508mm
3. The shaft of the open coder is tightened Hydraulic tightening, tightening range of 480-530mm
4. Maximum volume width MAX 300mm
5. Pressure arm Pneumatic pressure arm, to ensure that the rolling material is not loose
6. Prop up With support
7. Shovel head and calibration Equipped with shovel head and leveling, add feed clutch, after the clutch release
二,Forming host
1. Material delivery and calibration Feed material: feed roller and guide roller
Flat roll: three up and four, a total of 7 rolls flat. Full solid shaft is heat treated and lathe.
2. Forming Equipment base: steel plate welding
Equipment main engine structure: cast iron memorial arch, model 140
Bearing cap and nut: chrome-plated
Formed rows: 16 rows
Roller material: Cr 12, CNC machining after heat treatment to HRC 58-60, fine turning
Axis material: 40 Cr
Axis diameter: 70 / 95mm
Transmission mode: the gear box
Speed: about 20-40m / min
Main motor: 30 kw * 2 sets, Siemens AC frequency conversion motor
Reducer: K-series
Size adjustment motor power: 2*1.5kw+2.2kw, Siemens servo motor V90
Roller clearance adjustment of different thickness: 8*0.75kw (according to the actual design)
Straight: ensure the tness of finished product
Hydraulic cut: tracking shear, 45 degrees torsion, no waste, one model, a pair of blades
Cut-off die material: Cr12 mov
Cooling system: water cooling lubrication system, with water tank and pump, add filter screen at the water tank to prevent water debris from entering the water tank and burn the pump
Voltage: 460V, 60 hz, 3ph, (according to customer requirements)

76.2-127mm Customizable Cz Purlin Machine For Steel Section76.2-127mm Customizable Cz Purlin Machine For Steel Section

76.2-127mm Customizable Cz Purlin Machine For Steel Section76.2-127mm Customizable Cz Purlin Machine For Steel Section
三,Hydraulic system
1. Work pattern Hydraulic cut off
2. Power 11 kw,Air cold
3. Electromagnetic valve Ward
76.2-127mm Customizable Cz Purlin Machine For Steel Section
四,PLC control system
1. PLC brand Siemens brand
2. Touch screen brand Siemens brand
3. Frequency transformer Siemens brand
4. Counter OMRON
5. low-voltage apparatus By Siemens or Schneider
6. Operating language Chinese and English (support for customization of other languages)
7. Control cabinet A power cabinet, an operating console
8. Function You can set the order quantity, change the length and length and other equipment. Easy to operate, with the aviation plug is convenient for customers to install. Plus gateway remote.
76.2-127mm Customizable Cz Purlin Machine For Steel Section76.2-127mm Customizable Cz Purlin Machine For Steel Section
五,Automatic stacking
1. The length of the material The longest is 6 meters
2. Quantity 1 set
3. Direction Longitudinal, as shown in the pictures
4. Function

1. Automatic feeding and palletizing

2. After a small batch is completed, bundle it once with nylon band, and then move to another station. After several small batches are completed, then make a large bundle with steel band. You need to pack it twice!(For Type C, only)
76.2-127mm Customizable Cz Purlin Machine For Steel Section76.2-127mm Customizable Cz Purlin Machine For Steel Section
六,Accessory
NO. Name Quantity
1 Overtravel-limit switch 2 set
2 Hydraulic tubing 1 set
3 Electric relay 2 set
4 Tool cabinet 1 set
