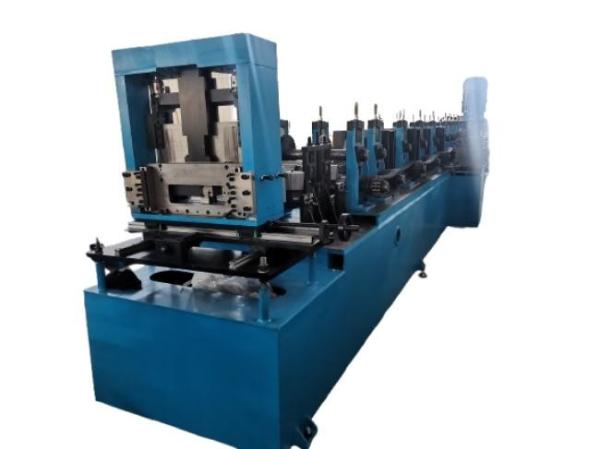

2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven
2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven
2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven
2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven
Specifications
Brand Name :
ZTRFM
Model Number :
PURLIN
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
45 working days
Packaging Details :
Nude with anti coil coating and plastic cover
Material Thickness Range :
2.5-3.0mm
Thickness :
2-3mm
Cz Interchange Type :
PLC Controlled full automatic
Roller :
20 stations
Warranty :
1 year
Condition :
New
Feature :
Customized , CE marked
Punching Station :
optional
Rolling Thickness :
2-3mm
Roller Drive :
Decelerating motor+chain drive
Line Speed :
Adjusted by Frequency Inverter
Level Shaft :
3 rollers for up , 4 rollers for down
Driven :
gearbox
Output :
about 15meters per minute
Width :
C80-300mm width changeable
Description

CZ Purlin Roll Forming Machine

The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

CZ Purlin Roll forming machine can produce C, Z profiles. Produce the C and Z purlin by exchange one side of the roller up and down, only need about half hour. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.

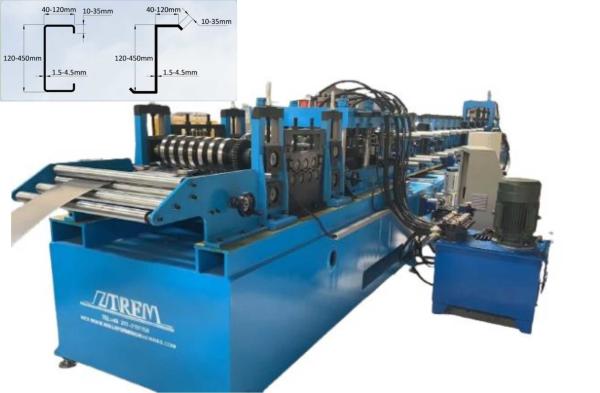

Profile Drawings For Reference

2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven

CZ Purlin Roll Forming Machine Process Flow

Uncoiler — Feeding — Straightening — Pre-punching — Pre-cutting — Roll Forming — Exit Rack

2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven

CZ Purlin Roll Forming Machine

2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven

2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven

2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven
