Specifications
Brand Name :
ZTRFM
Model Number :
Roofing sheet machine
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1 set
Price :
under discuss
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
45 working days
Packaging Details :
Nude with anti coil coating and plastic cover
Hydraulic Station Power :
4 KW
Coil Width :
1000mm
Shaft Material :
45# and OD 80mm
Diameters Of Roller :
65-90mm
Power Source :
Hydraulic
Machine Color :
As you wish
Roller Stands :
About 13-20 (depend onprofile)
Rollers :
16 rows
Control System :
PLC
Transmission Type :
Chain Drive
Hydraulic Systems :
10-12Mpa
Model :
XYZ-1000
Rolling Thinckness :
0.12-0.3mm
Effective Width :
700mm
Description

Trim Roll Forming Machine

Our trim machines are made to meet commercial, residential, or industrial needs. Trim profiles vary depending on building type, roof type, or marketplace. Trim machines we offer include: J Channel, Ridge Cap, Fascia, Rake Trim, Drip Edge, Drip cap, Corner trim, and many more.

Designed and Manufactured in the China with Stainless Steel to Hardened Tool Steel Forming Rolls with or w/o Chrome Plating, Sealed Bearings, Stainless Steel Shafting, Hydraulic Drive and Shear or AC Drive Motor System and Air Powered Shear, and Digital Controllers for fully automatic operation. Typical thickness capacities range from 30 to 16 gauge on Steel and .019″ to .060″ on Aluminum.

The benefit of owning your trim machine is you no longer have to deal with the constant rising prices of trim, and long lead times. Trim machines also allow you to “free up” your brake or folder for other projects, and there is no limitation on the length of pieces.

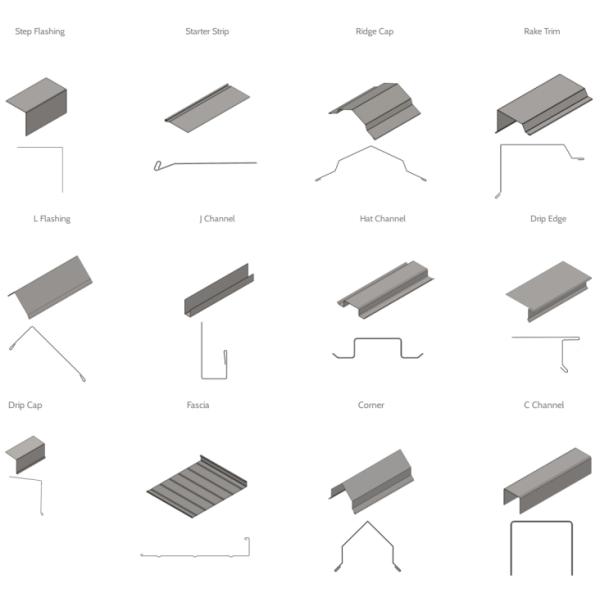

Example Profiles

Trim Roll Forming Machine For Steel And Aluminum With Thickness Capacities Ranging From 30 To 16 Gauge

Trim Roll Forming Machine

Trim Roll Forming Machine For Steel And Aluminum With Thickness Capacities Ranging From 30 To 16 Gauge

Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed about 30m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main servo motor power: 4kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement

FEATURE

Workflow of trim lines,decoiler- feeding – slit width-punch – forming – cut

Siemens control, about 14 roller stations

Trim forming machine adopt servo motor to improve working speed.

We can make roll forming for single trim, or roll former for multi profiles.

Trim Roll Forming Machine For Steel And Aluminum With Thickness Capacities Ranging From 30 To 16 Gauge

We offer a variety of Single and Multi Trim Roll forming lines, slitting lines, hemmers, shears, folders and other additional equipment to speed up your trim production.

Trim Roll Forming Machine For Steel And Aluminum With Thickness Capacities Ranging From 30 To 16 Gauge

Trim Roll Forming Machine For Steel And Aluminum With Thickness Capacities Ranging From 30 To 16 Gauge
