High speed fully automatic corner beads rolling forming machine for drywall and ceiling

High speed and fully automatic corner beads rolling forming machine for drywall and ceiling is designed with high speed decoiler, punching machine, rolling forming machine and fully automatic stacker and package system. We can design the machine according to your requirements, here are some popular types for your reference.

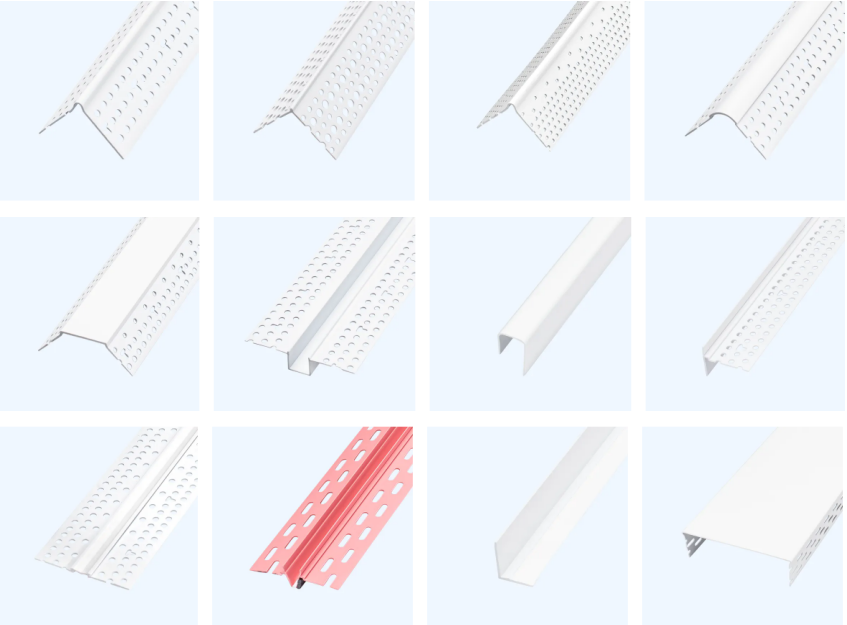

What are Corner Beads?

Corner beads give drywall installations a precision finish. A corner bead allows outside corners where two materials meet each other to be seamlessly joined without having to repeatedly cut and fill in the gap between them. Not only do corner beads provide a quality finish, they also improve the durability of your drywall. There are a multitude of options depending on the type of finish a project requires.

Metal Corner Beads

Metal corner beads are one of the more regularly used corner beads. Made from galvanized steel, they are rust resistant and provide a pointed corner for a clean finish. Metal corner beads can be installed in a variety of ways, including being nailed or screwed in, stapled or attached with an adhesive.

With slight modifications, they can be molded to curved arches. However, this flexibility also leaves them vulnerable to twisting during installation. The finish of a metal bead can also affect how well they can be mudded in. Certain finishes will perform better than others, which is why some suppliers will add a gypsum laminating paper to the outer face, assisting the finishing product to adhere to the bead.

Corner beads rolling forming machine

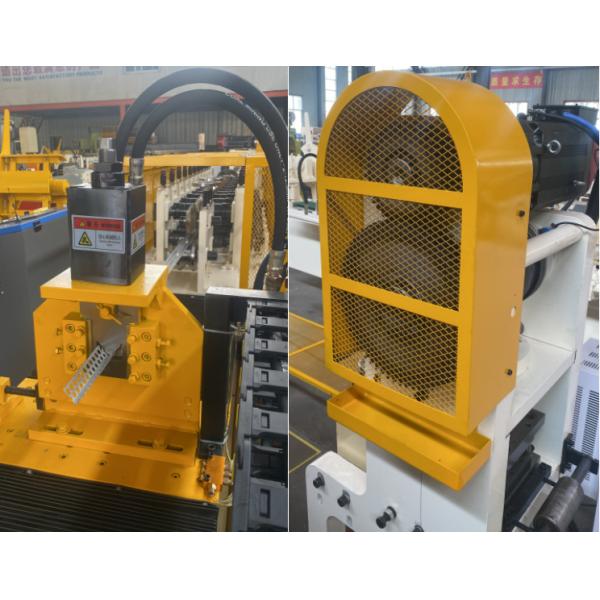

Features of High speed and fully automatic corner beads rolling forming machine:

1. Working speed with punching can reach 40 to 60 meter per minute.

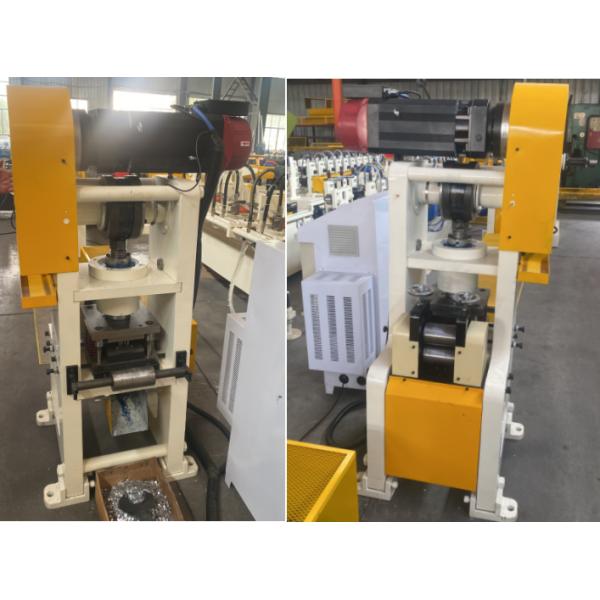

2. Punching machine small, lower noise and 200 times punching per minute.

3. With automatic package system.

4. Non-stop shearing to reach the high speed working.

5. Molding frame more durable and stable.

6. Easy to change molds for different types of punching.

7. With protection cover for safety when working.

8. When do the punching, it is neat and clean.

9. When rolling forming, D2 rollers to make sure long time to use.

If you need other type design, we can also make for you. By changing punching design, we can lower down the speed and then lower down the machine cost. Or increase the machine working speed by changing the punching type to rotary punching machine.

Here is corner beads rolling forming machine working video for your reference:
