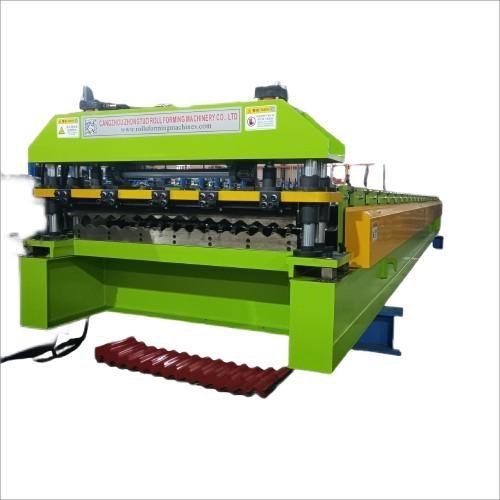

1000mm corrugated sheet roll forming machine Hydraulic Shearing
1000mm corrugated sheet roll forming machine Hydraulic Shearing
1000mm corrugated sheet roll forming machine Hydraulic Shearing
1000mm corrugated sheet roll forming machine Hydraulic Shearing
1000mm corrugated sheet roll forming machine Hydraulic Shearing
1000mm corrugated sheet roll forming machine Hydraulic Shearing
Specifications
Brand Name :
ZTRFM
Model Number :
ZTAC
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1 set
Price :
14500
Supply Ability :
30 sets per month
Delivery Time :
45 working days
Packaging Details :
nude with anti coil package
Product_Type :
roll forming machine
Product_Name :
Steel Sheet Roll Forming Machine
Recoiler :
5 Ton hydraulic recoiler
Product Effective Width :
1000mm
Shearing Type :
hydraulic post shearing
Controlling System :
PLC
Roller Station :
18 rpller station
Driven System :
by Chain
Width Control :
PLC setting
Material Expand Width :
1000-1250mm
Shearing :
hydraulic shearing
Slitting Piece :
5 to 10
Basic Steel :
Metal
Description

Sheet Corrugated Roll Forming Machine

Small corrugated metal profiles are durable yet weightless.In fact,we are working to profound the best machine to product corrugated or corrugated roof sheet machines.Highly popular for building the roof and side.Corrugated Metal Panels have more recently gained tremendous popularity as modern contemporary roofing and siding.

Our roofing sheets machine consists of decoiler, feeding and leveling device, per-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system).Produce standard products with yield strength up to 450Mpa,Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.

Here is one drawing profile and finished product:

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

What is a corrugated roofing sheet:

Corrugated metal roofing sheets are commonly used for roofing in a wide range of applications including roofing wall cladding,fences,and screens.

Household constructions such as houses,kiosks,shops,restaurants,etc,...

Industrial workshops such as warehouses,factories,offices,...

Public building such as hospitals,clinics,schools,commissars,departments,theater or amusement parks.

The corrugated metal sheet is designed into rolls,1200mm flat,is put into the corrugated roll forming machine.

Sheet Corrugated Roll Forming Machine

1000mm corrugated sheet roll forming machine Hydraulic Shearing

Process flow:

Decoiling→guide&manual pre-cutter→roll forming→cutting→run out table

1000mm corrugated sheet roll forming machine Hydraulic Shearing

Technical of the whole line:

5ton manual decoiler

1.Capacity:5ton

2.Coil diameter:450-550mm adjustable

3.Coil width:Max1350mm

4.Un-powered, manually control steel coil inner bore shrinkage and stop

Manual pre-cutter

 Pre-cutter is suitable for frequent replacement of steel coil equipment,cutting steel coil in advance for easy replacement and reducing the wast of steel coil.

Main forming machine

1.Main frame:400mm H beam structure, with 20mm thickness welded steel middle support plate.

2.Forming station:24 stations

3.Roller material:High grade 45# steel,chromed treatment,which makes the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life

4.Shaft material:High grade 45#,Tempering treatment, prevent deformed and improve the hardness

5.Shaft diameter:80mm,solid 6.Motor power:7.5kw 7.Speed:0-20m/min

8.Voltage:380V,50HZ,3P(Or as request)

9.Transmission:By 1inch double chain,Chinese famous brand HRB

Hydraulic cutting deivce

1.Blade material:Gcr12 quenched treatment 2.Length tolerance:±1mm

3.Hydraulic power:5.5kw

4.With air cooling system in the hydraulic station

5.Cutting feature:Steady and safe working condition and low sounds.

6.Oil tube and wires connection:All the tubes and wires will be marked by the numbers or letters,so that it will be easy to connect for the new.

Control system

1.Frequency converter:Delta

2.Screen:touch screen

3.PLC brand:Delta

4.Language:Chinese and English(Or as customers’ request)

5.Encoder:Omron

6.Feature:The control system support multi orders input,it can match different production needs

7.Functions:Cutting length control,cutting quantity control,and speed control
Run out table

1.Length:3m

2.Quantity:2sets
Spare parts
  1. Tool box:1 set
  2. 4pcs fuse, 2pcs travel switch,Chains 2pcs

Images:

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing

1000mm corrugated sheet roll forming machine Hydraulic Shearing
