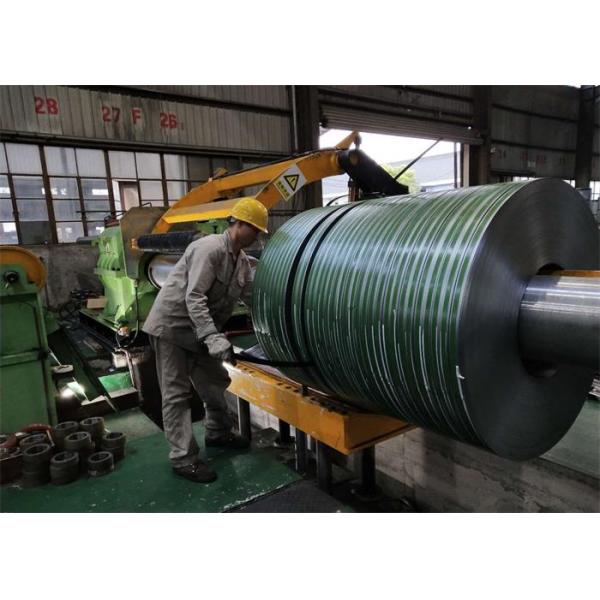

Full Automatic Steel Coil Metal Slitting Line Of Steel Slitter Machine Optional Width
Full Automatic Steel Coil Metal Slitting Line Of Steel Slitter Machine Optional Width
Specifications
Brand Name :
RISHBIN
Model Number :
RS 3.0-12.0
Certification :
CE
Place of Origin :
Wuxi， China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Cartoon
Product Name :
Metal Slitting Line
Number of Strip :
5～20
Slitting Accuracy :
±1.0mm
Width precision :
≤±0.05mm/2M
Raw material :
carbon steel,Stainless Sheet(Customized)
Material :
Special steel etc.
Description
Professional Metal Slitting Line Cost Effective ≥100mm Strip Width Minimum Burr
Quick Details:
  • Minimum Burr on strip.
  • Automatic Coil Loading
  • 2 complete slitting heads for quick offline tooling changeovers.
  • Straight edged recoiling.
  • Economic efficency due to high automation level.
  • Ease of Operation and Maintenance
  • Slitting Lines are available in different sizes and models as per the demands and specifications laid by the clients.
  • It is available in different capacities and standards according to the demand of the clients.
  • These Slitting Lines are widely appreciated amongst our clients for their user friendly designs and high resistance to temperature variations.
Metal Slitting Line Working procedure:
In the beginning, the coil is loaded on the coil car by crane and brought to the uncoiler by operating the coil car. Coil car centralizes the coil with the uncoiler mandrel and the coil is mounted on the uncoiler. Mandrel is expanded. Snubber roll rotates the coil. Peeler breaks the straps and brings the pre end upto Pinch roll. The Pinch roll drives the coil end upto the slitter. Then its drive is disconnected. Slitter moves the slitted strips further. Slitted strips are threaded through loop table and drag tensioner into the recoiler drum. Recoiler winds one turn on loose coil.
Then drag tensioner and loop are put into operation. Slitter and recoiler run simultaneously in synchronization. As the coil build up, the recoiler rpm correspondingly goes down to keep desired constant line speed. This process goes on until the end of coil on uncoiler. The slitted coil is pushed on the exit coil car through a pusher plate operated by hydraulic cylinder. The side slitted scrap is wound on the scrap winder units provided on both sides of the slitter.
Metal Slitting Line Specification:
Model No. RS 3.0-12.0 RS 4.0-16.0 RS 6.0-20.0
Coil Material CR Coils , HR Coils, S.S Steel Coils, GI Coils, AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 3.0～12.0mm 4.0～16.0mm 6.0～20.0mm
Line Speed 0～60m/min 0～50m/min 0-50m/min
Coil Weight ≤30T(35T) ≤30T(35T) ≤30T(35T)
Coil I.D φ508,φ610,φ760mm φ508,φ610,φ760mm φ508,φ610,φ760mm
Coil O.D ≤φ2200mm ≤φ2500mm ≤φ2500mm
Strip Width ≥100mm ≥100mm ≥100mm
Number of Strip 5～20 ≤5 ≤5
Slitting Accuracy ±1.0mm ±1.0mm ±1.0mm
Blade shaft Ф320 Ф340mm Ф360mm
Electrical Control System PLC Automatic control PLC Automatic control PLC Automatic control
COIL/ROLL DETAILS Material HR, CR, SS, GI, PPGI,
Tensile Strength δb≤550Mpa,δS≤260Mpa
Coil/Roll thickness 6-20mm
Steel Coil/Roll width 600-2500(Max)
Coil/Roll I.D Φ500-760 mm
Coil/Roll O.D Φ2500mm(Max)
Steel Coil/Roll Weight 35T(Max)

Slitter parameters

 knife pivot diameter Ф360 mm
Knife pivot material 40Cr
Blades specification Φ360mmXφ360mmX20mm
Blade material 6CrW2Si
Max slit quantity 4 pcs (16mm) 8 pcs(8mm)(Customized)
Width precision ≤±0.05mm/2M

Other parameters

 Power 380V/50Hz/3Ph(Customized)
Line speed 0-60m/min
Capacity 450 KW
Whole line Dimension 45m(L)X10m(W)
Line direction From right to left(Face to machine)
Machine color Blue

Full Automatic Steel Coil Metal Slitting Line Of Steel Slitter Machine Optional Width
