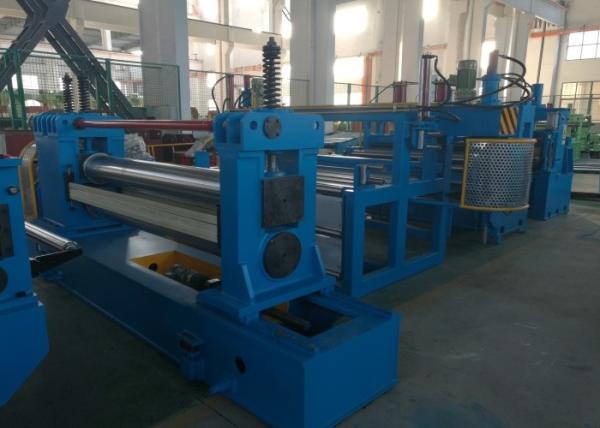

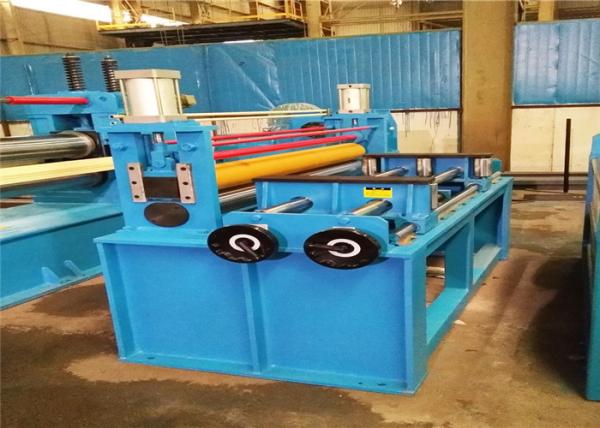

Medium Gauge Steel Sheet Slitting Machine Blade Shaft Ф300mm Knife Pivot Material 40Cr
Medium Gauge Steel Sheet Slitting Machine Blade Shaft Ф300mm Knife Pivot Material 40Cr
Medium Gauge Steel Sheet Slitting Machine Blade Shaft Ф300mm Knife Pivot Material 40Cr
Medium Gauge Steel Sheet Slitting Machine Blade Shaft Ф300mm Knife Pivot Material 40Cr
Specifications
Brand Name :
RISHBIN
Model Number :
RS 3.0-10.0
Certification :
CE
Place of Origin :
Wuxi， China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Cartoon
Product Name :
Medium Gauge Slitting Lines
Strip Width :
≥70mm
Coil I.D :
φ508,φ610,φ760mm
Blade shaft :
Ф300mm
Name :
Sheet steel slitting machinery
Application :
steel processing industry
Description
Medium Gauge Steel Slitting Line Blade Shaft Ф300mm Knife Pivot Material 40Cr

Medium Gauge Slitting Lines Characteristic Features:

  • Fully automatic strip threading systems
  • Special braking units for strips with high surface finish
  • Non-contact braking strips for the aluminum industry
  • Automatic knife change
  • Knife arbors with quadruple radial precision bearings
  • Automatic clamping and unclamping of the cutting tools on the knife arbor
  • Automatic strip strand transfer systems

Brief Introduction:

A slitting line will create multiple widths or “mults” from a wider master coil. The mults are made from predetermined widths. The slitter consists of three main parts: an uncoiler, slitter, and recoiler.

The material is fed from the uncoiler, through the nip between the two circular cutting wheels (one on top and another underneath), and then re-wound in slit mults on the recoiler. The slitting process has been referred to as part art and part science.

It is important that the equipment supplier and end user work in concert so the proper components, arbor size, tooling package, horsepower and tensions are suitable for the material to be slit.


Medium Gauge Slitting Lines Specification
Model No. RS 1.0-6.0 RS 2.0-8.0 RS 3.0-10.0
Coil Material CR Coils , HR Coils, S.S Steel Coils, GI Coils , AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 1.0～6.0mm 2.0～8.0mm 3.0～10.0mm
Line Speed 0～110m/min 0～50/80m/min 0-30/50m/min
Coil Weight ≤30T(35T) ≤30T(35T) ≤30T(35T)
Coil I.D Φ508,φ610,φ760mm Φ508,φ610,φ760mm φ508,φ610,φ760mm
Coil O.D ≤φ2200mm ≤φ2200mm ≤φ2200mm
Strip Width ≥30mm ≥50mm ≥70mm
Number of Strip 4～15 5～20 5～18
Slitting Accuracy ±0.3mm ±0.3mm ±0.3mm
Blade shaft Ф260mm Ф280mm Ф300mm
Electrical Control System PLC Automatic control PLC Automatic control PLC Automatic control

Customized slitting lines for every different kind of metal strip and in all required dimensions would be available.

Medium Gauge Slitting Lines Main Technical Specifications

COIL/ROLL DETAILS Material HR, CR, SS, GI, PPGI, Copper
Tensile Strength δb≤600Mpa,δS≤360Mpa
Coil/Roll thickness 1-10mm
Steel Coil/Roll width 500-2200(Max)
Coil/Roll I.D Φ500-760 mm
Coil/Roll O.D Φ2000mm(Max)
Steel Coil/Roll Weight 35T(Max)



Slitter parameters

 knife pivot diameter Ф220 mm
Knife pivot material 40Cr
Blades specification Φ220mmXφ360mmX20mm
Blade material 6CrW2Si
Max slit quantity 4 pcs (4mm) 20 pcs(1mm)
Width precision ≤±0.05mm



Other parameters

 Power 380V/50Hz/3Ph(Customized)
Line speed 0-80m/min
Capacity 360 KW
Whole line Dimension 45m(L)X10m(W)
Line direction From right to left(Face to machine)
Machine color Blue

Medium Gauge Steel Sheet Slitting Machine Blade Shaft Ф300mm Knife Pivot Material 40Cr

Medium Gauge Steel Sheet Slitting Machine Blade Shaft Ф300mm Knife Pivot Material 40Cr
