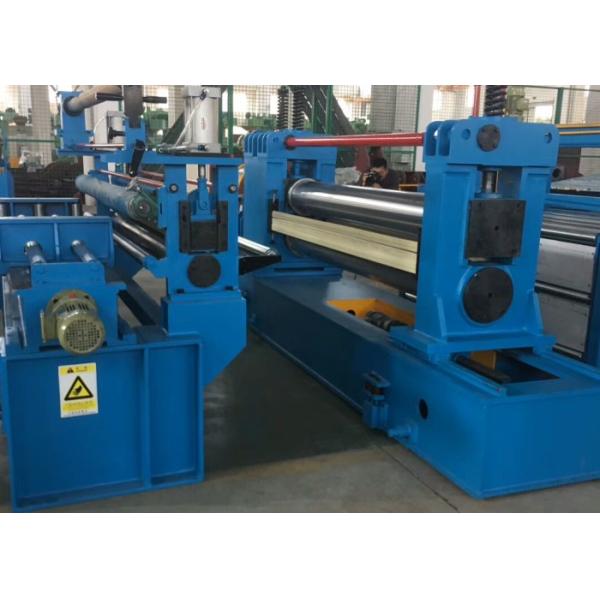

Optional Color Steel Coil Slitting Line , Sheet Metal Slitter Machine
Optional Color Steel Coil Slitting Line , Sheet Metal Slitter Machine
Specifications
Brand Name :
RISHBIN
Model Number :
RS 1.0-6.0
Certification :
CE
Place of Origin :
Wuxi， China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Cartoon
Product Name :
Steel Coil Slitting Line
Blade shaft :
Ф260mm
Coil/Roll I.D :
Φ500-760 mm
knife pivot diameter :
Ф220 mm
Name :
Sheet steel slitting machinery
Color :
Optional
Description
35T Max Steel Coil Slitting Machine 0-110m/min Capacity 360 KW High Slitting Accuracy
Introduction

Slitting is also a shearing process, but rather than making cuts at the end of a workpiece like shearing, slitting us used to cut a wide coil of metal into a number of narrower coils as the main coil is moved through the slitter. During the slitting process, the metal coil passes lengthwise through the slitter's circular blades.

Slitting can be used equally well for both sheet or coil rolls.

Slitting blades are designed depending on the job required. The three critical determinants of the blade configuration include:

  1. The workpiece material thickness
  2. The type of material to be slit
  3. The tolerances that must be held while slitting.
  • The thickness can range from the thinnest down to 1.0 mm, to the thickest up to 10mm
  • Strip Width, from the narrowest 400 mm to the widest 2200 mm
  • Coils Weight, up to 35 tons
  • Line Speed, up to 100 m/min.
  • Operator Safety.
  • Highest Production Outcome
  • Ease of Operation and Maintenance
Medium Gauge Slitting Lines​ Working procedure:
In the beginning, the coil is loaded on the coil car by crane and brought to the uncoiler by operating the coil car. Coil car centralizes the coil with the uncoiler mandrel and the coil is mounted on the uncoiler. Mandrel is expanded. Snubber roll rotates the coil. Peeler breaks the straps and brings the pre end upto Pinch roll. The Pinch roll drives the coil end upto the slitter. Then its drive is disconnected. Slitter moves the slitted strips further. Slitted strips are threaded through loop table and drag tensioner into the recoiler drum. Recoiler winds one turn on loose coil.
Then drag tensioner and loop are put into operation. Slitter and recoiler run simultaneously in synchronization. As the coil build up, the recoiler rpm correspondingly goes down to keep desired constant line speed. This process goes on until the end of coil on uncoiler. The slitted coil is pushed on the exit coil car through a pusher plate operated by hydraulic cylinder. The side slitted scrap is wound on the scrap winder units provided on both sides of the slitter.
Medium Gauge Slitting Lines Specification
Model No. RS 1.0-6.0 RS 2.0-8.0 RS 3.0-10.0
Coil Material CR Coils , HR Coils, S.S Steel Coils, GI Coils , AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 1.0～6.0mm 2.0～8.0mm 3.0～10.0mm
Line Speed 0～110m/min 0～50/80m/min 0-30/50m/min
Coil Weight ≤30T(35T) ≤30T(35T) ≤30T(35T)
Coil I.D Φ508,φ610,φ760mm Φ508,φ610,φ760mm φ508,φ610,φ760mm
Coil O.D ≤φ2200mm ≤φ2200mm ≤φ2200mm
Strip Width ≥30mm ≥50mm ≥70mm
Number of Strip 4～15 5～20 5～18
Slitting Accuracy ±0.3mm ±0.3mm ±0.3mm
Blade shaft Ф260mm Ф280mm Ф300mm
Electrical Control System PLC Automatic control PLC Automatic control PLC Automatic control

Customized slitting lines for every different kind of metal strip and in all required dimensions would be available.

Medium Gauge Slitting Lines Main Technical Specifications

COIL/ROLL DETAILS Material HR, CR, SS, GI, PPGI, Copper
Tensile Strength δb≤600Mpa,δS≤360Mpa
Coil/Roll thickness 1-10mm
Steel Coil/Roll width 500-2200(Max)
Coil/Roll I.D Φ500-760 mm
Coil/Roll O.D Φ2000mm(Max)
Steel Coil/Roll Weight 35T(Max)



Slitter parameters

 knife pivot diameter Ф220 mm
Knife pivot material 40Cr
Blades specification Φ220mmXφ360mmX20mm
Blade material 6CrW2Si
Max slit quantity 4 pcs (4mm) 20 pcs(1mm)
Width precision ≤±0.05mm



Other parameters

 Power 380V/50Hz/3Ph(Customized)
Line speed 0-80m/min
Capacity 360 KW
Whole line Dimension 45m(L)X10m(W)
Line direction From right to left(Face to machine)
Machine color Blue
