Up To 60 M / Min Steel Coil Slitting Machine ±1.0mm Slitting Accuracy Up To 35 Tons Coils
Up To 60 M / Min Steel Coil Slitting Machine ±1.0mm Slitting Accuracy Up To 35 Tons Coils
Specifications
Brand Name :
RISHBIN
Model Number :
RS 6.0-20.0
Certification :
CE
Place of Origin :
Wuxi， China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Cartoon
Product Name :
Steel Sheet Slitting Machine
Coils Weight :
up to 35 tons
Slitting Accuracy :
±1.0mm
Line Speed :
up to 60 m/min
Color :
Requirement
Type :
Coil Slitting line
Description

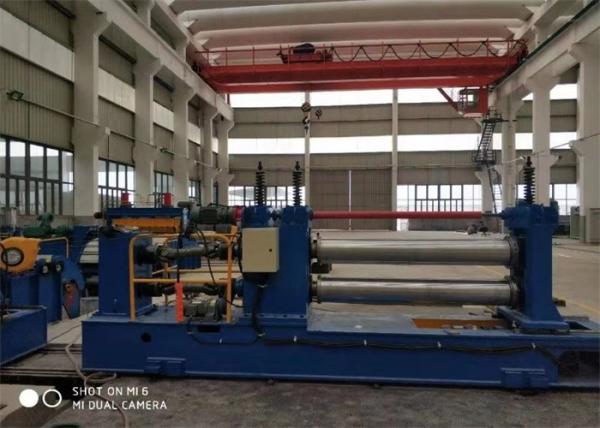

Up To 60 M/Min Coil Slitting Machine ±1.0mm Slitting Accuracy Up To 35 Tons Coils
Steel Sheet Slitting Machine​ Introduction
High Precision Easy Operate Steel Coil Slitting Machine is used to uncoiling, slitting, recoiling the steel rolls into demand width steels. It can be applied to process the cold or hot rolled steel coil, Silicon steel coils, tinplate coils, Stainless steel and color coated steels.

1. Structure:aluminum coil steel slitting machine is compose of Decoiler, feeding device, slitting machine, recoiler (Rewinding) machine.
2. Function of aluminum coil steel slitting machine: It is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.

3. Advantages :aluminum coil steel slitting machine is convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.

4. Application: galvanized steel, stainless steel tinplate, silicon steel ,copper and aluminum, etc.
can be applied to: steel factory, transformer, electrical motor, electrical equipment, car, building materials, door, packaging industries.

  • High availability
  • Low operating costs
  • High automation level to reduce non-productive times
  • Flexibility from customer-specific arrangement and design
  • Separate coil preparation system
  • Tool change turnstile to minimize the program change times
  • Edge scrap shear with hydraulically operated knife heads in tapered polygonal design for rapid knife head change
  • High quality of the final product

RISHBIN provides decades of experience from numerous lines supplied to well-known customers worldwide. Many years of experience in the design, manufacture and commissioning sectors demonstrate our expertise in supplying customer-oriented solutions.

To help you achieve your own production capacity target, RISHBIN Slitter supplies many options, such as high speed slitting, medium speed slitting, etc. All slitters are easy to operate. They are very reliable, steady performers for both short and long terms running productions.
The thickness can range from the thinnest down to 3.0 mm, to the thickest up to 20 mm
Strip Width, from the narrowest 400 mm to the widest 2500 mm
Coils Weight, up to 35 tons
Line Speed, up to 60 m/min.
Steel Sheet Slitting Machine​ Specification:
Model No. RS 3.0-12.0 RS 4.0-16.0 RS 6.0-20.0
Coil Material CR Coils , HR Coils, S.S Steel Coils, GI Coils, AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 3.0～12.0mm 4.0～16.0mm 6.0～20.0mm
Line Speed 0～60m/min 0～50m/min 0-50m/min
Coil Weight ≤30T(35T) ≤30T(35T) ≤30T(35T)
Coil I.D φ508,φ610,φ760mm φ508,φ610,φ760mm φ508,φ610,φ760mm
Coil O.D ≤φ2200mm ≤φ2500mm ≤φ2500mm
Strip Width ≥100mm ≥100mm ≥100mm
Number of Strip 5～20 ≤5 ≤5
Slitting Accuracy ±1.0mm ±1.0mm ±1.0mm
Blade shaft Ф320 Ф340mm Ф360mm
Electrical Control System PLC Automatic control PLC Automatic control PLC Automatic control
COIL/ROLL DETAILS Material HR, CR, SS, GI, PPGI,
Tensile Strength δb≤550Mpa,δS≤260Mpa
Coil/Roll thickness 6-20mm
Steel Coil/Roll width 600-2500(Max)
Coil/Roll I.D Φ500-760 mm
Coil/Roll O.D Φ2500mm(Max)
Steel Coil/Roll Weight 35T(Max)

Slitter parameters

 knife pivot diameter Ф360 mm
Knife pivot material 40Cr
Blades specification Φ360mmXφ360mmX20mm
Blade material 6CrW2Si
Max slit quantity 4 pcs (16mm) 8 pcs(8mm)(Customized)
Width precision ≤±0.05mm/2M

Other parameters

 Power 380V/50Hz/3Ph(Customized)
Line speed 0-60m/min
Capacity 450 KW
Whole line Dimension 45m(L)X10m(W)
Line direction From right to left(Face to machine)
Machine color Blue
