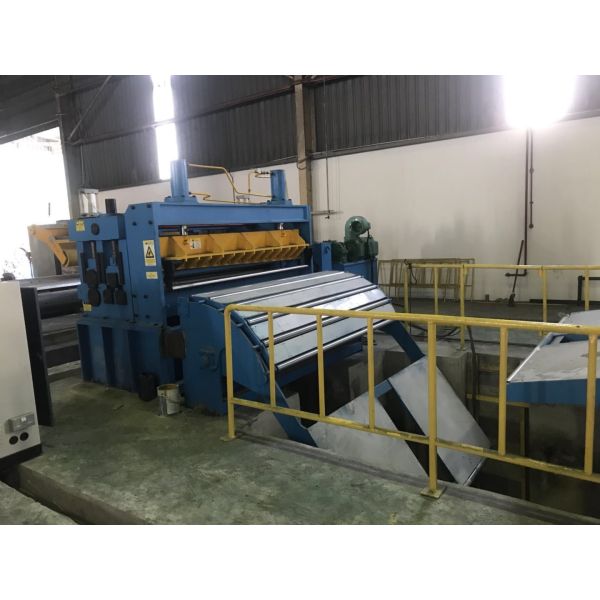

Metal High Speed Coil Slitting Machine VF Speed Adjusting 0～50/80m / Min
Metal High Speed Coil Slitting Machine VF Speed Adjusting 0～50/80m / Min
Specifications
Brand Name :
RISHBIN
Model Number :
RS 2.0-8.0
Certification :
CE
Place of Origin :
Wuxi， China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Cartoon
Product Name :
Stainless Steel Slitting Machine
Coil Thickness :
2.0～8.0mm
Line Speed :
0～50/80m/min
Strip Width :
≥50mm
Number of Strip :
4～15
Slitting Accuracy :
±0.3mm
Description
Metal High Speed Coil Slitting Machine VF Speed Adjusting 0～50/80m/min
  • The pre is equipped with DC Various Speed motor drive, so that a synchronized speed cooperate to the production line could be governed.
  • Slitting knives are mounted on integrated frame with a separated 1 transmission that means enhanced rigidity structure of Machine, lower vibration amplitude of knives, and excellent yields could be produced.
  • The datum plane and accuracy of sitting knives axes are all to be fabricated within 0.006mm in tolerance, so that makes higher duration of slitting knives and much excellent, accuracy of outputs of the slitting line.
  • For securing the stability of slitting line during operation, the tension controlled roll up device with slip differential structure is designed for the water.
Stainless Steel Slitting Machine​ Introduction
PLC automatic controlling, VF speed adjusting, touch screen operation
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements.
RISHBIN medium gauge slitting lines are capable of handling heavy coils that can weigh up to 35 tons, and run at 70 meters per minute, which ensures efficient production.
  • The thickness can range from the thinnest down to 1.0 mm, to the thickest up to 10mm
  • Strip Width, from the narrowest 400 mm to the widest 2200 mm
  • Coils Weight, up to 35 tons
  • Line Speed, up to 100 m/min.
  • Operator Safety.
  • Highest Production Outcome
  • Ease of Operation and Maintenance
Stainless Steel Slitting Machine​ Specification
Model No. RS 1.0-6.0 RS 2.0-8.0 RS 3.0-10.0
Coil Material CR Coils , HR Coils, S.S Steel Coils, GI Coils , AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 1.0～6.0mm 2.0～8.0mm 3.0～10.0mm
Line Speed 0～110m/min 0～50/80m/min 0-30/50m/min
Coil Weight ≤30T(35T) ≤30T(35T) ≤30T(35T)
Coil I.D Φ508,φ610,φ760mm Φ508,φ610,φ760mm φ508,φ610,φ760mm
Coil O.D ≤φ2200mm ≤φ2200mm ≤φ2200mm
Strip Width ≥30mm ≥50mm ≥70mm
Number of Strip 4～15 5～20 5～18
Slitting Accuracy ±0.3mm ±0.3mm ±0.3mm
Blade shaft Ф260mm Ф280mm Ф300mm
Electrical Control System PLC Automatic control PLC Automatic control PLC Automatic control

Customized slitting lines for every different kind of metal strip and in all required dimensions would be available.

Stainless Steel Slitting Machine Main Technical Specifications

COIL/ROLL DETAILS Material HR, CR, SS, GI, PPGI, Copper
Tensile Strength δb≤600Mpa,δS≤360Mpa
Coil/Roll thickness 1-10mm
Steel Coil/Roll width 500-2200(Max)
Coil/Roll I.D Φ500-760 mm
Coil/Roll O.D Φ2000mm(Max)
Steel Coil/Roll Weight 35T(Max)



Slitter parameters

 knife pivot diameter Ф220 mm
Knife pivot material 40Cr
Blades specification Φ220mmXφ360mmX20mm
Blade material 6CrW2Si
Max slit quantity 4 pcs (4mm) 20 pcs(1mm)
Width precision ≤±0.05mm



Other parameters

 Power 380V/50Hz/3Ph(Customized)
Line speed 0-80m/min
Capacity 360 KW
Whole line Dimension 45m(L)X10m(W)
Line direction From right to left(Face to machine)
Machine color Blue
