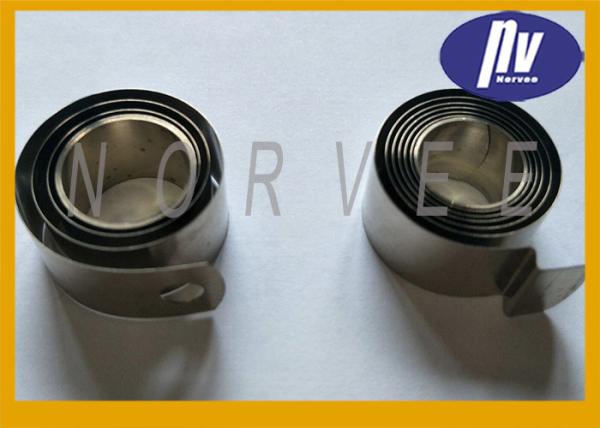

Variable / Constant Force Steel Spiral Spring For Tobacco Shelf Pusher
Variable / Constant Force Steel Spiral Spring For Tobacco Shelf Pusher
Variable / Constant Force Steel Spiral Spring For Tobacco Shelf Pusher
Variable / Constant Force Steel Spiral Spring For Tobacco Shelf Pusher
Specifications
Brand Name :
NV
Model Number :
NV-0015
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
negotiation
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
2 000 000PCS/month
Delivery Time :
10 to 14 work days
Packaging Details :
carton packing
name :
variable force spring
Force :
3N,4N
Tolerance :
0.01mm
Thickness :
0.08-1.8mm
length :
100mm to 900mm
width :
10mm to 30mm
Description

variable or constant force steel Spiral spring for tobacco shelf pusher

Springs'Specifications:

Style:

Spiral

Load Type:

Torsion

Material:

Stainless Steel, Stainless steel or carbon steel

Usage:

dispenser,vending machine etc.

OEM service:

Yes

Samples:

Provide

Colours:

Yellow,black,white as your request

Width:

1MM-250MM

Thickness:

0.08MM-8MM

Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length of springs Free length as you need
Surface treatment Zinc plated, nickel plated, black coating,also can be done as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008
Advantage High quality, competitive prices,automatic production equipment, , safe package and fast delivery

Why Choose us?

1. We can provide reasonable price ,fast shipping,timely delivery ,continue developing advancing and innovation.

2. The customers can get high quality products , preferential price , and good service from our company.

3. Our company sincerely welcomes customers from both home and abroad to contact with us.

Applications for power springs

· Tobacco shelf pusher

· seatbelt retractors

· tape measures

· retractable dog leads

· electrical cord retractors

· hose reels

· wind-up toys

· pull start on small gas-powered engines

· tool balancers

Variable / Constant Force Steel Spiral Spring For Tobacco Shelf Pusher

Our service:

1. Can design for you

2. Advanced equipments of Springs

3. High quality with competitve price

4. Safe package

5. Fast delivery

Clock spring

The clock spring (also referred to as a flat torsion spring) is designed to produce a torsional force (circular movement). In contrast to the tightly coiled motor spring on the previous page, the clock spring has open coils that, when mounted correctly, reduces fricton to zero. However, torque capacity is reduced as a result. The standard range is made from rounded edge stainless steel, which affords a better fatigue life.

Constant force spring

The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.
