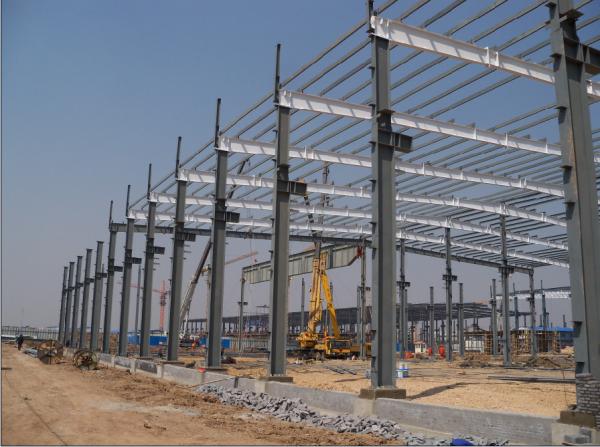

EPS 50MM Double Sheet 3.2m Steel Structure Warehouse Metal Frame
EPS 50MM Double Sheet 3.2m Steel Structure Warehouse Metal Frame
EPS 50MM Double Sheet 3.2m Steel Structure Warehouse Metal Frame
EPS 50MM Double Sheet 3.2m Steel Structure Warehouse Metal Frame
Specifications
Brand Name :
KAFAFAB
Model Number :
Steel structure warehouse
Certification :
ISO 9001
Place of Origin :
Qingdao, China
MOQ :
1000 square meter
Price :
USD 45~60/sqm
Payment Terms :
L/C, T/T
Supply Ability :
20000 square meter per Month
Delivery Time :
40 days after deposit and shop drawing confirmed
Packaging Details :
Nude pack or steel pallet
Material :
Welded H beam
Surface treatment :
Alkyd primer, DFT 80um
Structure :
Portal structure frame
Wall :
EPS 50MM
Roof :
EPS 50MM
Downpipe :
110mm diameter, PVC
Life time :
50 years
Dimension :
80*60M*80(Length*width*eave height)
Door :
Sliding door
Window :
PVC
Cannopy :
Frame+double sheet, 3.2m length
Brick wall :
1.2m height
Description

Steel frame metal building prefab structure warehouse

Industrial building

Industrial buildings/manufacturing facilities have always been an important pillar of metal construction. Metal and steel structures, including prefabricated steel structures, are available in various designs and spans to meet any requirements for such facilities, including crane construction.

Our customers appreciate our extensive knowledge in the design and manufacturing of industrial-related buildings worldwide. We provide a variety of industrial metal buildings, including warehouses, manufacturing facilities, and factory generator or compressor buildings. Industry-leading experience enables us to provide high-quality products with precise standards and specifications at competitive prices.

When a large and open floor space is required, rigid beam-column metal buildings provide the most economical solution. This type of building is very suitable for warehouses or other industrial applications. The rigid twelve-inch purlins provide an economical solution for spacing up to 40 feet apart, thereby eliminating the need for joist joists.

Industrial structures usually use top-running cranes, suspension cranes, monorail cranes, jib cranes and gantry cranes. Rigidity can design steel structure buildings to support any combination of these cranes to meet customer requirements.

>> Main parts of the steel structures and technical parameters:

Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.4mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.8mm color steel plate
Rainspout pipes Φ160 PVC pipe

Advantages of steel warehouse

flexibility:
The steel warehouse is made of high-grade steel and can accommodate a 300-foot wide clear span, which is an achievement that is difficult to achieve in a cost-effective manner using most other building materials and methods. The steel warehouse building does not require internal columns or load-bearing walls, which allows you to have greater flexibility in the design and layout of the facility, and provides more space for storing goods.

Durability:
The steel warehouse is made of non-combustible high-quality steel. The steel structure is certified and manufactured by engineers and can meet or exceed your local building codes to withstand weather factors

Construction speed:
Steel structure buildings are pre-designed and can be erected and completed faster than other more conventional construction methods and materials.

economic:
Compared with traditional buildings with similar size structures, using steel structures for warehouses in Steel Structure can save the company time and money. If you consider the long-term maintenance and repair costs, Taiwei's steel structure buildings can save you more money because our buildings are carefully designed to resist element and material erosion.
