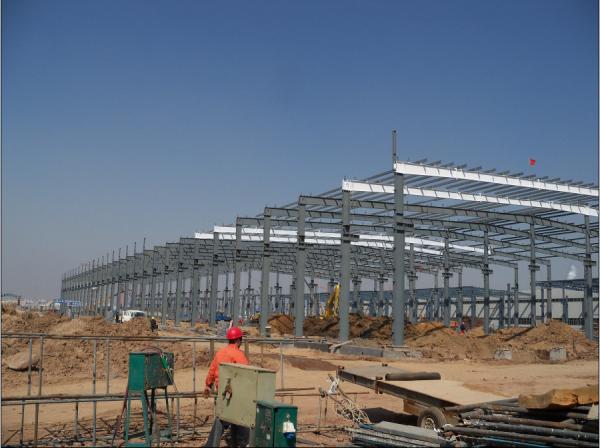

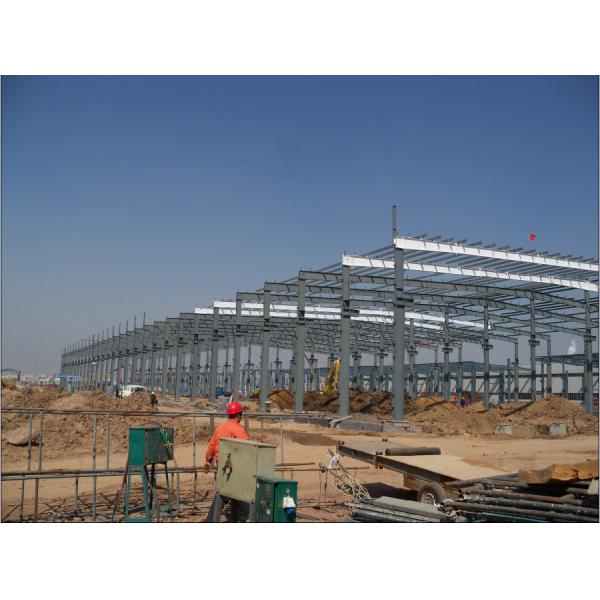

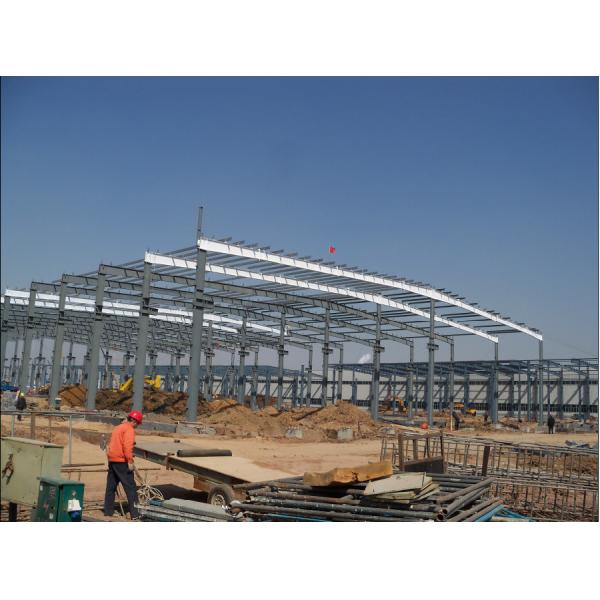

Grade 10.9 Portal Structure Frame Q235 Steel Structure Warehouse
Grade 10.9 Portal Structure Frame Q235 Steel Structure Warehouse
Grade 10.9 Portal Structure Frame Q235 Steel Structure Warehouse
Grade 10.9 Portal Structure Frame Q235 Steel Structure Warehouse
Specifications
Brand Name :
KAFAFAB
Model Number :
Steel structure warehouse
Certification :
ISO 9001
Place of Origin :
Qingdao, China
MOQ :
1000 square meter
Price :
USD 45~60/sqm
Payment Terms :
L/C, T/T
Supply Ability :
20000 square meter per Month
Delivery Time :
40 days after deposit and shop drawing confirmed
Packaging Details :
Nude pack or steel pallet
Material :
Welded H beam
Surface treatment :
Alkyd primer, DFT 80um
Structure :
Portal structure frame
Wall :
EPS 50MM
Roof :
EPS 50MM
Downpipe :
110mm diameter, PVC
Life time :
50 years
Dimension :
80*60M*80(Length*width*eave height)
Door :
Sliding door
Window :
PVC
Cannopy :
Frame+double sheet, 3.2m length
Brick wall :
1.2m height
Description

Grade 10.9 Portal Structure Frame Q235 Steel Structure Warehouse

Grade 10.9 Portal Structure Frame Q235 Steel Structure WarehouseGrade 10.9 Portal Structure Frame Q235 Steel Structure Warehouse

Product description

As a new type of building system, steel structure is widely used in workshops, warehouses, farms, villas, showrooms, especially houses. The steel structure is formed by the main steel frame composed of H-shaped steel, Z-shaped steel and U-shaped steel, roof and walls, various panels and other components (such as doors and windows). The biggest advantage is that it saves construction costs and time, while providing you with a comfortable room.


In addition to steel structure buildings, we can also design and produce non-standard steel materials according to customer requirements. For example, prefabricated steel, steel fence, steel frame, steel grating, steel bar, steel stairs, steel ladder, steel platform, steel box, steel lug, steel ring, steel formwork, safety steel fence, airport steel fence, etc.

>> Main parts of the steel structures and technical parameters:

Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.4mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.8mm color steel plate
Rainspout pipes Φ160 PVC pipe

Advantages of steel structure warehouse

1. The tensile strength of steel is much greater than that of concrete.
2. Steel is also ductile in nature.
3. Compared with concrete, steel also has a higher strength-to-weight ratio.
4. When the time span is small, steel structure is also preferred. The construction speed is very fast.
5. The steel bars can also be reused.
6. The steel structure can extend in any direction.
7. Compared with concrete columns, steel columns are smaller, so doing so can provide more space for other functions.
8. Because steel structure is lighter than concrete, the cost of use is reduced and the foundation of the structure becomes cheaper.
9. Steel structure is cost-effective

If you provide this price, I can quote you:

1. Dimensions: length, width, height, etc.

2. Doors and windows: size, quantity, location.

3. Materials on the roof and walls.

4. Local climate: wind speed, snow load, earthquake intensity, etc.

5. If you have other requirements, please also notify us.

6. It is better to have your own drawings, please send me.
