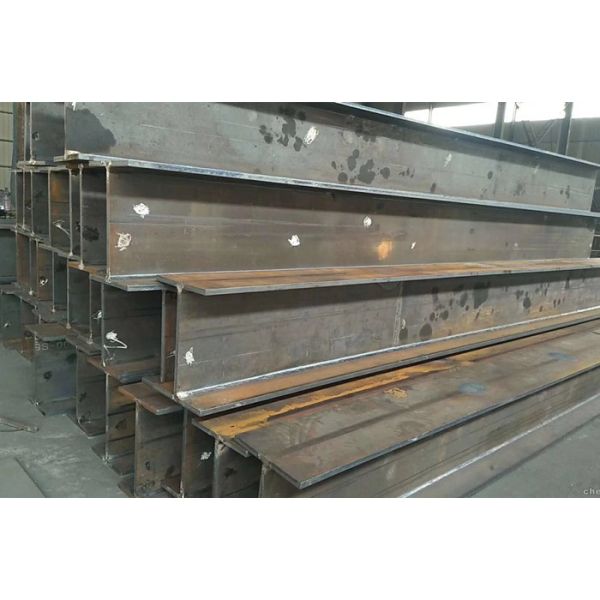

Hot Rolled Submerged Arc Q355B G350 WB Welded H Beam
Hot Rolled Submerged Arc Q355B G350 WB Welded H Beam
Specifications
Brand Name :
KAFA
Model Number :
WB-01
Certification :
ISO SGS
Place of Origin :
Qingdao, China
MOQ :
20Tons
Price :
750~850 usd/T
Payment Terms :
L/C, T/T
Supply Ability :
5000t/month
Delivery Time :
within 20 days
Packaging Details :
In nude
Material :
Hot rolled steel plate
Grade :
Q355B (G350) Q235B (G250)
Welding :
submerged-arc welding
Welding type :
Deep penetration welding
Straighten :
80 hydraulic pressure straighting Machine
Cutting :
Flame cutting
Description

Australian standard WB welded H beam

Welded H-beam
Welding H-shaped steel is named after the H-shaped cross section produced by the welding process. It is divided into submerged arc welding H-shaped steel and high-frequency welding H-shaped steel. Submerged arc welding H-shaped steel adopts process: steel plate-automatic slitting-assembly-automatic submerged arc welding-flaw detection-flange correction-web correction-end surface processing-sand blasting and rust removal-painting . The automatic submerged arc welding production line is controlled by a microcomputer to ensure the dimensional accuracy of the H-shaped steel produced, and the quality of the welds meets the national standards.
Sectional Dimension Kg/m Sectional Dimension Kg/m
100*50*5*7 9.54 344*354*16*16 131
100*100*6*8 17.2 346*174*6*9 41.8
125*60*6*8 13.3 350*175*7*11 50
125*125*6.5*9 23.8 344*348*10*16 115
148*100*6*9 21.4 350*350*12*19 137
150*75*5*7 14.3 388*402*15*15 141
150*150*7*10 31.9 390*300*10*16 107
175*90*5*8 18.2 394*398*11*18 147
175*175*7.5*11 40.3 400*150*8*13 55.8
194*150*6*9 31.2 396*199*7*11 56.7
198*99*4.5*7 18.5 400*200*8*13 66
200*100*5.5*8 21.7 400*400*13*21 172
200*200*8*12 50.5 400*408*21*21 197
200*204*12*12 72.28 414*405*18*28 233
244*175*7*11 44.1 440*300*11*18 124
244*252*11*11 64.4 446*199*7*11 66.7
248*124*5*8 25.8 450*200*9*14 76.5
250*125*6*9 29.7 482*300*11*15 115
250*250*9*14 72.4 488*300*11*18 129
250*255*14*14 82.2 496*199*9*14 79.5
294*200*8*12 57.3 500*200*10*16 89.6
300*150*6.5*9 37.3 582*300*12*17 137

Hot Rolled Submerged Arc Q355B G350 WB Welded H Beam

Advantage
It can be processed, designed and combined arbitrarily with the project, and special specifications can be manufactured to meet the actual needs of special projects.
H-shaped steel specifications are economically designed, and its section moment, section coefficient, pressure resistance, and load-bearing capacity are much higher than that of hot-rolled section steel with the same unit weight.
