Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Benin multi-span steel workshop building with big cannopy and parapet
Specifications
Brand Name :
KAFA
Model Number :
WH-0214
Certification :
ISO BV
Place of Origin :
Qingdao, China
MOQ :
1000sqms
Price :
50~70usd/sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sqms/month
Delivery Time :
40days
Packaging Details :
In nude
Material :
Welded H beam
Sand blasting :
Sa.2.0
Roof :
0.5corlor bond+100mm glass wool
Wall :
0.5mm corlor bond +100mm glass wool+0.4 corlor bond metal sheet
Crane :
8pcs*5T
Application :
Brick manufacture
Cannopy :
15*6m
Parapet :
2.3m
Description

Benin steel workshop building with big cannopy and parapet

1 Dimension: 120*40*10m

2 Roof panel: 0.5corlor bond+100mm glass wool

3 Wall panel: 0.5mm corlor bond +100mm glass wool+0.4 corlor bond metal sheet

4 Total value: 267400usd

5 Window: PVC windows

6 Gutter: 1.0 stainless steel gutter

7 Door: Sliding door 6*5m

8 Delivery time: within 45 days

9 Steel structure weight: 145Tons

Benin multi-span steel workshop building with big cannopy and parapetBenin multi-span steel workshop building with big cannopy and parapet

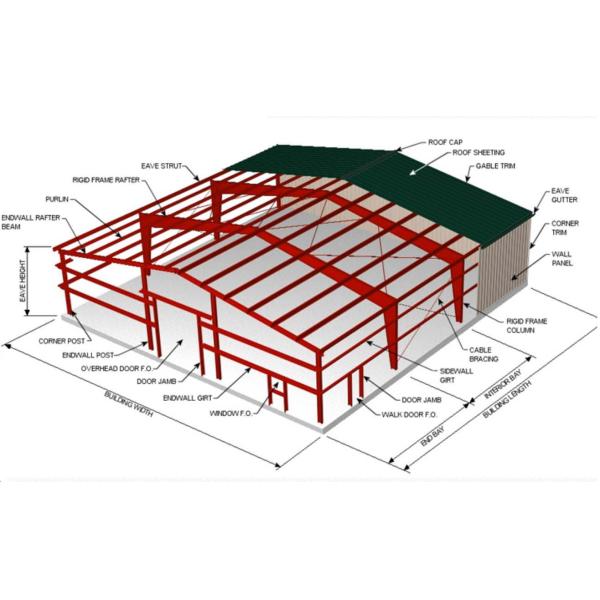

BUIDING SYSTEM

Benin multi-span steel workshop building with big cannopy and parapet

SPECIFICATIONS

MAIN PART ITEM SPECIFICATION
Main Steel Frame Steel Beam Q235/Q345B
H shape steel, alkyd/epoxy zinc-rich painting primary painting in twice
Main Column Q235/Q345B
H shape steel, alkyd/epoxy zinc-rich painting primary painting in twice
Wind Column Q235/Q345B
H shape steel, alkyd/epoxy zinc-rich painting primary painting in twice
Supporting System Brace Q235/Q345B, angle steel or circular steel tube, process and paited
Roof Purlin Q235/Q345B, C or Z shape steel, alkyd painting/hot dip galvanized
Wall Purlin Q235/Q345B, C or Z shape steel, alkyd painting/hot dip galvanized
Tie Bar Q235/Q345B, Φ114x3 round steel tube, process and painted
Sag Rod Q235/Q345B, Φ12 round steel, process and painted
Roof Cladding Color corrugate steel sheet, EPS sandwich panel, rock wool, PU, glass wool
Wall Claddding Color corrugate steel sheet, EPS sandwich panel, rock wool, PU, glass wool
Accessories Bolts Ordinary, high strength, stud bolts, anchor bolts
Butter 0.5mm galvanized/prepainted steel plate, stainless steel
Windows Aluminum alloy-glass, aluminum alloy-shutter, PVC
Doors Sliding sandwich panel/ steel door, rolling shutter door
Floor Deck #600, #688, #720, T:0.7-1.2mm thick color corrugated steel plate
Down pipes VC pipe or steel sheet material or aluminum pipe
Roof Ridge Color steel sheet
Edge Cover 0.5mm color steel sheet
Skylighting FRP light transfer belt
Ventilator Exhaust fan, ventilation louvers
Crane Crane in 5 tons to 20 tons
Design Parmameters Building Size Length(m)*Width(m)*Eave Height(m)
Local Weather Wind load, Snow load, earthquake magnitude
Roof and wall panel With or without insulation for roof and wall
Bearing Make the house resisting heavy wind by 120km/h and 8 grade earthquake
Protection Color steel sandwich panel has a good fire proof and heat insulation performance
Packing Main steel frame loaded in 40'OT, roof and wall panels loaded in 40'HQ
