Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Quick Build Building Kits Assemble Metal Prefab Steel Warehouses
Specifications
Brand Name :
KXD Steel Structure
Model Number :
WH2766
Place of Origin :
China
Certification :
ISO9001:2008
MOQ :
200 square meters
Price :
30-80 USD per sqm
Packaging Details :
Steel Pallet Or In Bulk
Delivery Time :
35-55 days
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
15000 tons Per Month
Dimension :
Customers' Requirement
Raw Steel Material :
Q235B, Q355B
Purlin :
Galvanized C or Z type steel
Function :
Warehouse, Workshop
Features :
Steel Frame Warehouse
Roof&wall thickness :
Around 50mm 75mm 100mm 120mm 150mm 200mm;
Roof & wall cladding  :
EPS ,Glass Wool, Rock Wool, PU
Door Type :
Roller Shutter Door Or Sliding Door
Application :
Steel Fabricated House
Color :
blue,Required,red,gray
Surface treatment :
Hot-Dip Galvanization or Paint
Drawing design :
Tekla Structures(Xsteel)V12.0.etc,AutoCAD /PKPM /3D3S/TEKLA
Installation :
Installation drawing or engineer guide
Application fields :
Steel Structural Fabrication Construction,mulit-floor building,storage,commercial
Name :
Steel frame warehouse
Column and beam :
hot rolled or welded H section,Welded H-section,I section etc.
Wall :
Sandwich panel and single layer sheet
Description

Product Description:

Quick Build Building Kits Assemble Metal Prefab Steel Warehouses

Application: steel structure, China steel structure , steel structure China ,steel warehouse, steel structure building, steel structure warehouse, steel workshop, steel structure workshop,hangar, sport hall, steel hall,shopping mall, cow shed, poultry house ,etc
Clear span:(width) 6~50m without middle column
Height 2~20m
Length as your requirement
Material Grade Q345(S355JR)or Q235(S235JR) steel or as request
Column & Rafter Welded or Hot rolled H beam
Tie beam round pipe or square tube or as request
X brace round steel bar, angle steel or as request
Purlin C purlin, Z purlin,thickness 2.0mm,2.2mm,2.5mm,3.0mm
sag rod steel round bar, angle, C purlin etc
Wall & Roof coverage single corrugated steel sheet (0.12~1.2mm)
EPS, Rock wool, glass fiber ,PU core foam sandwich Panel
(Thickness:50mm,75mm,100mm,150mm,200mm)
Gate Electric roller shutter door/Sliding door
Exit Door Plastic steel/Aluminum alloy swing door/ steel swing door
Window Plastic steel or Aluminum alloy frame
sliding window/ vent/top Hung window
Surface Shot blasting with anti rust paint rich-zinc epoxy paint etc
hot dip galvanize
Certificate ISO90001,CE EN1090 EXC2 ,IWE etc
Quality Control The third party ,SGS, QIMA, BV all accept

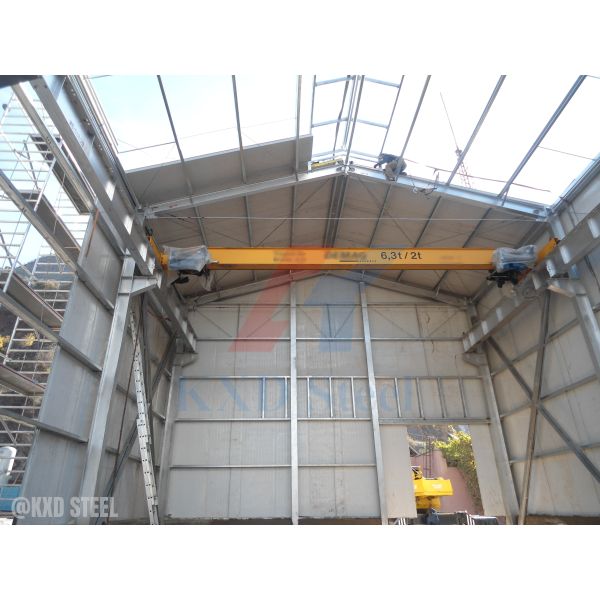

Crane 5MT, 10MT, 15MT, etc.
Other accessories gutter, flashing trimming cover, down spout, ventilation fitting,
skylight belt, bolt, anchor bolt, self tapping screw etc
Package main steel frame etc load in 40'OT,roof and wall panel load in 40'HQ!

Steel structure building is one kind of product which can be design as per every proples' different need. So,if you found that follows example pictures is not as same as your want, even it is very different.
Do not worried,


No matter which kind of building you need, prefabricated houses warehouse bigger, smaller or multi-storey, just tell me the data or drawing of building what you need.

We will make the exact design, quotation and rendering for you as soon as we can.

Quick Build Building Kits Assemble Metal Prefab Steel Warehouses

Technical Parameters:

Name Steel Structure Workshop/Warehouse
Dimensions Length H beam: 4000-15000mm
Thickness: web plate: 6-32mm
wing plate: 6-40mm
Height 200-2400mm
Color According to customers
Size MOQ is 200 m2, width * length * eave height,
Advantages 1. Lower cost but beautiful outlook.
2. High safety performance.
3. easy to assemble and dismantle
4. manufacture under complete quality control system---ISO9001
5. installation with instruction of experienced engineers
6. Non-pollution.
Main components Base Cement and steel foundation bolts
Main frame H beam
Material Q235B, Q345B or others as buyers' requests.
Purlin C or Z purlin: Size from C120~C320, Z100~Z200
Bracing X-type or other type bracing made from angle, round pipe
Bolt Plain bolt and High-strenth bolt
Roof & wall Sandwich panel or color plate
Door Sliding or rolling door
Window Aluminium alloy window
Surface Two lays of Anti-rust Painting or Hot Dip Galvanized
Sheet 0.5mm or 0.6mm galvanized sheet
Accessories Semi-transparent skylight belts, Ventilators,
down pipe, Glavanized gutter, etc
Usages 1. workshop, warehouse, plant
2. Steel web frame structure
3. Steel H-column and steel H-beam
4. Portal frame products
5. High rise building project
6. Others steel structure buildings
Packing Main steel frame without packing load in 40' OT,
roof and wall panel load in 40' HQ!
Drawing: According to drawings or according to customer ' s requirement.
Design Parameters If you need we design for you, please supply us the following parameter
together with detail size:
1) length, width, height, eave height, roof pitch, etc
2) wind load, snow load, raining condition, aseismatic requirements, etc
4) Demands for doors and windows
5)Other information if necessary
Quick Build Building Kits Assemble Metal Prefab Steel WarehousesQuick Build Building Kits Assemble Metal Prefab Steel WarehousesQuick Build Building Kits Assemble Metal Prefab Steel Warehouses

Applications:

The roof and wall thickness for the product is around 50mm, 75mm, 100mm, 120mm, 150mm, and 200mm. The beams used in the product are H Beams, and the raw steel material used is Q235B and Q355B. The purlin used in the product is galvanized C or Z type steel. The roof and wall cladding used in the product includes EPS, Glass Wool, Rock Wool, and PU.

KXD Steel Structure WH2766 is perfect for a wide range of product application occasions and scenarios. The product is perfect for use in automated warehouse solutions, cold room warehouses, and logistic centers. The steel structure warehouse is also perfect for use in manufacturing plants, storage facilities, and distribution centers. The product is ideal for use in industries such as automotive, food and beverage, agriculture, and retail.

Quick Build Building Kits Assemble Metal Prefab Steel WarehousesQuick Build Building Kits Assemble Metal Prefab Steel WarehousesQuick Build Building Kits Assemble Metal Prefab Steel Warehouses

Support and Services:

Our Steel Structure Warehouse product comes with comprehensive technical support and services to ensure that you get the most out of your purchase.

Our team of experts is available to provide assistance with installation, maintenance, and troubleshooting to help you overcome any challenges you may encounter.

In addition, we offer ongoing training and education to help you optimize the performance and longevity of your steel structure.

Whether you have questions about design, materials, or construction, we are here to help you every step of the way.

Our commitment to customer satisfaction means that we will work with you to identify and resolve any issues that may arise, providing prompt and effective solutions that minimize downtime and maximize productivity.

Trust us to be your partner in achieving success with our Steel Structure Warehouse product.

Quick Build Building Kits Assemble Metal Prefab Steel Warehouses

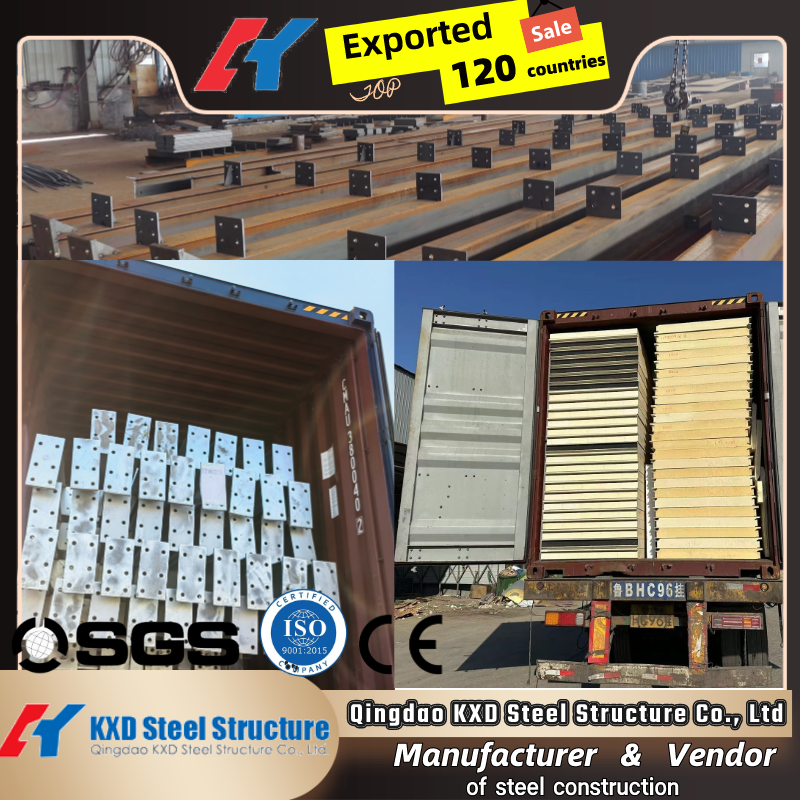

Packing and Shipping:

Product Packaging:

  • All components will be packed in steel pallets or wooden cases.
  • Roof and wall panels will be wrapped with plastic film to prevent scratches.
  • All bolts and screws will be put in small bags and labeled for easy identification.
  • The package will be reinforced with straps for safe transportation.

Shipping:

  • The steel structure warehouse will be shipped in containers by sea or by train.
  • The delivery time will vary depending on the destination and shipping method.
  • The customer will be notified of the estimated delivery time and provided with a tracking number.
  • Upon arrival, the customer should inspect the package for any damages before signing the delivery receipt.
  • If any damages are found, the customer should take pictures and contact the seller immediately for assistance.
  • Quick Build Building Kits Assemble Metal Prefab Steel WarehousesQuick Build Building Kits Assemble Metal Prefab Steel WarehousesQuick Build Building Kits Assemble Metal Prefab Steel Warehouses


FAQ:

Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to Qingdao port. And we have total 3 workshops from steel structure to wall and roof sheet.

Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.

Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.

Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity, partial shipment is allowed for big order.

Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.

Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
