Q355b Steel Structure Fabricated Industrial Warehouse Workshop For Sale

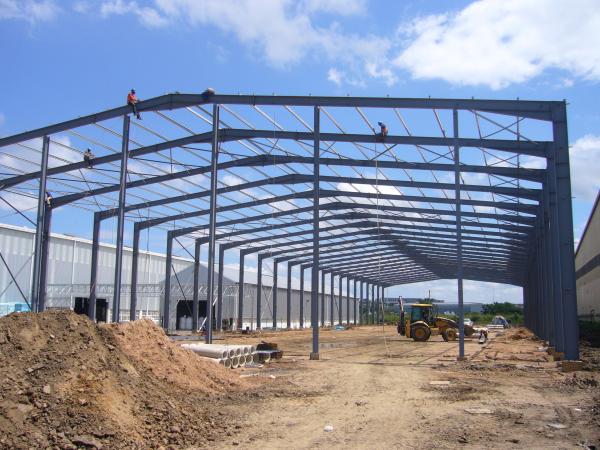

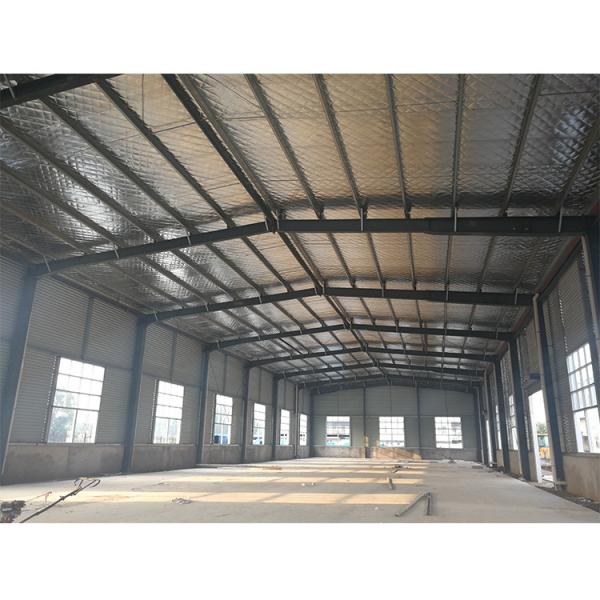

Steel Structure Workshop:
1) Different sizes:
MOQ is 100m2, width X length X eave height.
2) Different types:
Single slope;
double slope;
Sing span;
double-span;
Multi-span;
single floor, double floors.
3) Different Bases:
Cement and steel foundation bolts.
4) Different Columns and Beams:
Material Q345(S355JR) or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section.
5) Different bracings:
X-type or V-type or other type bracing made from angle, round pipe, etc.
6) Different Purlins:
C or Z type: Size from C120~C320, Z100~Z200.
7) Different Roof and Wall Panel:
Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide) or sandwich panel with EPS, ROCK WOOL, PU insulation thickness around 50mm~100mm.
8) All accessories:
Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc.
9) Surface:
Two lays of Anti-Rust Paint.
10) Packing:
Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ.

You ONLY need you to provide us with the following information:
Design Parameters:
1) Live load on roof (KN/M2);
2) Wind speed (KM/H);
3) Snow load (KG/M2) - If Applicable;
4) Earthquake load - If Applicable;
5) Style of Doors and Windows;
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure;
7) Size: width X length X eave height, roof slope;
8) Or your idea!
BUT maybe you are unsure about what type or what needs you have regarding you're warehouse/workshop, or this project is your first one. Don't worry, we will teach you to choose the right style and the finest design within your budget.

Generally speaking,our Steel structure warehouse/workshop are categorized as below:
