Specifications
Brand Name :
XGZ
Model Number :
H section steel
Certification :
ISO, CE,SGS
Place of Origin :
China
MOQ :
200 ㎡
Price :
50USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 pieces per month
Delivery Time :
Normally 30-45 Days After Shop Drawing Approved
Packaging Details :
customized
Surface Treatment of Steel Structure :
Painted or Galvanized
Material Grade :
Q345/Q355
Transport Package :
Steel Pallet
Software :
CAD, Tekla, Sketchup, Pkpm, Bim, etc
Connection Form :
Bolt Connection
Main Steel Frame :
H Steel, Z or C Purlin
Description

Galvanzing Painted Prefabricated Factory Produce Steel Structure Workshop

Product Introduce:

Prefabricated steel warehouse is made of main steel frame, brcaing patrs,wall caldding system, roof caldding system. It has fast construct, environmental friendly, high strength and long use life features.

1. Product Specifiactions

Main Patrs Item Parts Specifications

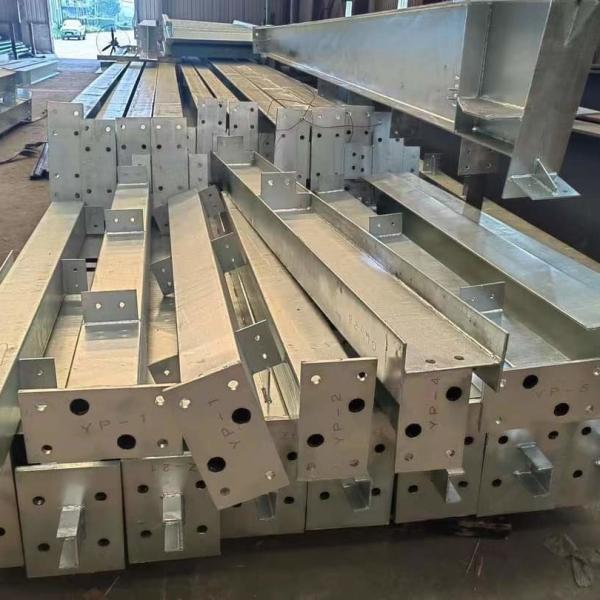

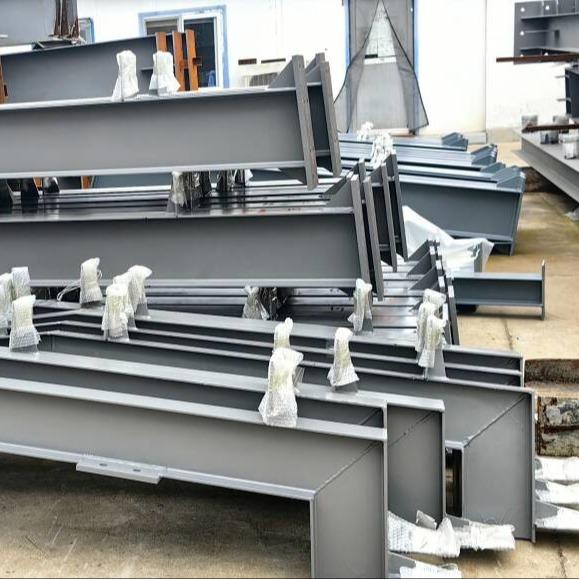

Main Steel Frame steel beam Q355B welded H type steel
steel column Q355B welede H type steel
Bracing Parts brace Q235B,Q345B round steel hot-dip galvanizing
roof purlin C or Z kind steel galvanizing
wall purlin C or Z kind steel galvanizing
roof EPS sandwich panel, fiber-galss sandwich panel, rock wall sandwich panel
wall EPS sandwich panel, fiber-glass sandwich panel, rock wall sandwich panel
Accessories bolts Ordinary bolts, anchor bolts, expansion bolts,baslet bolts
gutter Galvanized steel plate,stainless steel
windows alumium alloy glass window,aluminum alloy shutter window
doors sliding or rolling window
downpipe PVC pipe,PUC pipe
edge cover Color steel sheet,thickness is 0.5mm

Galvanzing Painted Steel Structure Workshop Prefabricated Steel Workshop Building

2.Main Materials

Galvanzing Painted Steel Structure Workshop Prefabricated Steel Workshop Building

3. Product Installation

We can send you install munual and videos to help you build the prefabricated steel structure. If you need the install guidence, we will teel our engineer to your country to help you.

Galvanzing Painted Steel Structure Workshop Prefabricated Steel Workshop Building

4. Product Production Process

We use advanced technology machine to product the produe for you.

Name Function
laser cutting machine 1.Laser vaporization cutting
2.Laser fusion cutting
3.Laser oxidation cutting
4.Laser scribing and controlled fracture
numerical controlled flame cutting machine With the digital program to drive the machine tool movement, equipped with the flame cutting system, the use of numerical control system to control the switch of the flame cutting system, the steel plate and other metal materials to cut
Gantry automatic submerged arc welding machine It is mainly used for submerged arc welding of H-shaped steel, with high degree of welding automation and simple and convenient operation. Welding head with vertical lifting, Angle adjustment and other functions.
point welding Spot welding is a kind of high-speed and economical connection method. It is suitable for the manufacture of stamped and rolled sheet members which can be bonded, the joints do not require airtight, and the thickness is less than 3mm. The solder is welded together at individual points on the contact surface of the joint. Spot welding requires metal to have good plasticity.
straightening machine A mechanical device used to correct bent or twisted metal materials into a straight shape
CNC surface drilling machine Mainly is steel structure, iron tower, iron beam, bridge, mechanical processing and other industries connecting plate, floor drilling processing

5.Our Worshop

Galvanzing Painted Steel Structure Workshop Prefabricated Steel Workshop Building

Galvanzing Painted Steel Structure Workshop Prefabricated Steel Workshop BuildingGalvanzing Painted Steel Structure Workshop Prefabricated Steel Workshop Building
