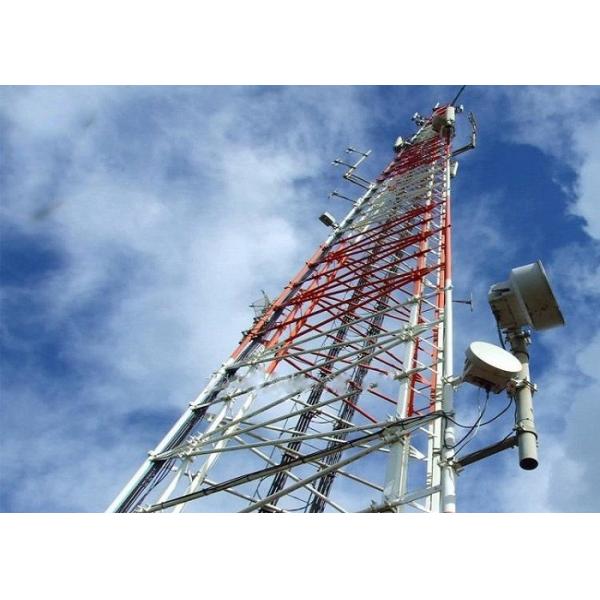

4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower
Specifications
Brand Name :
POWERUP
Model Number :
POWERUP-004
Certification :
ISO9001, ISO14001, ISO18001
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
3000Tons per month
Delivery Time :
26 working days after prepayment
Packaging Details :
Use steel belts and soft blanket to do packing, each bundle will be attached with packing list.
Material of Steel Tower :
Q235B, Q345B
Bolt Grade :
4.8S, 6.8S, 8.8S
Surface Treatment :
Painted or Hot-dip Galvanized
Color :
Silver
Apply For :
Communication
Height :
20m-180m
Wind Speed :
According to the design
Welding Standard :
AWS D1.1
Galvanizing According To :
ASTM A123
Description

1. Products

60m Q235B and Q345B 4-Leg Self-supporting Mobile Telecom Tower

2. Description

Our mobile telecom tower could be fabricated as per GB, EN or ASTM standard with high quality.

Product name Mobile Telecom Tower
Material Q235B, Q345B, Q420B
Height 20-180m
Wind speed According to the design
Surface treatment Hot-dip galvanized, painted
Lifetime More than 30 years

3. Technical Data

3.1 Design

Design Code ANSI/TIA-222-G/F
Design Wind Speed Up to 250 km/h
Allowable deflection 0.5 degree @ operational speed

3.2 Material Parameters

Structure Steel
High Tensile Steel Mild Steel
Grade GB1591: Q345B, Q345C,Q3455D GB700: Q235B, Q235C,Q235D
EN10025: S355JR, S355J0, S355J2 EN10025: S235JR, S235J0, S235J2
ASTM A572 Gr50 ASTM A36
Tension strength (Mpa) 470~630 Mpa 360~510 Mpa
Yield strength (t≤16mm) (Mpa) 355 Mpa 235 Mpa
Elongation (%) 20 24

3.3 Bolts&Nuts

Grade Grade 4.8, 6.8, 8.8
Standards for mechanical properties
Bolts ISO 898-1
Nuts ISO 898-2
Washers ISO 6507-1
Standards for Dimensions
Bolts DIN7990, DIN931, DIN933
Nuts ISO4032, ISO4034
Washers DIN7989, DIN127B, ISO7091

3.4 Marking

Method of marking of the members Hydraulic Press Stamping

3.5 Welding

Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Standard AWS D1.1

3.6 Galvanizing

Galvanization standard of steel sections ISO 1461 or ASTM A123
Galvanization standard of bolts and nuts ISO 1461 or ASTM A153

3.7 Capacity

Maximum Production Capacity of Steel Tower per annum 100,000 TON per annum
Maximum Capacity of Galvanizing Plant per annum 100,000 TON per annum

3.8 Test

Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test, Hammer tes

4. Quality control

100% inspection: Each member will be checked by our QC team to ensure all members are qualified before delivery.

5. Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

6. Experiences

Our products have been exported to more than 40 countries, such as Finland, Macedonia, Colombia, Venezuela, Chile, Cuba, Myanmar, South Korea, Kazakhstan, Pakistan, Philippines, India, Indonesia, Ethiopia, Sudan, Rwanda, Ghana, Benin, Nigeria, South Africa, UAE and Bahrain etc.

7. Our Commitment and target

Four ZEROs---Zero Quality Defect, Zero Quantity Shortage, Zero Delivery Delay, Zero Client Complaint

The following are some of mobile telecom towers photos for you to check:

1. Our Workshop:

4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower

2. Our Galvanizing Pool:

4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower

3. Do Trial-assembly Before Batch Production:

4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower

4. Our Packing:

4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower

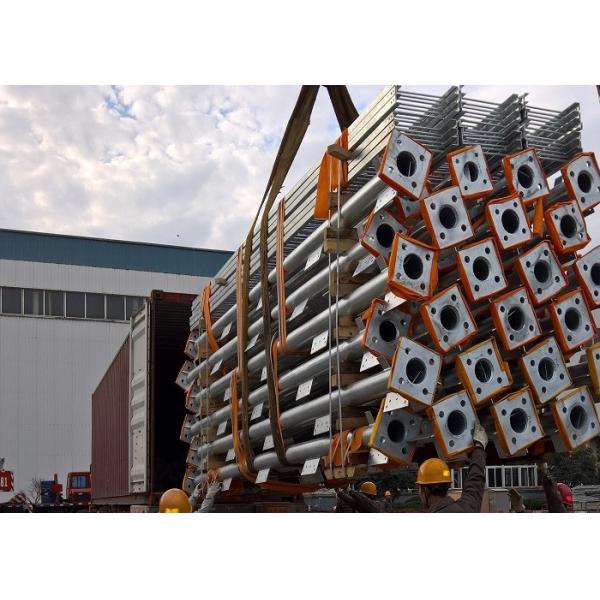

5. Our Loading:

4 - Leg Mobile Communication Tower , Self - Supporting 60m Wireless Cell Tower

If you have any inquiry about our mobile telecom towers or any other of our products, please feel free to contact me. We are sure to give you a competitve price and perfect quality. And welcome to visit our factory!
