Custom 150m Free Standing Tower , Steel Pole Antenna Tower 30 Years Lifetime

Specifications

Brand Name :

POWERUP

Model Number :

POWERUP-008

Certification :

ISO9001, ISO14001, ISO18001

Place of Origin :

China

MOQ :

1 Tower

Price :

Negotiation

Payment Terms :

L/C, T/T

Supply Ability :

3000Ton per Month

Delivery Time :

26 working days after prepayment

Packaging Details :

Use steel belts and soft blanket to do packing, each bundle will be attached with packing list.

Raw Material :

Q235B, Q345B, Q420B

Bolt Grade :

4.8S, 6.8S, 8.8S

Surface Treatment :

Hot-dip Galvanized, Painted

Galvanizing Standard :

ASTM A123

Tower Surface Color :

Silver

Tower Height :

5m-180m

Welding Standard :

AWS D1.1

Fabrication Certificate :

ISO9001-2018

Design Standard :

TIA-222G

Description

150m 3-leg or 4-Leg Self Supporting TV Antenna Tower With Hot-dip Galvanizing Surface Treatment

1. Description:

Qingdao Powerup International Trade Co., Ltd is professional in producing all kinds of steel towers and steel structure. TV antenna tower is one of our main products. Self Supporting TV Antenna tower is including 3-leg tower and 4-leg tower. The tower members adopts angle steel or tubular steel, the structure performance is stable, the wind resistance is strong, and the tower body cross section is quadrilateral. Self Supporting TV Antenna Tower includes tower foot, tower body, platform, antenna bracket, ladder, cable tray, lightning rod, connecting plate, bolt and navigation light.

2. Quick Detail:

a. TV Antenna Tower could be fabricated as per GB, EN or ASTM standard with high quality.

b. Steel Material: Q235B, Q345B, Q420B.

c. Height: 5-180m.

d. Wind speed: according to the design.

e. Surface treatment: hot-dip galvanized, painted

f. Lifetime: More than 30 years

3. Technical Data

3.1 Design

Design Code	ANSI/TIA-222-G/F
Design Wind Speed	Up to 250 km/h
Allowable deflection	0.5 degree @ operational speed

3.2 Material Parameters

Structure Steel
	High Tensile Steel	Mild Steel
Grade	GB1591: Q345B, Q345C,Q3455D	GB700: Q235B, Q235C,Q235D
	EN10025: S355JR, S355J0, S355J2	EN10025: S235JR, S235J0, S235J2
	ASTM A572 Gr50	ASTM A36
Tension strength (Mpa)	470~630 Mpa	360~510 Mpa
Yield strength (t≤16mm) (Mpa)	355 Mpa	235 Mpa
Elongation (%)	20	24

3.3 Bolts&Nuts

Grade	Grade 4.8, 6.8, 8.8
Standards for mechanical properties
Bolts	ISO 898-1
Nuts	ISO 898-2
Washers	ISO 6507-1
Standards for Dimensions
Bolts	DIN7990, DIN931, DIN933
Nuts	ISO4032, ISO4034
Washers	DIN7989, DIN127B, ISO7091

3.4 Marking

Method of marking of the members

Hydraulic Press Stamping

3.5 Welding

Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Standard	AWS D1.1

3.6 Galvanizing

Galvanization standard of steel sections	ISO 1461 or ASTM A123
Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

3.7 Capacity

Maximum Production Capacity of Steel Tower per annum	100,000 TON per annum
Maximum Capacity of Galvanizing Plant per annum	100,000 TON per annum

3.8 Test

Factory test

Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test, Hammer tes

4. Quality control

100% inspection: Each member will be checked by our QC team to ensure all members are qualified before delivery.

5. Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

6. Experiences

Our products have been exported to more than 40 countries, such as Finland, Macedonia, Colombia, Venezuela, Chile, Cuba, Myanmar, South Korea, Kazakhstan, Pakistan, Philippines, India, Indonesia, Ethiopia, Sudan, Rwanda, Ghana, Benin, Nigeria, South Africa, UAE and Bahrain etc.

7. Our Commitment and target

Four ZEROs---Zero Quality Defect, Zero Quantity Shortage, Zero Delivery Delay, Zero Client Complaint

The below are some of our photos for you to check:

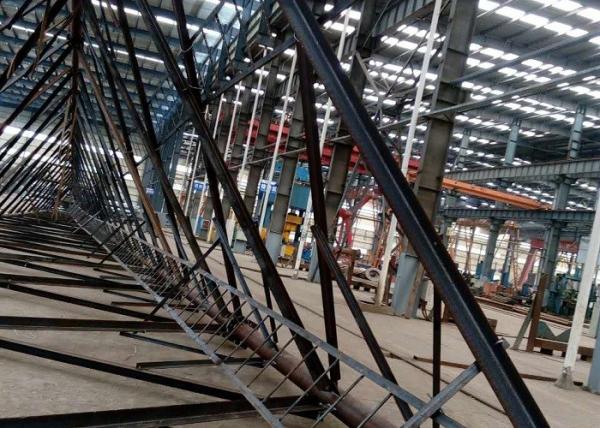

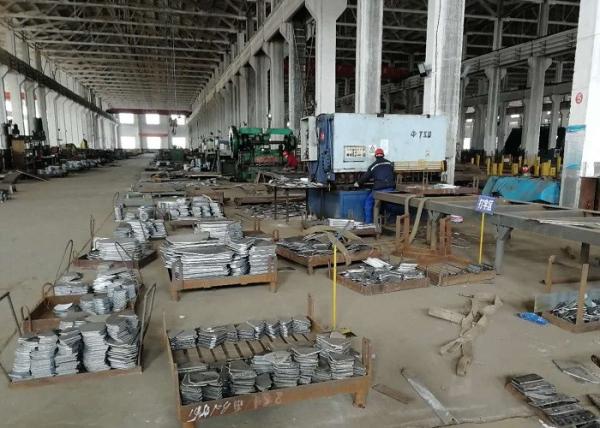

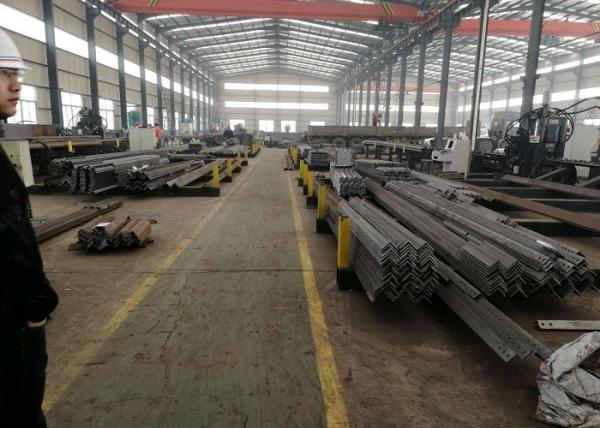

1. Our Factory:
