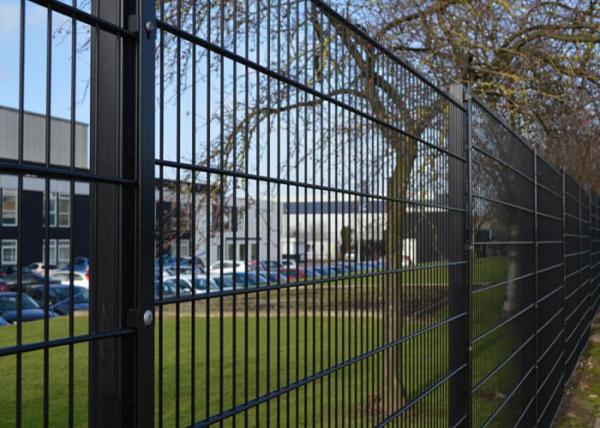

Double Rod Welded Wire Fence Panels Height 1600mm Metal Wire Mesh Fence
Double Rod Welded Wire Fence Panels Height 1600mm Metal Wire Mesh Fence
Double Rod Welded Wire Fence Panels Height 1600mm Metal Wire Mesh Fence
Double Rod Welded Wire Fence Panels Height 1600mm Metal Wire Mesh Fence
Specifications
Brand Name :
Anlon
Model Number :
HBDQDWF02
Certification :
ISO9001:2008
Place of Origin :
Hebei China
MOQ :
250 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Set Per Week
Delivery Time :
10 --15 Days
Packaging Details :
200 PCs Per Pallet
Surface Treatment :
PVC coated Or Galvanized
Mesh Size :
50X150mm 50X200MM
Mesh Diameter :
8mm 6mm 8mm 6mm 5mm 6mm
Panel Height :
1030mm 1230mm 1530mm 1830mm
Panel Width :
2000mm 2200mm 2400mm
Peach Post :
50X70MM 70X100mm
Zinc coated :
40--500G
Color :
Green, Red. Black. Yellow
Description

Pvc coated twin wire Double rod welded wire 868 fence panel Height 1600mm With Square Post 50mm

656 welded wire mesh fence


Our 656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.
Mesh openings: 200mm x 50mm.
Panel Heights: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm, 3030mm
Panel Width: 2010mm or 2510mm
Panel Coating Finish : Galvanized or Polyester Powder Coated

868 welded wire mesh fence


868 twin wire mesh offers the same mesh panel as the 656, but with even greater strength by incorporating double 8mm horizontal with the single 6mm vertical wires.
Mesh openings: 200mm x 50mm.
Panel Heights: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm
Panel Width: 2010mm or 2510mm
Panel Coating Finish : Galvanized or Polyester Powder Coated

Fence Post:

system usually choose Square Post ( 60*60mm), Rectangular Post (80*60*2.5mm) with the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

Type
Profile
Wall Thickness
Surface Treatment
Length
Rain hat
RHS post
60*40mm
2.0mm
Galvanized and
Electrostatic Polyester coated
2400
2600
2800
3000
3500
Plastic
or

metal
80*60mm
2.5mm
Peach post
70*100mm
1.5mm
SHS post
60*60mm
1.5mm,2.0mm, 2.5mm
80*80mm

Double Wire Fence Panel
Height
x Width (Panel)
mm		 Mesh Size
mm.		 Wire Diameter Post of Height
mm
Wire Dia
mm		 Wire Dia
mm		 Wire Dia
mm
630*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1100
830*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1300
1030*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1500
1230*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1700
1430*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1900
1630*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2100
1830*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2400
2030*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2600
2230*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2800
2430*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 3000

868 Doubel Wire Fence Panel Features:


Anti-cut-through, double wire mesh panels


Wide range of height options


Range of wire mesh sizes


RAL colours available
