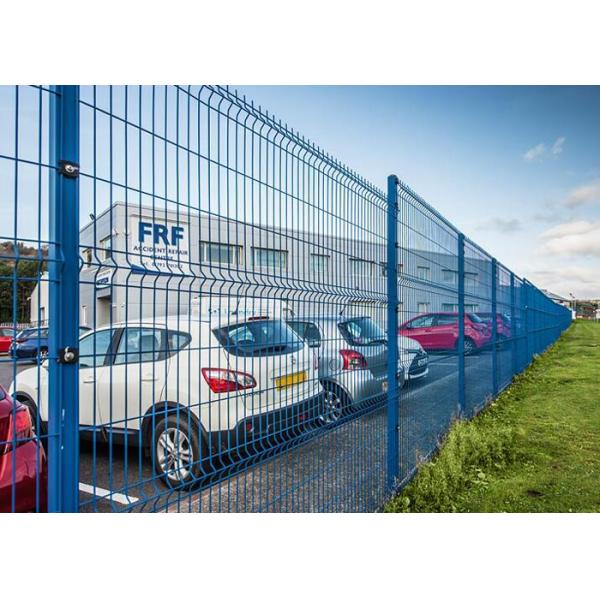

Doubel Weft 868 Fence Panel Mesh 50X150MM With Square 50MM Post
Doubel Weft 868 Fence Panel Mesh 50X150MM With Square 50MM Post
Doubel Weft 868 Fence Panel Mesh 50X150MM With Square 50MM Post
Doubel Weft 868 Fence Panel Mesh 50X150MM With Square 50MM Post
Specifications
Brand Name :
Anlon
Model Number :
HBDQDWF02
Certification :
ISO9001:2008
Place of Origin :
Hebei China
MOQ :
250 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Set Per Week
Delivery Time :
10 --15 Days
Packaging Details :
200 PCs Per Pallet
Surface Treatment :
PVC coated Or Galvanized
Mesh Size :
50X150mm 50X200MM
Mesh Diameter :
8mm 6mm 8mm 6mm 5mm 6mm
Panel Height :
1030mm 1230mm 1530mm 1830mm
Panel Width :
2000mm 2200mm 2400mm
Peach Post :
50X70MM 70X100mm
Zinc coated :
40--500G
Color :
Green, Red. Black. Yellow
Description

Doubel Weft 868 Fence Panel Mesh 50X150MM With Square 50MM Post

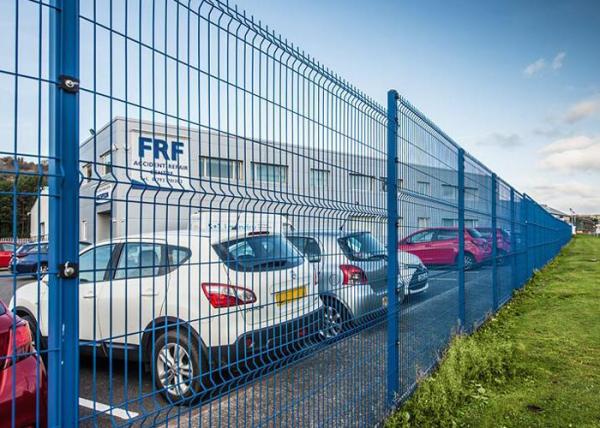

Galvanized perimeter fence also called twin wire mesh fence, it is extremely rigid mesh fence system with a flat appearance, double horizontal wire 6.0mm or 8.0mm welded to 4.0mm, 5.0mm or 6.0mm wire.

656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.
868mesh consists of double 8mm horizontal wires together with single 6mm vertical wires.

The twin-wire mesh fence often used as a premier fence for school play ground ,industry fencing where the conditions a rather strong mesh system is Indispensable.The double wire mesh fence take high quality low carbon steel wire as raw materials compared with traditional mesh fence.

Double Wire Fence Panel
Height
x Width (Panel)
mm		 Mesh Size
mm.		 Wire Diameter Post of Height
mm
Wire Dia
mm		 Wire Dia
mm		 Wire Dia
mm
630*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1100
830*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1300
1030*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1500
1230*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1700
1430*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 1900
1630*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2100
1830*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2400
2030*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2600
2230*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 2800
2430*2500 50*200 8*2 + 6 6*2 + 5 6*2 + 4 3000

Standard colours,we use the famous -world powder -AKZO NOBEL Powder

  • RAL 6005(standard)
  • RAL 6009
  • RAL 7016(standard)
  • RAL 9005

868 Fence Panel Long service life

  • Double horizontal wires
  • The quality is the result of high grade raw materials and meticulous processing
  • Extremely high resistance to vandalism combined with excellent visibility through the fence
  • A long service life with little or no maintenance required is its best feature

Doubel Weft 868 Fence Panel Mesh 50X150MM With Square 50MM Post
