Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM
Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM
Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM
Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM
Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM
Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM
Specifications
Brand Name :
Anlon
Model Number :
HBDQFP01
Certification :
ISO9001:2008
Place of Origin :
Hebei China
MOQ :
200 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set Per Week
Delivery Time :
10 --15 Days
Packaging Details :
In steel pallet or in bulk
Surface :
Galvanized / Pvc coated
Pipe Type :
Round Pipe Square Pipe Oval Tube.
Vertical Pipes :
40x40mm 50X50mm
Horizontal Tube :
40x80mm 30X70MM
Panel Length :
2.0M 2.2M 2.4M 3.0M 3.6M
Rail No :
5 Rail or 6 Rail In Middle
Bracket :
2 or 3
Weight :
18KG --26KG
Description

Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM

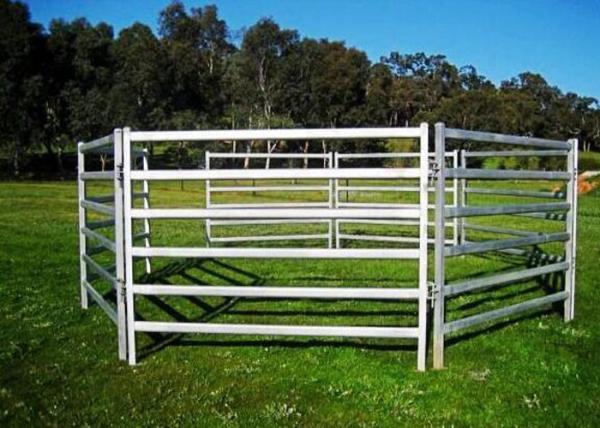

Livestock Fence Metal Panels are made from heavy duty galvanized steel tubes, which are welded together by vertical posts and horizontal rails to form a sturdy structure. A horse arena or pen can be formed with pieces of panels jointed with accessories. Horse panels are easy to install and dismantle.

sheep panels Detailed Description

  • -1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
  • -Complete with Caps & Foot plates.
  • -Holes for ground pin on one leg of each panel.
  • -Elongated lug holes in brackets, for ease when connecting.
  • Cattle yard panel is made of square ,oval, or round tube
  • Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM

Specification of sheep panels

  • Panel size: 2.1W x 1.8H x 6 Rails.
  • Panel posts & rails: 42mm galvanised round tube with weather caps & feet on the top and bottom of each post.
  • Gate in Frame size: 2.1W x 2.3H with a 6 rail hinged gate.
  • Gate in frame material: 42mm galvanised round tube.
  • Gate closure inside the frame: a chain in slot piece.
  • Once assembled the space between the panels and panels and gate is only 50mm which prevents the horse from getting its' hoof through or stuck between the panels and/or panels and gate.
  • Additionally the panels and gate have six rails each which makes it nearly impossible for the horse to slide its' head between rails.

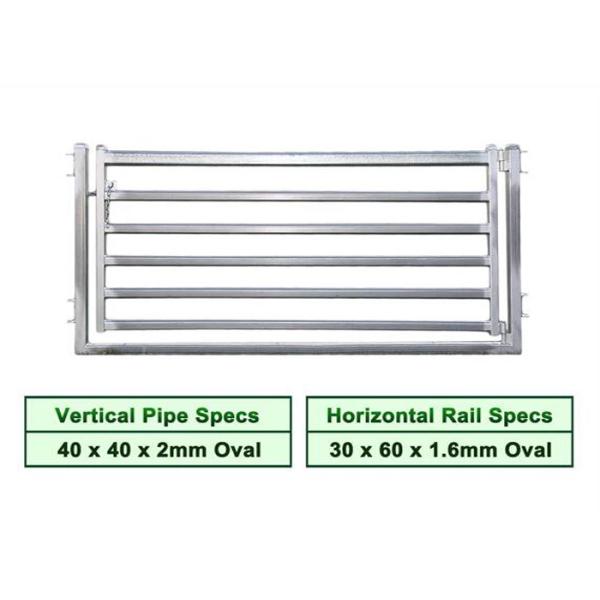

Material pre hot dipped galvanized steel pipe
Finishing(zinc coating) more than 15 microns
HeightxLength 1800mm x 2100mm
Vertical pipe

50 x 50mm x 1.6mm thickness

40 x 40mm x 1.6mm thickness
Horizontal rails

40 x 80mm x 1.6mm thickness

30 x 60mm x 1.6mm thickness
Welding Fully welded post brackets

Pre Hot Dipped Galvanized Sheep Cattle Panels Livestock Fence Panels 5Rails With Oval Tube 30X60MM

As a professional livestock fence products manufacturer for over 10 years, we aware that if a farmer wants to run a cattle yard easily, only panels are not enough for them.


We did lots of market research, went abroad to visit our customers and listened to their advice& recommendations.

Today our livestock products covers a wide range, from cattle panel gate, man gate, sliding gate, hay feeder, rotary gate, loading ramp to cattle crush.
