Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Oval Tube Cow Fence Panel
Specifications
Brand Name :
Alon
Model Number :
DQ-04
Certification :
ISO9001:2008
Place of Origin :
Hebei,China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
10000 sets per month
Delivery Time :
about 7-15days after receive the deposit
Packaging Details :
In pallet
Materials :
Galvanized steel Pipe
Panel Size :
1.8*2.1m, 1.6*2.1m,1.8x2.4m etc
Vertical Pipe :
40X40mm,50X50mm
Horizonal Pipes :
30x60mm,80x40mm,
Thickness :
1.5mm,2.0mm
Bars/Rails :
5 rails,6rails
Assessories :
With lugs,caps and pins
Pipe Type :
Round Pipe, Oval pipe, Square Pipe
Description

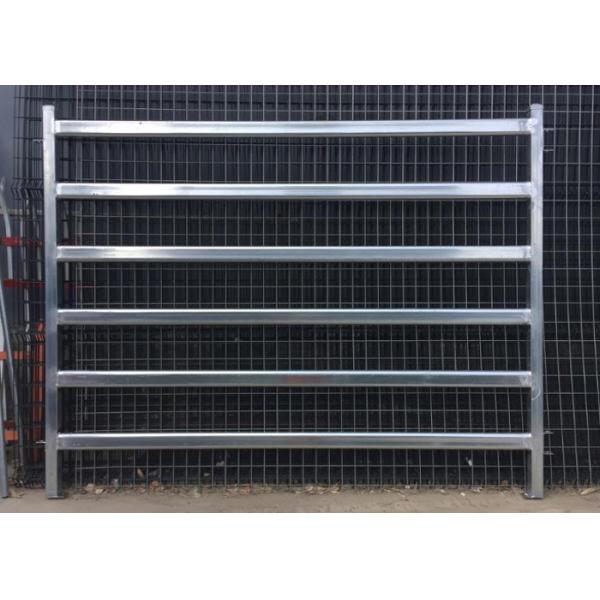

Hot Dipped Galvanized Oval Tube Cow Fence Panel 40X80MM Pipe With 6 Rail In the Middle

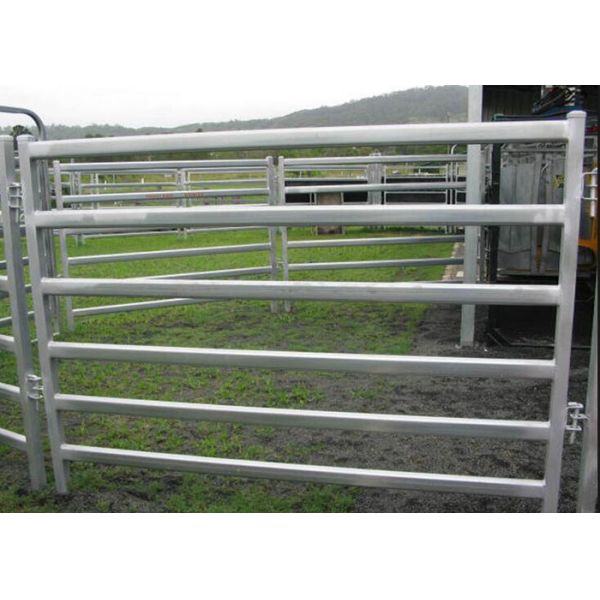

Cattle panel is made of square, oval or round tube, it is mainly used as portable or

permanent fencing. The fence panels are offered in a variety of heights, lengths, and

number of rails .the fence panels are appealing, safe, easy to install and extremely long

lasting, good for permanent feedlot dividers ,pens, horse round pens and arenas, portable

horse stalls, perimeter/line fencing and a variety of other uses.

Specifications

square tube style

Material pre hot dipped galvanized steel pipe
finishing(zinc coating) mor than 15 microns
Height x Length 1800mm x 2100mm
vertical pipe 50 x 50mm RHS x 1.6mm thickness,40 x 40mm RHS x 1.6mm thickness
horizontal rails 50 x 50mm RHS x 1.6mm,40 x 40mm RHS x 1.6mm(6 square rails)
Welding Fully welded post brackets
welds bull bars are fully welded, each weld is protected with epoxy paint

Oval Tube Cow Fence Panel

oval tube style

Material pre hot dipped galvanized steel pipe
finishing(zinc coating) mor than 15 microns
Height x Length 1800mm x 2100mm
vertical pipe 50 x 50mm RHS x 1.6mm,40 x 40mm RHS x 1.6mm
horizontal rails 30x60mm oval rail x 1.6mm,40x80mm oval rail x 1.6mm,40x120mm oval rail x 1.6mm(6 oval rails)
Welding Fully welded post brackets
welds bull bars are fully welded, each weld is protected with epoxy paint

Oval Tube Cow Fence Panel

Feature of corral panels

1. Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.


2. Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel

more stronger; heavy duty and anti-broken; high zinc or PVC coated make the fence durable.


3.Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or

lay foundations. And it benefit grassland protection.


4.Livestock Protection: no sharp edge, very smooth welding spot finish.


5.Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.

Rail Type Square Oval Round
Vertical Post x 2 40 x 40mm x 1.6mm / 2mm 50 x 50mm x 1.6mm 32mm OD x 2 mm
50 x 50mm x 2mm 50 x 50mm x 2mm 42mm OD x 2 mm
60 x 60mm x 2mm 60 x 60mm x 3mm 42mm OD x 2 mm
Horizontal Rail x 5/6 40 x 40mm x 1.6mm / 2mm 60 x 30mm x 1.6mm 32mm OD x 1.6mm
50 x 50mm x 2mm 80x 40mm x 2mm 32mm OD x 2mm
60 x 60mm x 2mm 115x 42mm x2mm 42mm OD x 2mm
Rail Oval Tube Cow Fence Panel
